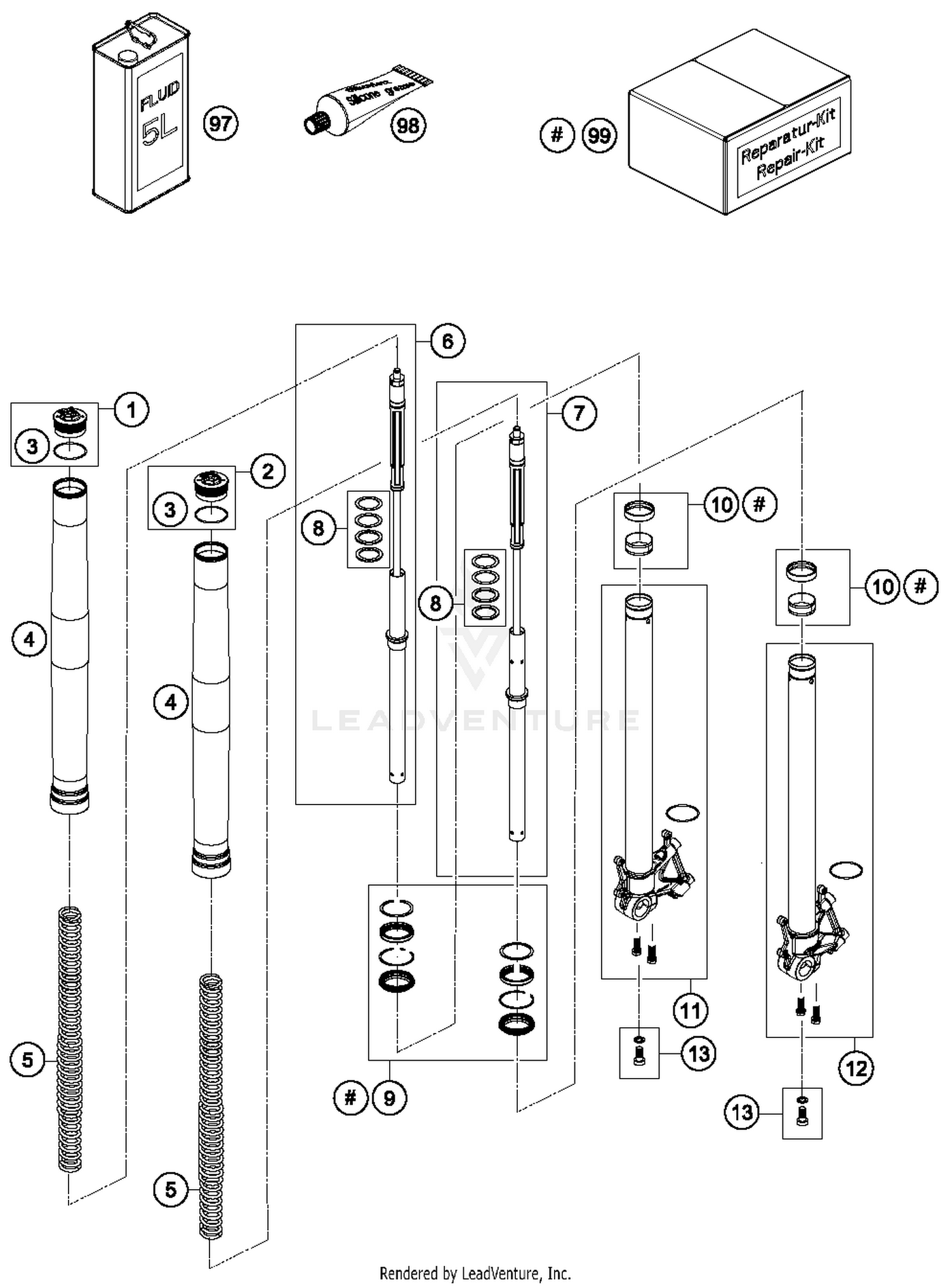

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW CAP M51X1.5 REB
48600431E3
Superseded by 48600431S3
|
$142.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW CAP M15X1.5 COM
48600431E4
Superseded by 48600431S4
|
$129.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-ring 45x2 NBR70 siliconized
46810340
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
Fork outer tube 49,13x600 dt54 db60
48601174
|
$459.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
Mainspring (38,2) 65-555 fork
95010082
|
$319.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
Insert right cpl.
48601728S1
|
$541.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
Insert left cpl.
48601729S1
|
$541.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
REP. KIT SPACER
R14054
Superseded by R14054T
|
$21.00 | ||
|
Unavailable |
|||
|
#9
Seal kit 48mm SKF black
R14040
Superseded by RP10048T
|
$78.53 | ||
|
Unavailable |
|||
|
#10
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE CLAMP WITH INNER TUBE
48601305S1
|
$698.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
AXLE CLAMP WITH INNER TUBE
48601304S1
|
$698.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
AH SCREW M10X20 SET
00501020S1
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#97
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork repair kit 48mm offroad
R14063
|
$192.77 | ||
|
Unavailable |
|||
