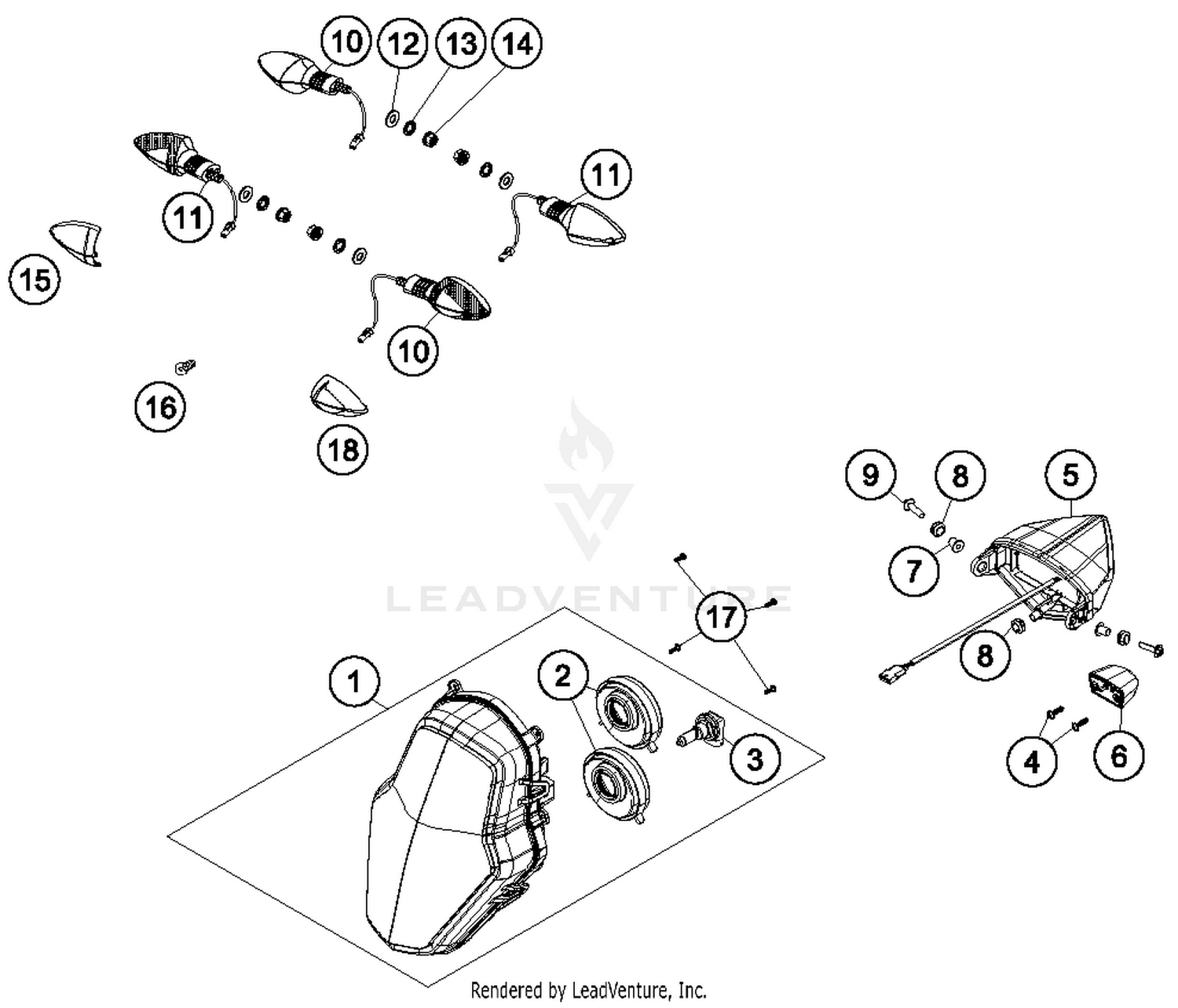

Lighting System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD LIGHT TFL
60314001100
|
$661.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP H11
60314001050
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
LAMP H11 12V 55W
60314003000
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
EJOT PT screw K50x12
0081050121
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rear light
60314040100
|
$137.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
license plate lighting
60314047000
|
$41.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR BUSHING 6,2X9,2X15X12,5
60308006000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
rubber grommet 9x11x16x8.5 mm
60006001022
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH COLLAR SCREW M6X25 TX30
0024060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLASHER CPL.FRONT L/S REAR R/S
78114025000
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLASHER CPL.FRONT R/S REAR L/S
78114026000
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER 18x10,5x1,6
0433100003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK WASHER DIN6797-J10,5 ZI
0797100003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLASHER LENS L/S R/S TRANSP.
78114028000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB 12V ORANGE (RY10W)
60114027000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW FOR PLASTIC K45X12 T20
0081045121
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLASHER LENS FRO.L/S-REAR R/S
78114027000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
