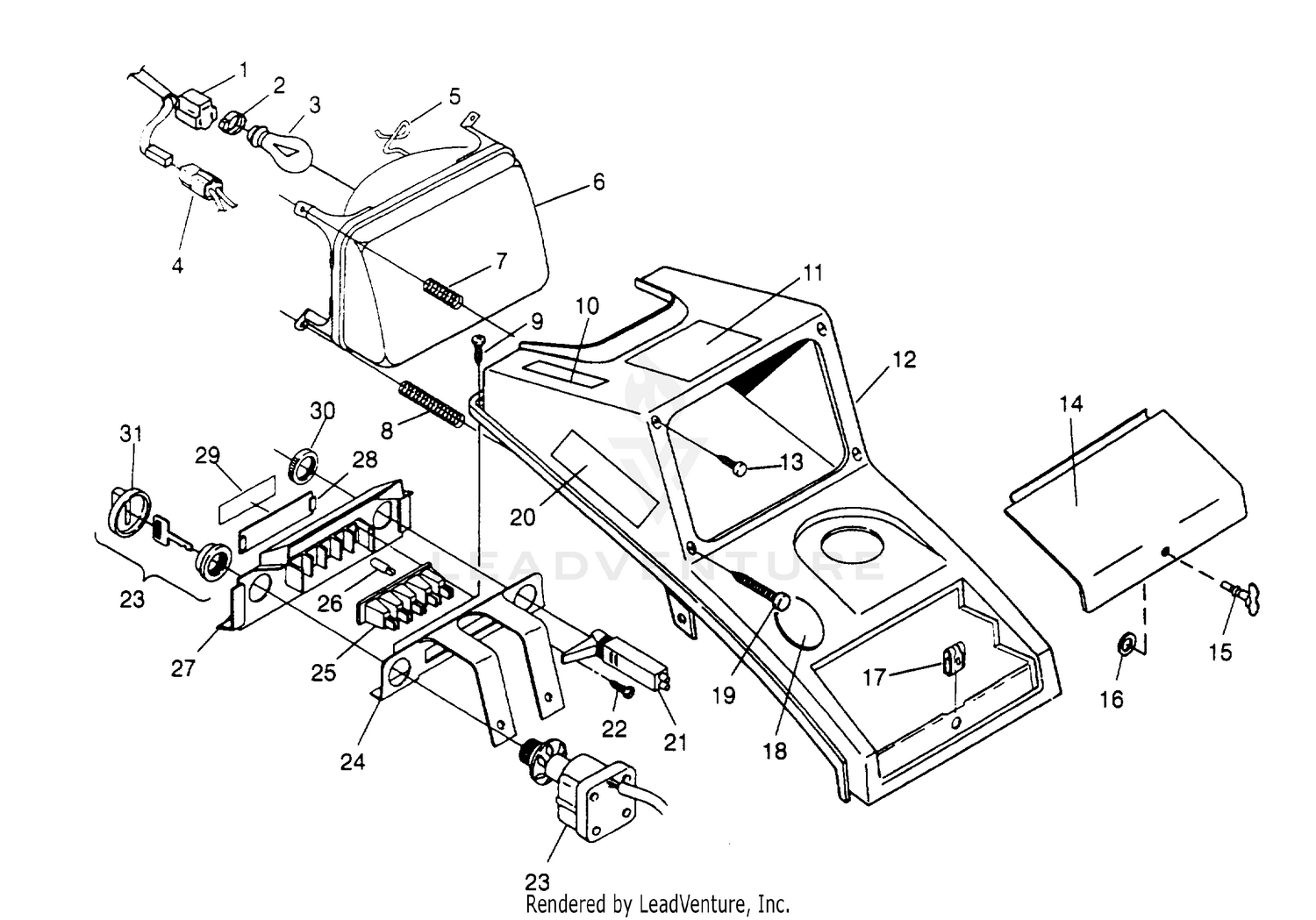

Headlight Assembly 6x6 400l W948740 (4926802680a014) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, HEADLIGHT
2460424
|
|||
|
Unavailable |
|||
|
#2
COVER,SOCKET,H/L.
4032066
|
|||
|
Unavailable |
|||
|
#3
BULB, H/L
4030028
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HSG,DUAL,FEMALE
4040024
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETAINER,H/L BULB
4032063
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
H/L ASM,W/BULBSEAL
4032065
|
|||
|
Unavailable |
|||
|
#7
SPRING-ADJ
4032002
|
$15.49 | ||
|
Unavailable |
|||
|
#8
SPRING,ADJ.
4032041
|
|||
|
Unavailable |
|||
|
#9
SCREW(10)
7512017
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DECAL,WARN,(DEMAND 6 SW.) Substituted by 7074935
7073163
|
|||
|
Unavailable |
|||
|
#11
DECAL,CERTIF,(6-WHL.)
7074199
|
|||
|
Unavailable |
|||
|
#12
COVER,OIL TANK&H/L
5431202-132
|
|||
|
Unavailable |
|||
|
#13
Screw
4032003
Superseded by 7518157
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DOOR,ACCESS,GRAY,STG.
5431201-132
|
|||
|
Unavailable |
|||
|
#15
FASTENER, 1/4 TURN(10)
7670064
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING,SPLIT RETAINER(10)
7670065
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RECEPTACLE,CLIP-ON(10)
7670066
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOGO,"40 YEARS"
7074695
|
|||
|
Unavailable |
|||
|
#19
SCREW,ADJUST,(ATV)(10)
4032042
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Decal - "Polaris", Side Panel
-------
|
|||
|
Unavailable |
|||
|
#21
KIT-CHOKE CONTROL
2200188
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, CHOKE
7080371
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, SEM(10)
7511862
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH, IGNITION
4110140
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT, IGN. PANEL
5220965-067
|
|||
|
Unavailable |
|||
|
#25
STRIP, SOCKET
4032037
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BULB
4030042
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PANEL, IGNITION
5430995
|
|||
|
Unavailable |
|||
|
#28
LENS ASM,PILOT LIGHT
2652049
|
$43.39 | ||
|
Unavailable |
|||
|
#29
DECAL, PANEL [No Longer Available]
7072528
|
|||
|
Unavailable |
|||
|
#30
NUT
7080229
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Cover-Key
5431964
Superseded by 5433534
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
