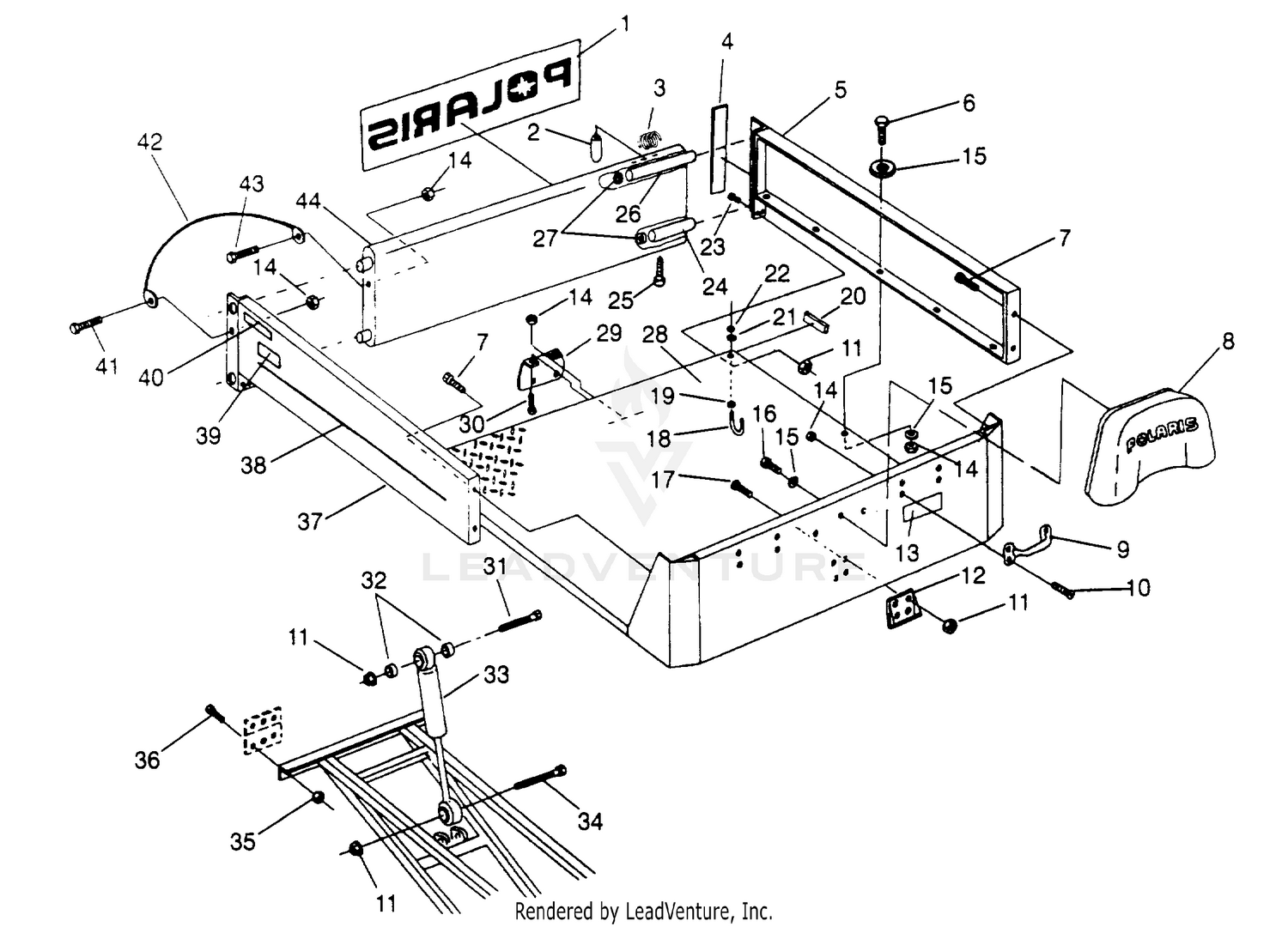

Rear Bed Mounting 6x6 400l W948740 (4926802680a008) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DECAL, 'POLARIS'
7073862
|
|||
|
Unavailable |
|||
|
#2
HANDLE, TAILGATE
5431524
|
|||
|
Unavailable |
|||
|
#3
SPRING,COMP,T'GATE LATCH
7041302
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PANEL,LH SIDE,RED
1040281-093
|
$92.99 | ||
|
Unavailable |
|||
|
#6
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW(10)
7512208
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BACKREST ASM,STL.GRY. Substituted by 2682346-132
2681658-132
|
|||
|
Unavailable |
|||
|
#9
HANDLE, GRAB, RED
7030011-093
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LATCH, BOX, RED
1040192-093
|
|||
|
Unavailable |
|||
|
#13
DECAL(CPSC),WARN,RIDER [No Longer Available]
7072766
|
|||
|
Unavailable |
|||
|
#14
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT(10)
7512103
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt, Carriage
7512394
Superseded by 7512377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
U-BOLT(10)
7515137
|
|||
|
Unavailable |
|||
|
#19
NUT HEX(10)
7542105
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
REFLECTOR ASM,RED
2670133
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Unavailable |
|||
|
#22
NUT HEX-LOCK(10)
7542101
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW(10)
7515314
|
|||
|
Unavailable |
|||
|
#24
ROD, PIVOT
5020662
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW(10)
7512164
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD,PIVOT,TOP
5020693
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING(10)
7555824
Superseded by 7555828
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BED WELD, RED
1040280-093
|
|||
|
Unavailable |
|||
|
#29
BRACKET,T/L MOUNT
5240244-067
|
|||
|
Unavailable |
|||
|
#30
SCREW(10)
7512113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT(10)
7512392
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER
5333170
|
|||
|
Unavailable |
|||
|
#33
SHOCK, DUMPBOX
7041301
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW(10)
7515306
Superseded by 7515352
|
$2.49 | ||
|
Unavailable |
|||
|
#35
NUT,FLANGE LOCK(10)
7542449
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW(10)
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PANEL,RH,SIDE,RED
1040282-093
|
|||
|
Unavailable |
|||
|
#38
DECAL,ROLL,1/2"W.(1/4"BLUE) Substituted by 7073872
8330294
|
|||
|
Unavailable |
|||
|
#39
DECAL, BOX,(6X6)
7073868
|
|||
|
Unavailable |
|||
|
#40
DECAL,'POLARIS'SIDEPANEL
7073812
|
|||
|
Unavailable |
|||
|
#41
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CABLE, TAILGATE
7080496
|
|||
|
Unavailable |
|||
|
#43
SCREW
7512239
Superseded by 7517377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
TAILGATE, RED
1040283-093
|
$175.99 | ||
|
Unavailable |
|||
