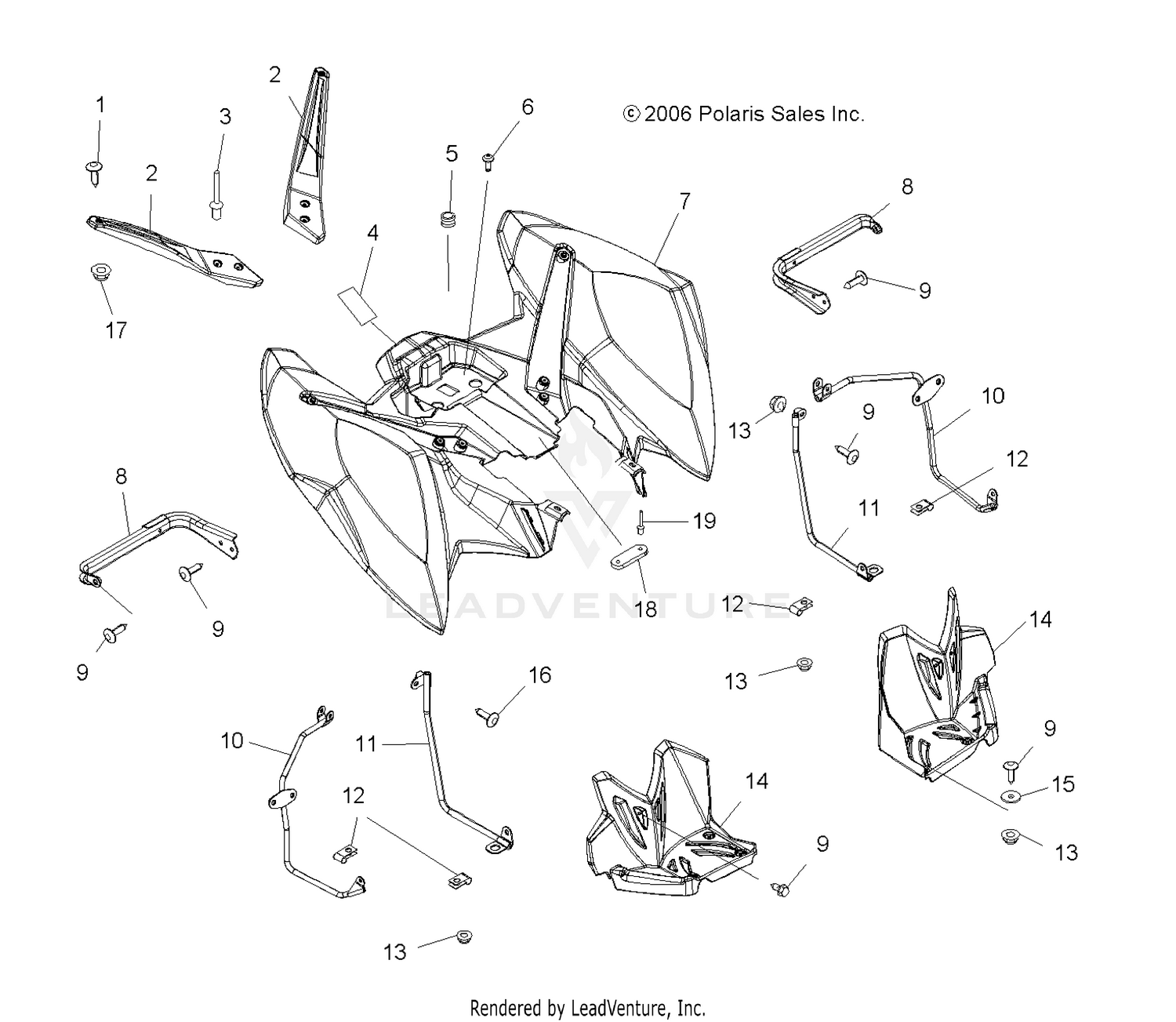

Cab, Rear - A07gp50aa/ab (49atvcabrroutlaw) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7517455
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Rear Cab, LH, Black
5436302-070
|
$42.39 | ||
|
Unavailable |
|||
|
#2
Support, Rear Cab, RH, Black
5436303-070
|
|||
|
Unavailable |
|||
|
#3
Rivet
7661046
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Foil, Tape
5813065
|
|||
|
Unavailable |
|||
|
#5
GROMMET
5412507
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cab, Rear, Bright White
5436137-133
|
$383.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cab, Rear, Black Metallic
5436137-177
|
$579.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Support, Rear Cab
1015348-067
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bolt
7518656
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Support, Heel Pocket, Out, LH, Matte' Black
1015346-458
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Support, Heel Pocket, Out, RH, Matte' Black
1015347-458
|
|||
|
Unavailable |
|||
|
#11
Support, Heel Pocket, In, LH, Matte' Black
1015079-458
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Support, Heel Pocket, In, RH, Matte' Black
1015080-458
|
|||
|
Unavailable |
|||
|
#12
Clamp
7081355
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pocket, Heel, LH, Black
5436188-070
|
$42.39 | ||
|
Unavailable |
|||
|
#14
Pocket, Heel, RH, Black
5436189-070
|
|||
|
Unavailable |
|||
|
#15
Washer
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt, Flange
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Nut, Nylok, Flange
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Strap
5436593
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rivet
7661922
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
