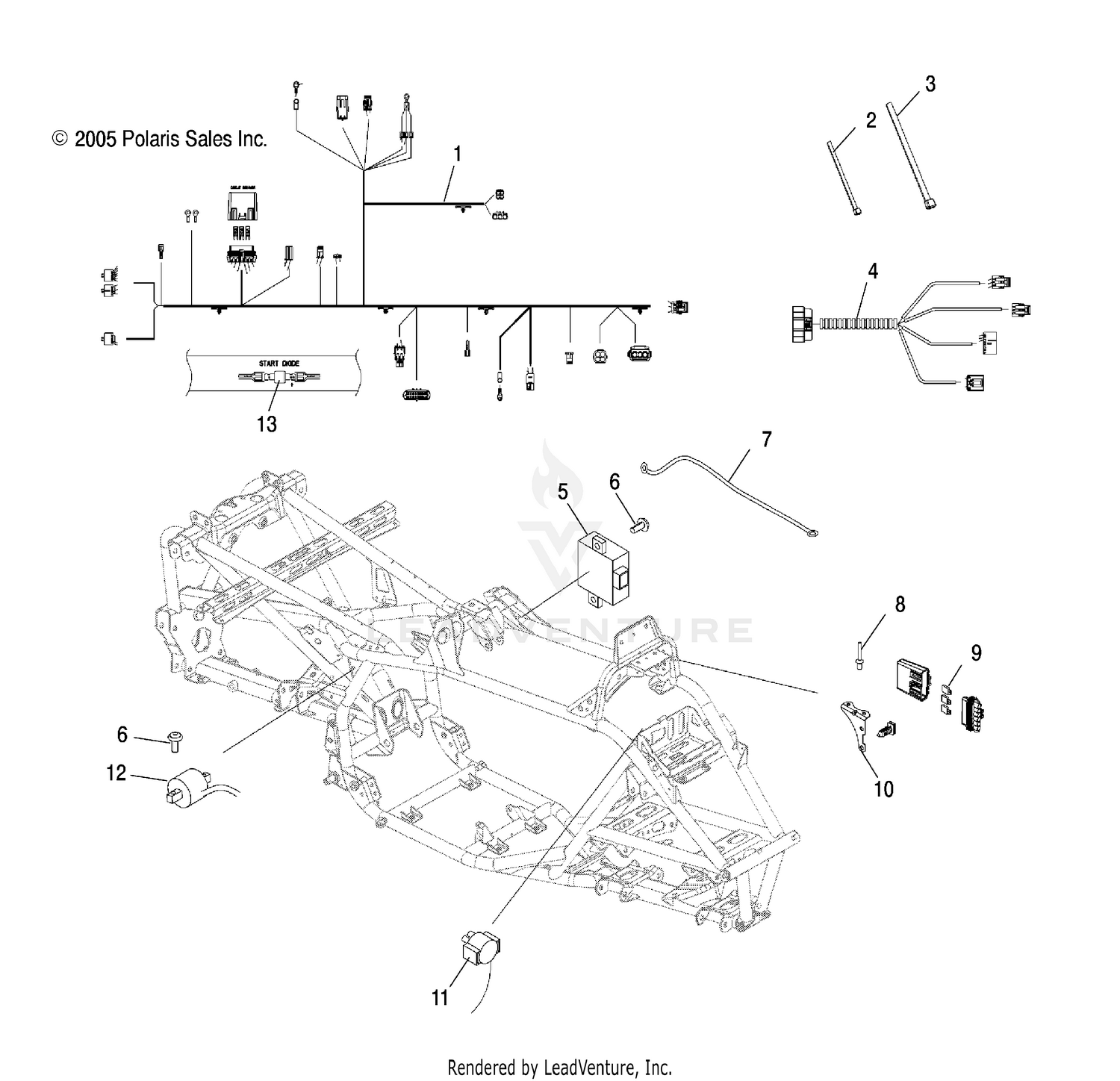

Electrical - A07gp50aa/ab (4999201899920189c03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Main
2410586
|
|||
|
Unavailable |
|||
|
#1
Kit, Fusible Link, .5mm
2202147
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Harness, Front Cab
2410832
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., CDI System
3089613
|
$394.99 | ||
|
Unavailable |
|||
|
#6
Screw
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cable, Ground, 13.75 Inch
4011170
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
Rivet
7621472
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Breaker, Circuit, 5AMP
4011405
|
$48.39 | ||
|
Unavailable |
|||
|
#9
Breaker, Circuit, 10AMP
4011371
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Breaker, Circuit, 15AMP
4011406
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bracket, Fuse Block
5249577
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
Solenoid, Starter
4011304
Superseded by 4012017
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Coil, Ignition
3089883
|
|||
|
Unavailable |
|||
|
#13
Diode, Start
2410694
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
