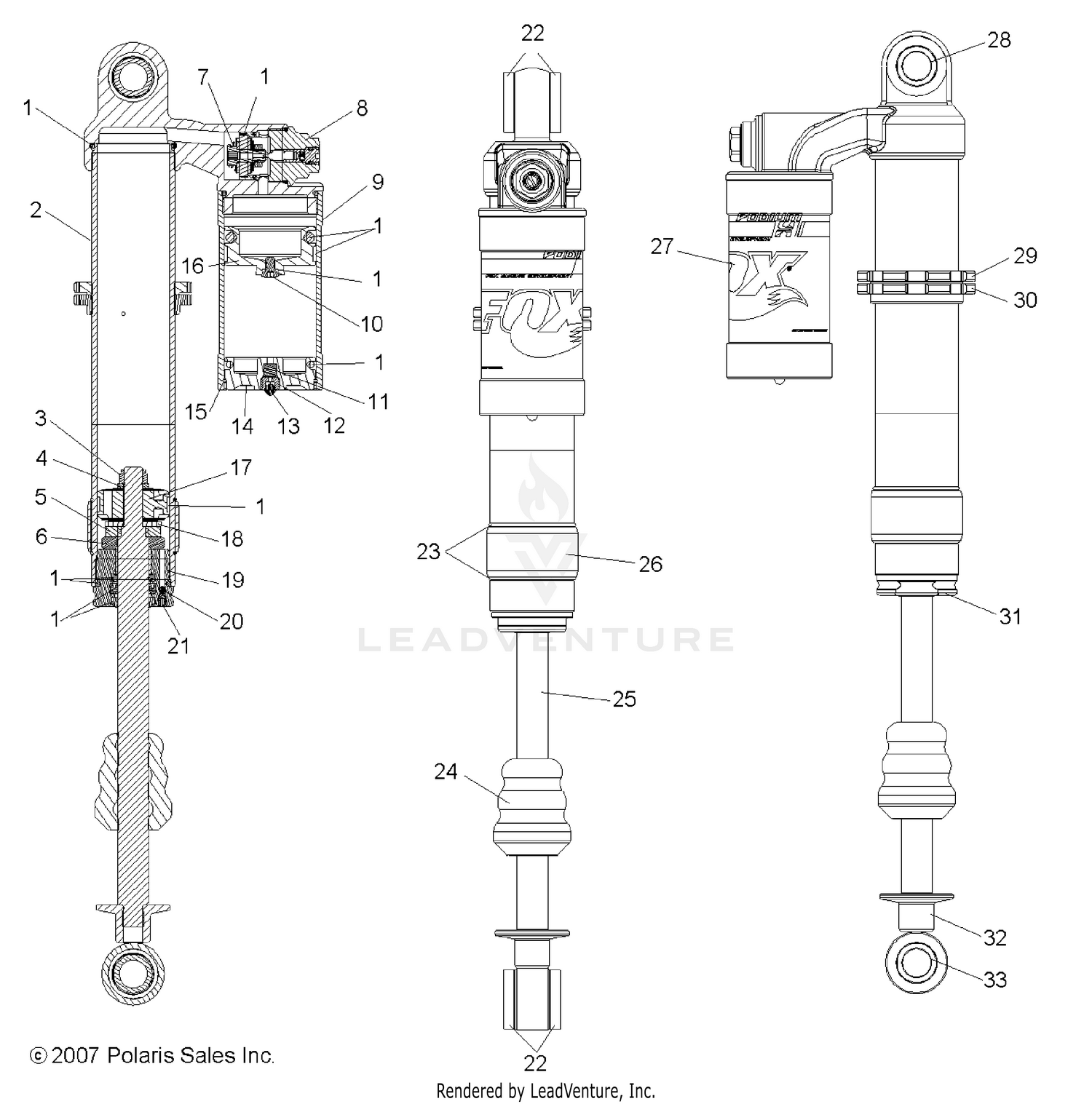

Suspension, Front Shock - A08gj52ac (49atvshockfrt7043359) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Shock, Front
7043359
Superseded by 7043475
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Rebuild
1500742
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Body
1500793
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Lock
1500016
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Plate, Backup
1500015
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bumper
1500074
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spacer, Shaft
1500495
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Piston, CD Conc. Adj.
1500627
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Cartridge, CD Single Adj.
1500617
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Reservoir
1500633
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw w/O-Ring
1500161
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Pellet
1500724
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw Set
1500723
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Ball
1500722
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cap, End, Reservoir
1500744
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ring, Retaining
1500236
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Piston, Floating
1500743
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Piston
1500624
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Plate, Top-Out
1500017
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Asm., Bearing
1500629
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Ball
1500071
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw, Socket Set
1500070
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bushing
1500103
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ring, Wire
1500607
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bumper
1500628
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Shaft
1500794
|
$48.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
Guide, Spring
1500585
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Decal, "FOX"
1500790
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Sleeve
1500497
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Ring, Preload
1500792
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
Ring, Preload
1500791
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
Housing, Bearing
1500750
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Eyelet
1500013
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Sleeve
1500747
Superseded by 1500497
|
$39.99 | ||
|
Unavailable |
|||
