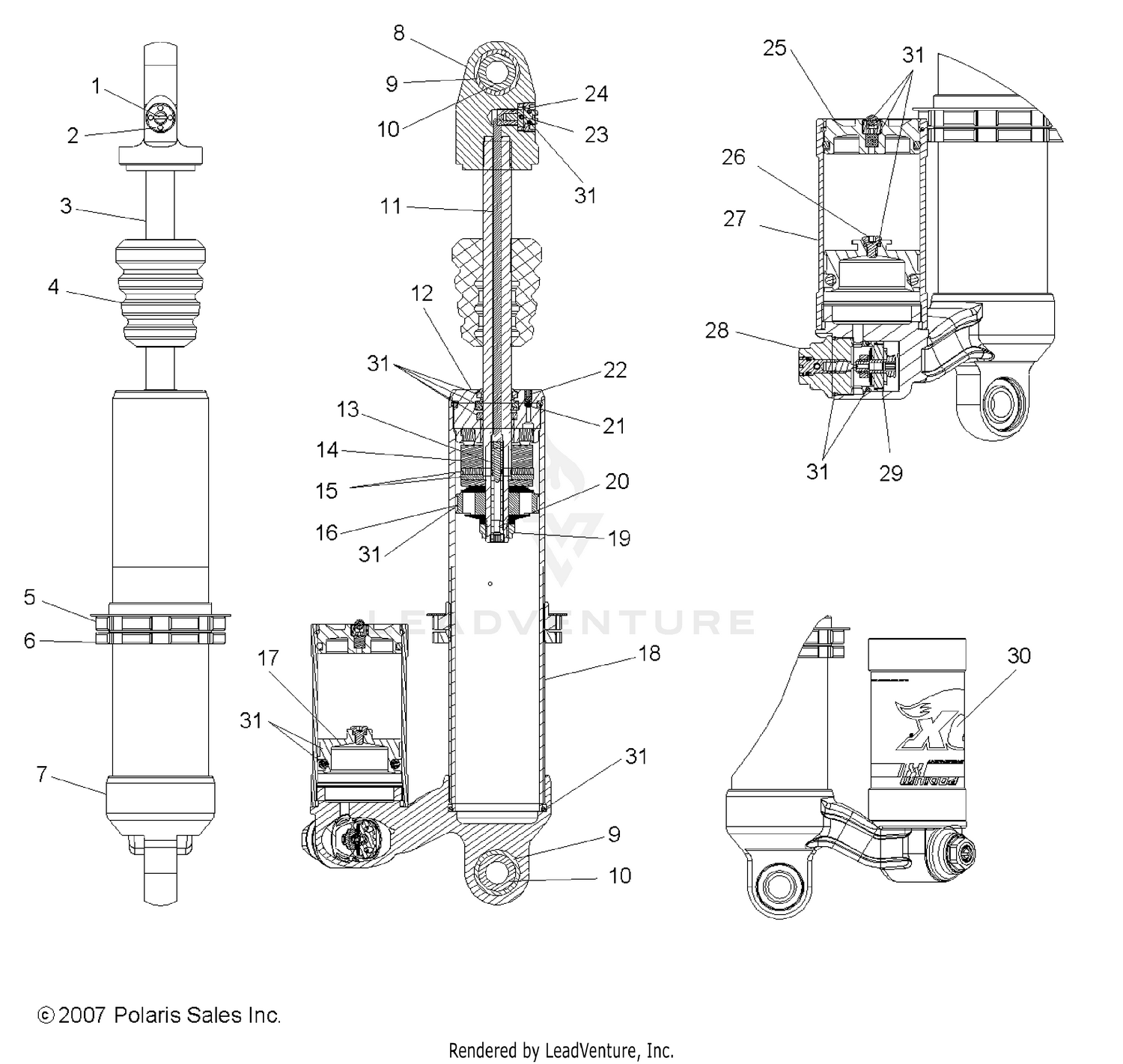

Suspension, Rear Shock - A08gj52aa/ab/ac (49atvshockrr7043331) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Shock, Rear
7043331
Superseded by 7043473
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Knob
1500641
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Retainer, RD Adjust
1500640
|
$32.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
Shaft
1500802
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bumper
1500577
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ring, Preload
1500575
|
$35.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Ring, Preload
1500576
|
$27.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cap, Body
1500745
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Eyelet
1500746
|
|||
|
Unavailable |
|||
|
#9
Ring, Retaining
1500523
Superseded by 7710446
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bearing, Spherical
1500524
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Rod, Metering
1500803
|
$23.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
Asm., Bearing
1500578
|
$94.99 | ||
|
Unavailable |
|||
|
#13
Needle
-------
|
|||
|
Unavailable |
|||
|
#14
Spacer
-------
|
|||
|
Unavailable |
|||
|
#15
Spacer
-------
|
|||
|
Unavailable |
|||
|
#16
Piston
1500615
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Piston, Floating
1500743
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Body
1500625
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Lock
1500472
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Jet
1500534
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
Ball
1500071
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw, Socket Set
1500070
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ball
1500638
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw, Adjust
1500642
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Cap, End
1500744
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Screw w/O-Ring
1500161
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Reservoir
1500633
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Cartridge, CD Single Adjust
1500617
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Piston, Concentric Adjuster
1500616
|
$21.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
Decal, "FOX"
-------
|
|||
|
Unavailable |
|||
|
#31
Kit, Rebuild
1500742
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
