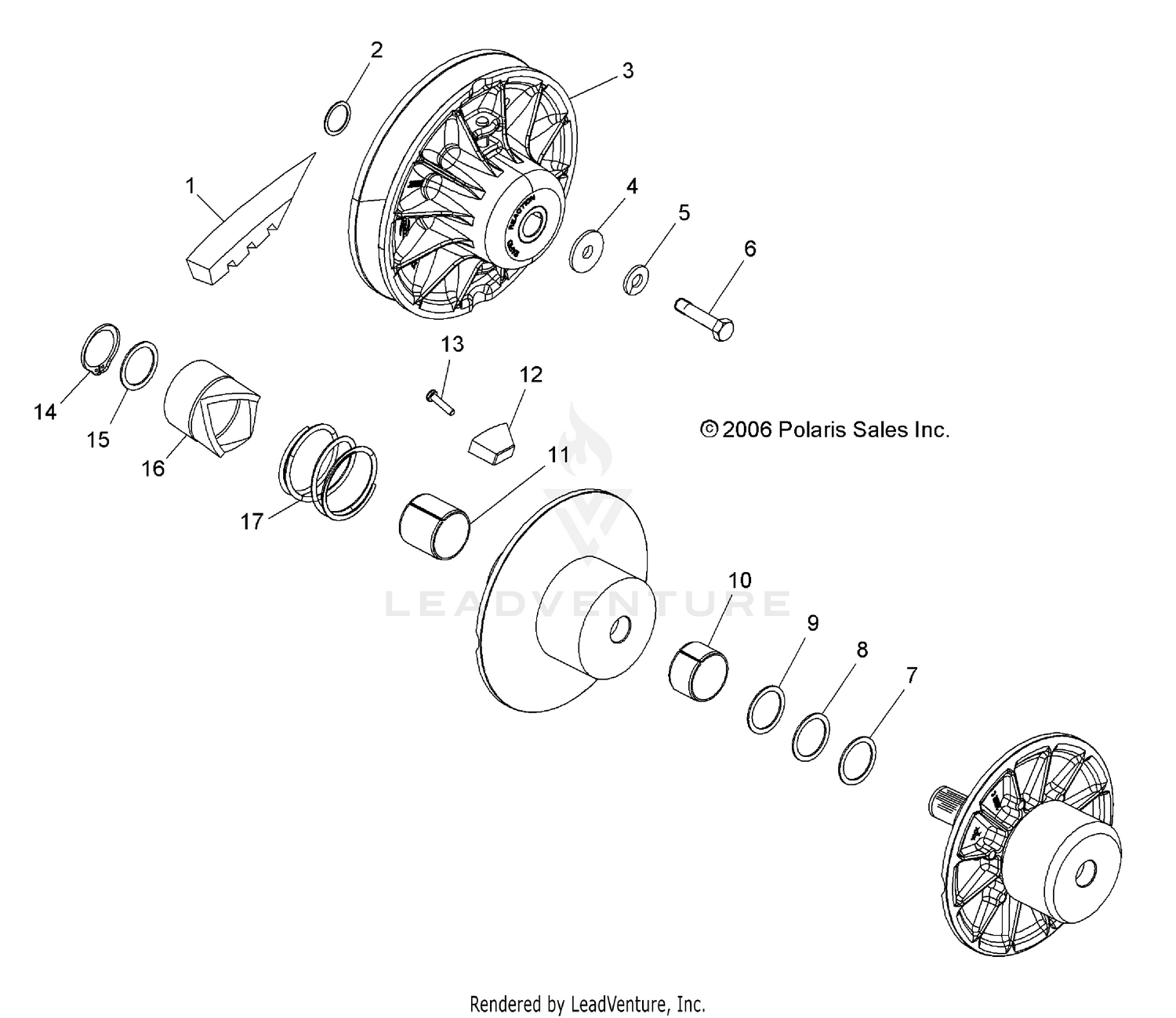

Clutch, Driven - R07rb50aa/rh50aa (4999202119920211c12) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Belt, Drive
3211077
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing
7556120
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Driven Clutch
1321848
|
$579.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer, Domed
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Spring Lock
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt
7515382
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer, .020
7555898
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer, .025
7556076
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Washer, .030
7556804
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bearing, Moveable, 1/2 Inch
3576504
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bearing, Moveable, 1 Inch
3576511
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUTTON
5436521
Superseded by 5450873
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bolt
7511854
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Ring, Retaining
7710448
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Spacer, .020
5210752
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ramp, Stationary
5131446
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Spring, Clutch
7041782
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
