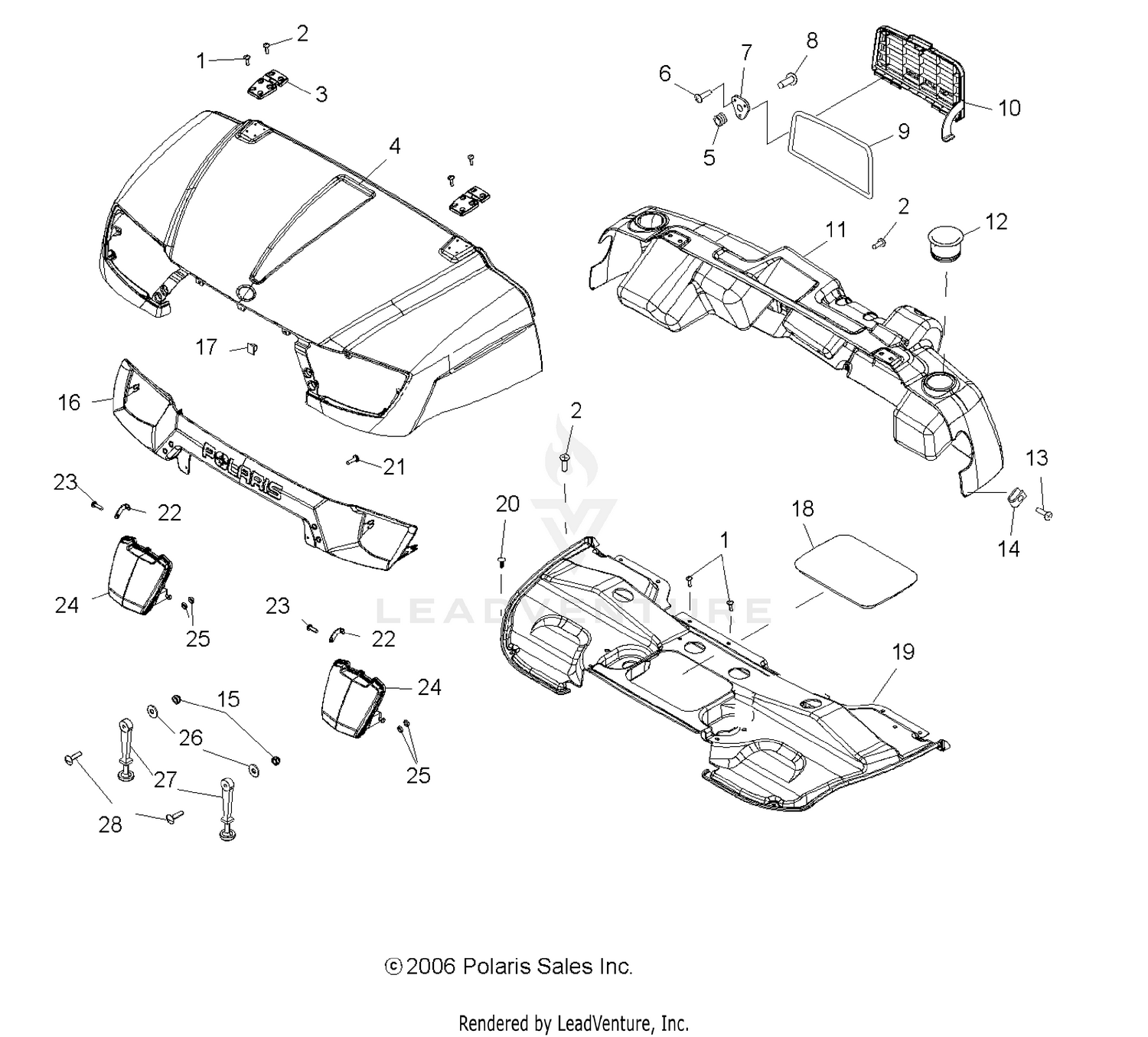

Hood - R07rb50aa/rh50aa (49rgrhood07500) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-HINGE
5437902
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hood, Green
5435703-195
|
$844.99 | ||
|
Unavailable |
|||
|
#5
Grommet, Rubber Mount
5412504
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE-CATCH
5910119
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-CATCH
5246693
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal, Glove Box
5521667
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cover, Glove Box, Green
5434719-195
|
$56.99 | ||
|
Unavailable |
|||
|
#11
Dash, Green
5435756-195
Superseded by 5437144-195
|
$684.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Holder, Cup
5434763
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7517561
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut, U-Type
7670157
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Grille, Hood, Black
5435728-070
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Clip, Wire
7670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Plug, Drain, Box
5413002
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Liner, Hood
5436967
Superseded by 5437106
|
$236.99 | ||
|
Unavailable |
|||
|
#20
CLIP-FIR TREE,DART,6.35MM
7670090
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw
7518238
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bracket, Headlight
5248655
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Asm., Headlight
2410503
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bulb, Headlight
4011029
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-Ring
5410163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Strap, Hood Latch
5410370
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7517230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
