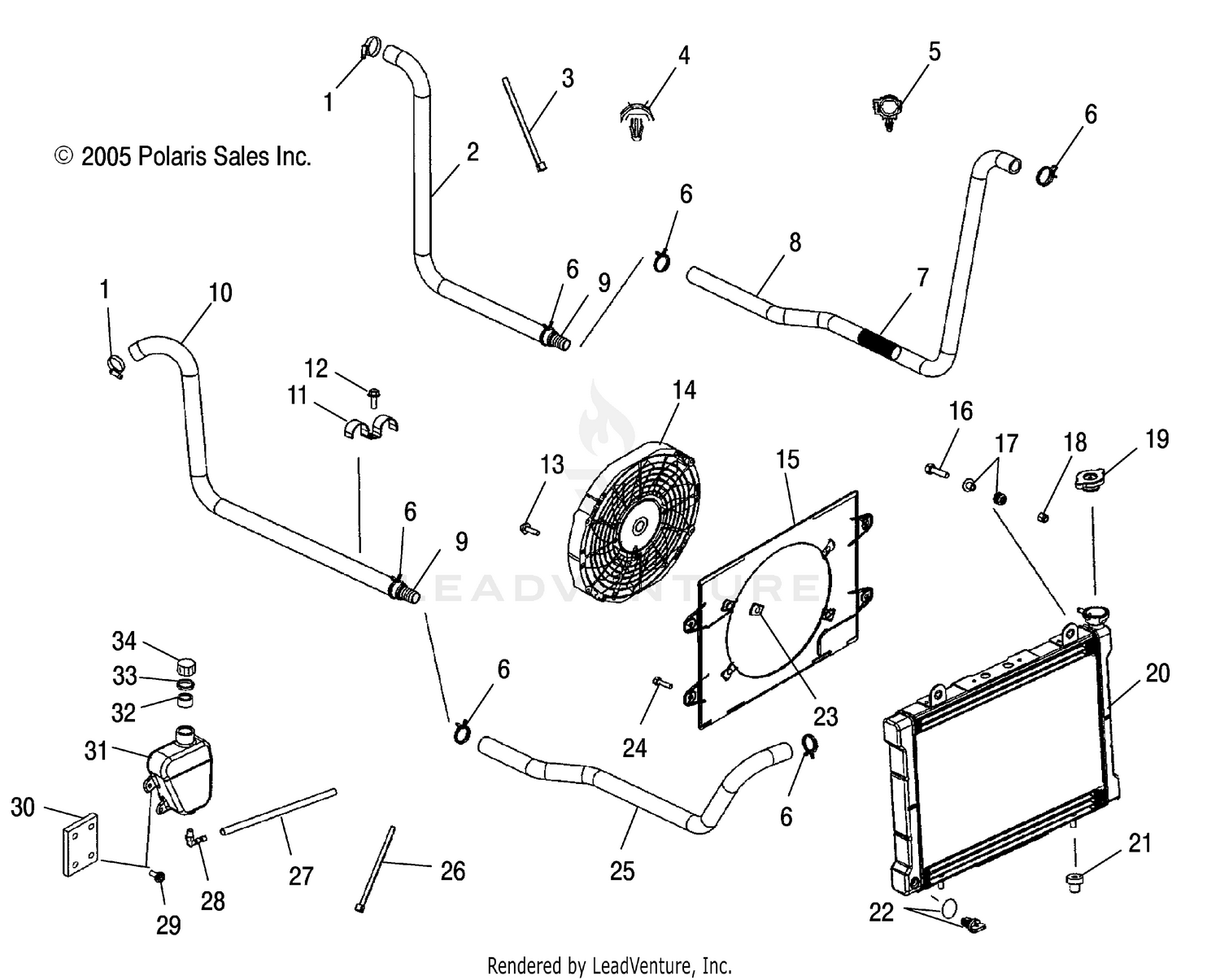

Cooling System - R06rb50aa/rd50aa (4999202119920211a14) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hose, Engine Outlet
5412649
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Mount, Cable Tie
7080965
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Clip, Rosebud
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Clamp, Roto Clip
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Tubing, Convoluted
5521324
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose, Radiator, Inlet
5411977
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Connector, Barbed
7052092
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hose, Engine Inlet
5412650
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp, Double Hose
7080898
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw w/Washer
7547220
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Fan Radiator
2410340
|
$237.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHROUD, FAN
5434696
Superseded by 5436852
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bolt
7512163
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Nut, Flanged, Nylok
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cap, Pressure
1240093
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Radiator, Flat
1240209
|
|||
|
Unavailable |
|||
|
#21
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Valve, Plastic Radiator/Cooler Drain
7052296
|
|||
|
Unavailable |
|||
|
#23
Clip, U
7547197
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bolt
7518067
Superseded by 7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hose, Radiator, Outlet
5411979
|
|||
|
Unavailable |
|||
|
#26
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Fitting
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Bracket, Surge Tank
5246873
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
TANK-SURGE
5431673
Superseded by 5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
