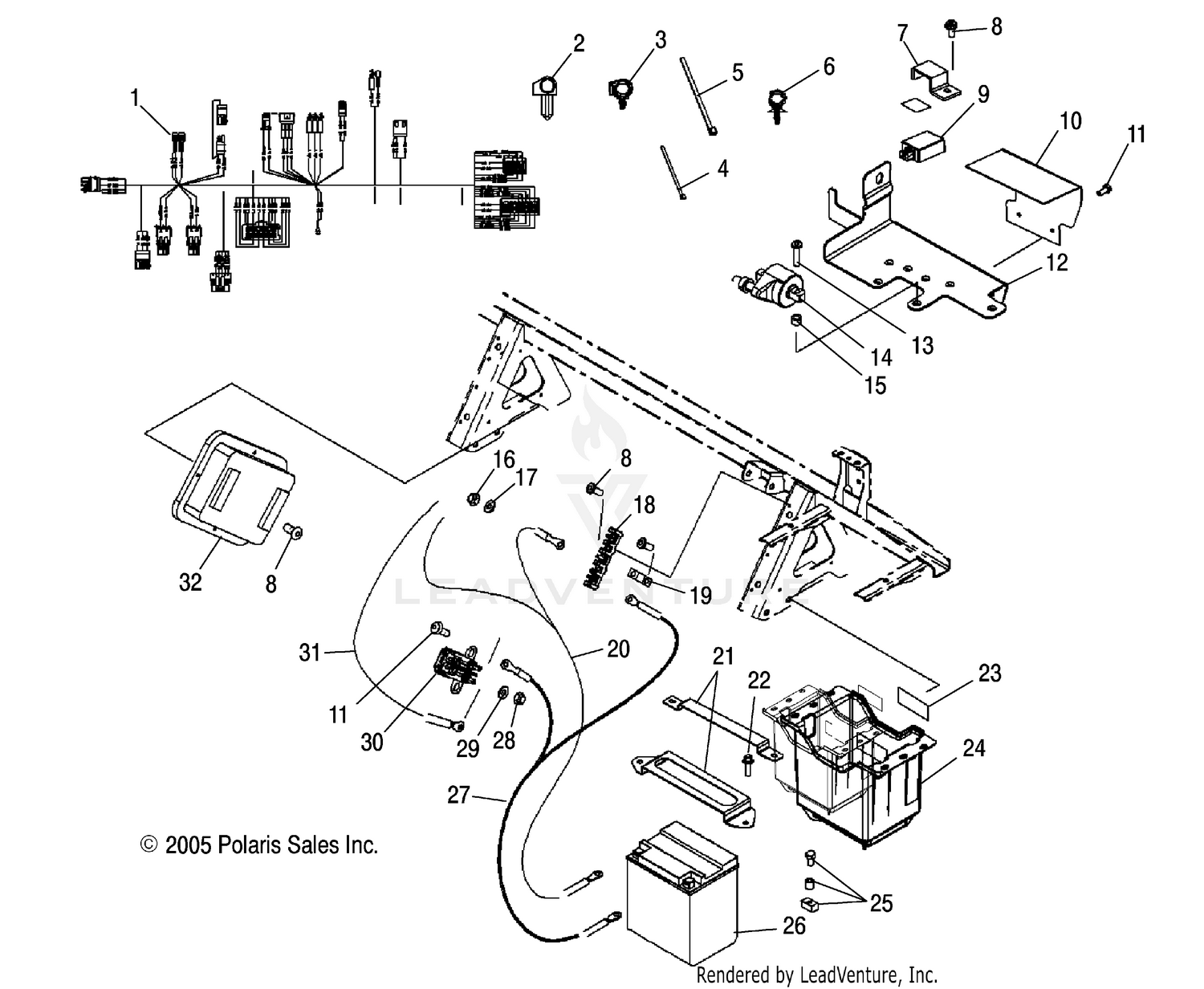

Electrical/battery - R06rb50aa/rd50aa (4999202119920211b06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2410738
|
|||
|
Unavailable |
|||
|
#2
Clip
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clip, Rosebud
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Clip, Routing
7670116
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bracket, CDI, Digital, Long
5246747
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CDI System
3089238
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bracket, Electrical Cover
5245617
|
|||
|
Unavailable |
|||
|
#11
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, OIL TANK, SUPPORT
-------
|
|||
|
Unavailable |
|||
|
#13
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Unavailable |
|||
|
#14
Coil, Ignition
3085227
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER-.26X.50X.31
7556318
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut, Hex
3280321
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
Washer, Lock
7552615
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Block, Terminal
4011130
|
$1.69 | ||
|
Unavailable |
|||
|
#19
Strap, Ground
5248659
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cable, Ground
4010926
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cable, Ground
4011214
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bracket, Battery Strap
5248374
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bracket, Battery Strap
5250213
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Pad, Rack Mount
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Box, Battery
5434037
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, Battery Bolt
2202213
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, Battery Bolt
2202802
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BATTERY-30AH,12 VOLT,AGM
4010595
Superseded by 4014609
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Cable, Positive
4011213
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Nut, Hex
7547283
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Washer, Spring Lock
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Switch, Magnetic
4011251
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Cable, Solenoid/Starter
4011249
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Module, 500 ECM
4011089
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
