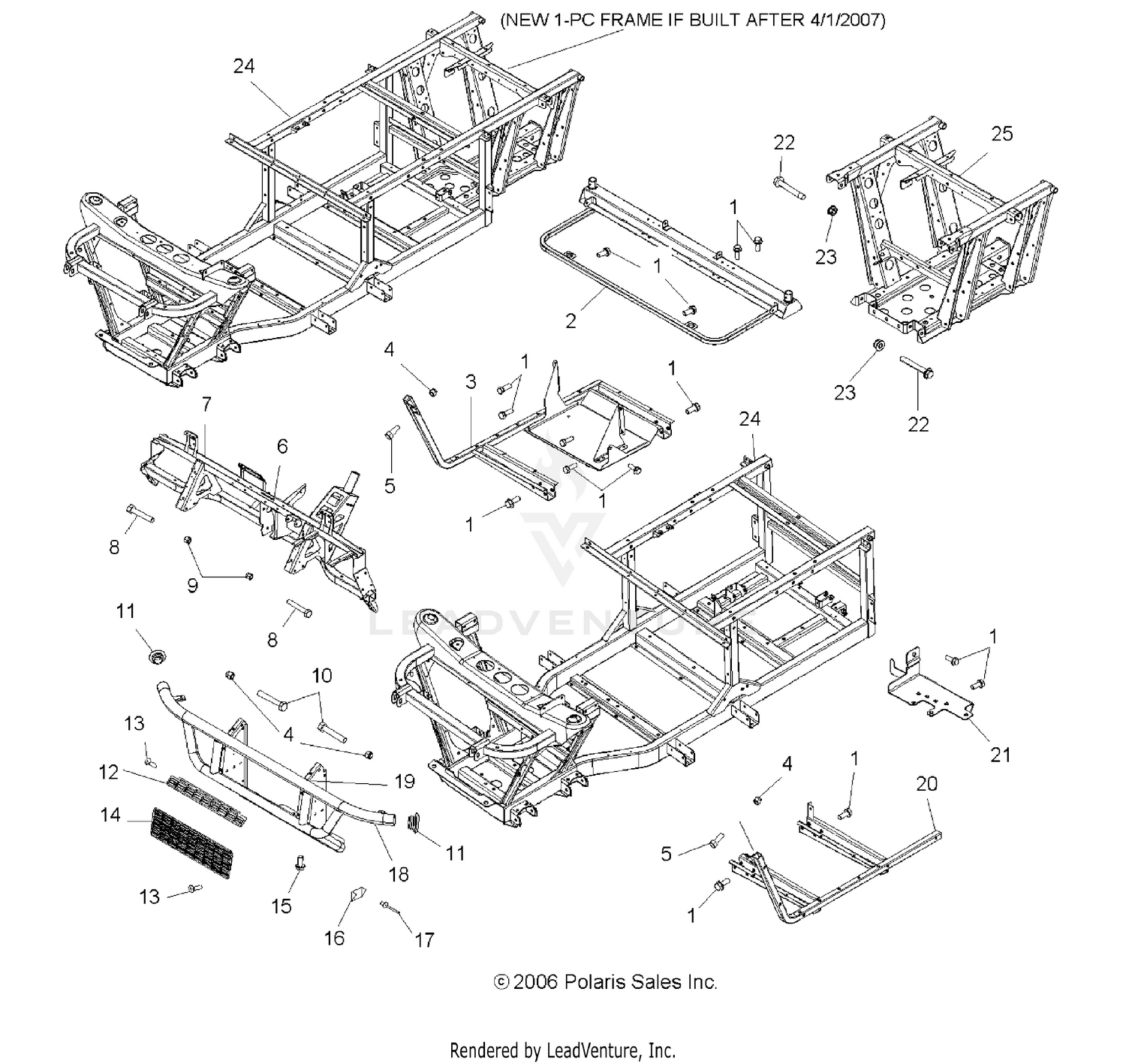

Chassis/body - R07rh50af/ar/at (49rgrchassis07500efi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Base, Cab/Seat, Black
1015312-067
|
|||
|
Unavailable |
|||
|
#3
Support, Floor, Black, RH
1015378-067
|
$152.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Nut, Flange
7547180
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt
7515522
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Trim, Edge
5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Support, Cab, Front, Black
1015828-067
|
|||
|
Unavailable |
|||
|
#7
Support, Cab, Front, Black
1016152-067
|
|||
|
Unavailable |
|||
|
#8
Screw
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut, Nylok
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7518278
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP-BUMPER
5434191
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Plate, Grille, Bumper, Top, Black
5248846-067
|
$31.99 | ||
|
Unavailable |
|||
|
#13
Screw
7517916
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Plate, Grille, Bumper, Upper, Black
5248845-067
|
$45.39 | ||
|
Unavailable |
|||
|
#15
Screw
7517854
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cup, Hood Latch
5436987
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Rivet
7621334
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bumper, Black
1014991-067
Superseded by 1015909-067
|
$674.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bumper, Black
1015909-067
|
$674.99 | ||
|
Unavailable |
|||
|
#19
DECAL, REFLECTOR, AMBER
7079924
Superseded by 7175521
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Support, Floor, Black, LH
1014902-067
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bracket, Oil Tank, Support, Black
5246110-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw
7518406
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Nut, Nylok
7542525
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Frame, Main, Black
1015721-067
|
|||
|
Unavailable |
|||
|
#24
Frame, Main, Black
1016012-067
|
|||
|
Unavailable |
|||
|
#25
Extension, Frame, Black
1014631-067
|
|||
|
Unavailable |
|||
|
#25
Extension, Frame, Black
1015646-067
|
|||
|
Unavailable |
|||
