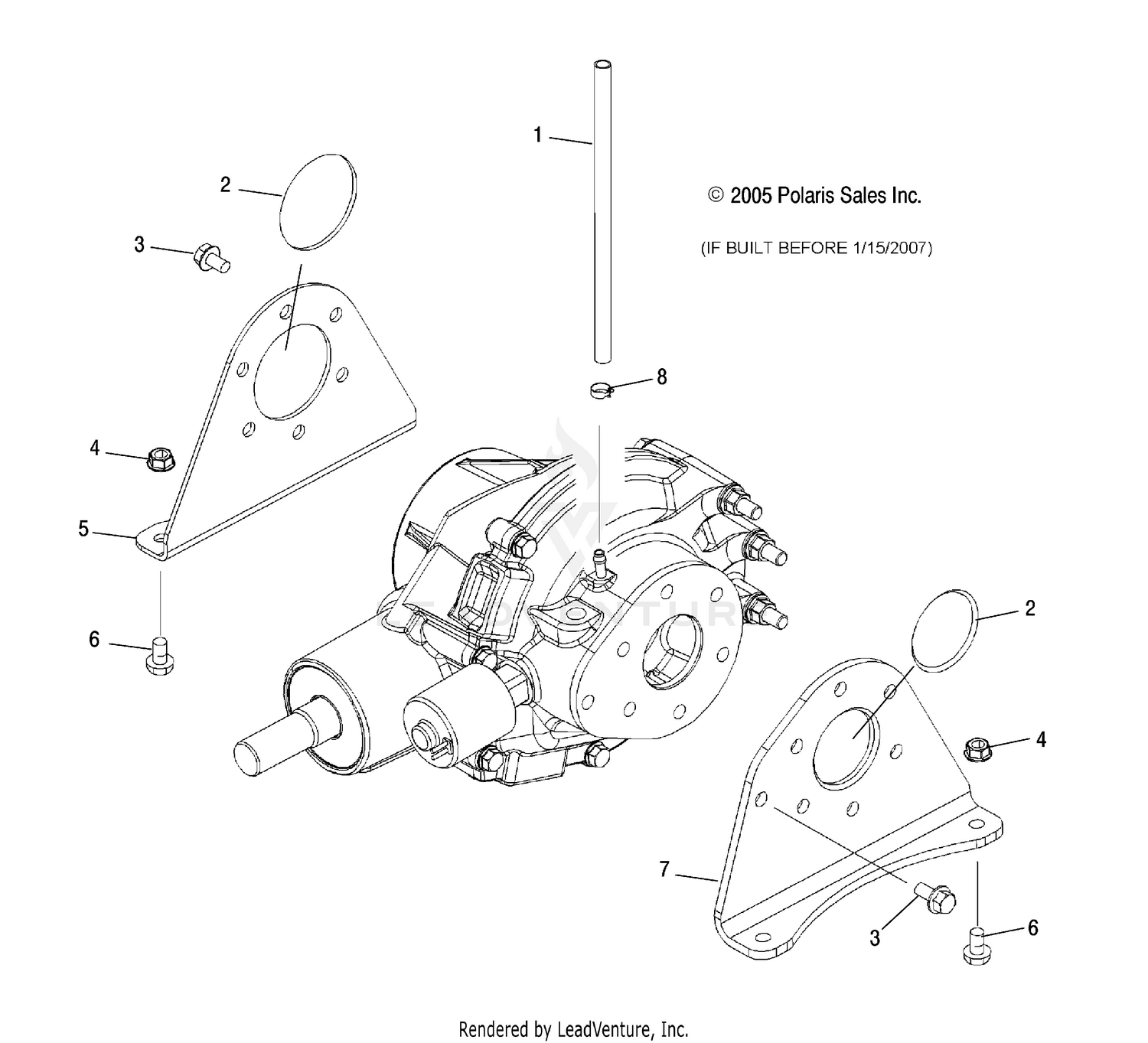

Gearcase, Mounting, Rear (built Before 1/15/07) - R07rh50af/ar/at (49rgrgearcasemtgrr07500efi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase, Differential, Rear
1341514
|
|||
|
Unavailable |
|||
|
#1
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, OIL, SHAFT
3610117
Superseded by 3610146
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bolt
7518442
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-3/8-24 FLG LOC
7547263
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bracket, Differential Mount, Side, RH
5247987
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7517289
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bracket, Differential Mount, Side, LH
5247821
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
