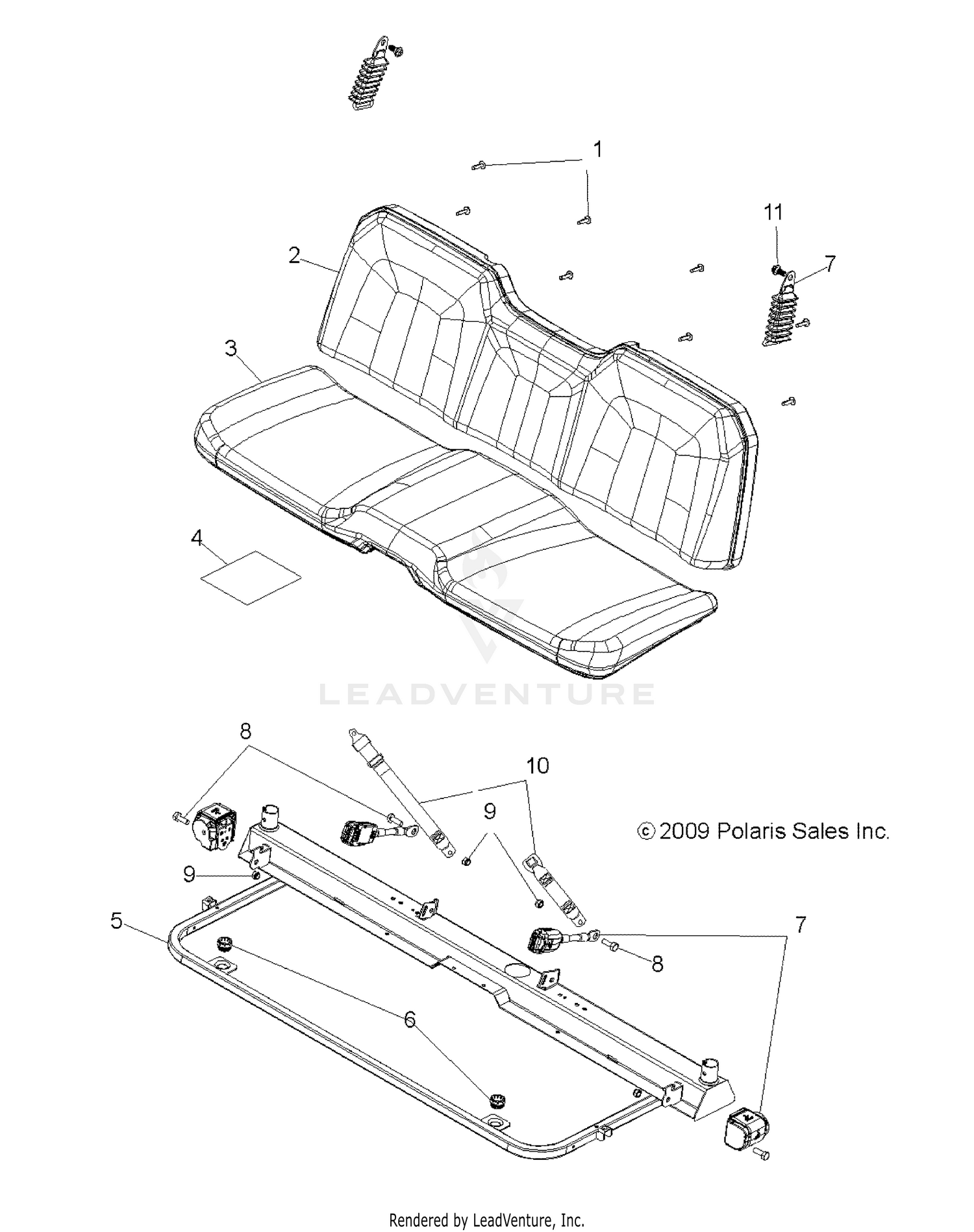

2010 Polaris RANGER 500 H.O. BODY, SEAT and BASE - R10TH50AG/AR (49RGRSEAT105004X4) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-SEAT,RNGR,BACK,S.SKIN,BLK
2684183-070
Superseded by 2685944-070
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-SEAT,RNGR,BACK,S.SKIN,BLK
2684576-070
Superseded by 2685944-070
|
$489.99 | ||
|
Unavailable |
|||
|
#3
ASM-SEAT,RNGR,BTM,S.SKIN,BLK
2684184-070
Superseded by 2685943-070
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-SEAT,RNGR,BTM,S.SKIN,BLK
2684577-070
Superseded by 2685943-070
|
$454.99 | ||
|
Unavailable |
|||
|
#3
Kit, Seat Pin Repair
2204383
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Foil
5812295
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Base, Cab/Seat, Black
1017380-067
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
5412507
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Seat Belt
2633993
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt
7512520
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut, Nylon
7547066
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Asm., Seat Belt, Center
2632422
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bolt, Shoulder
7519255
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
