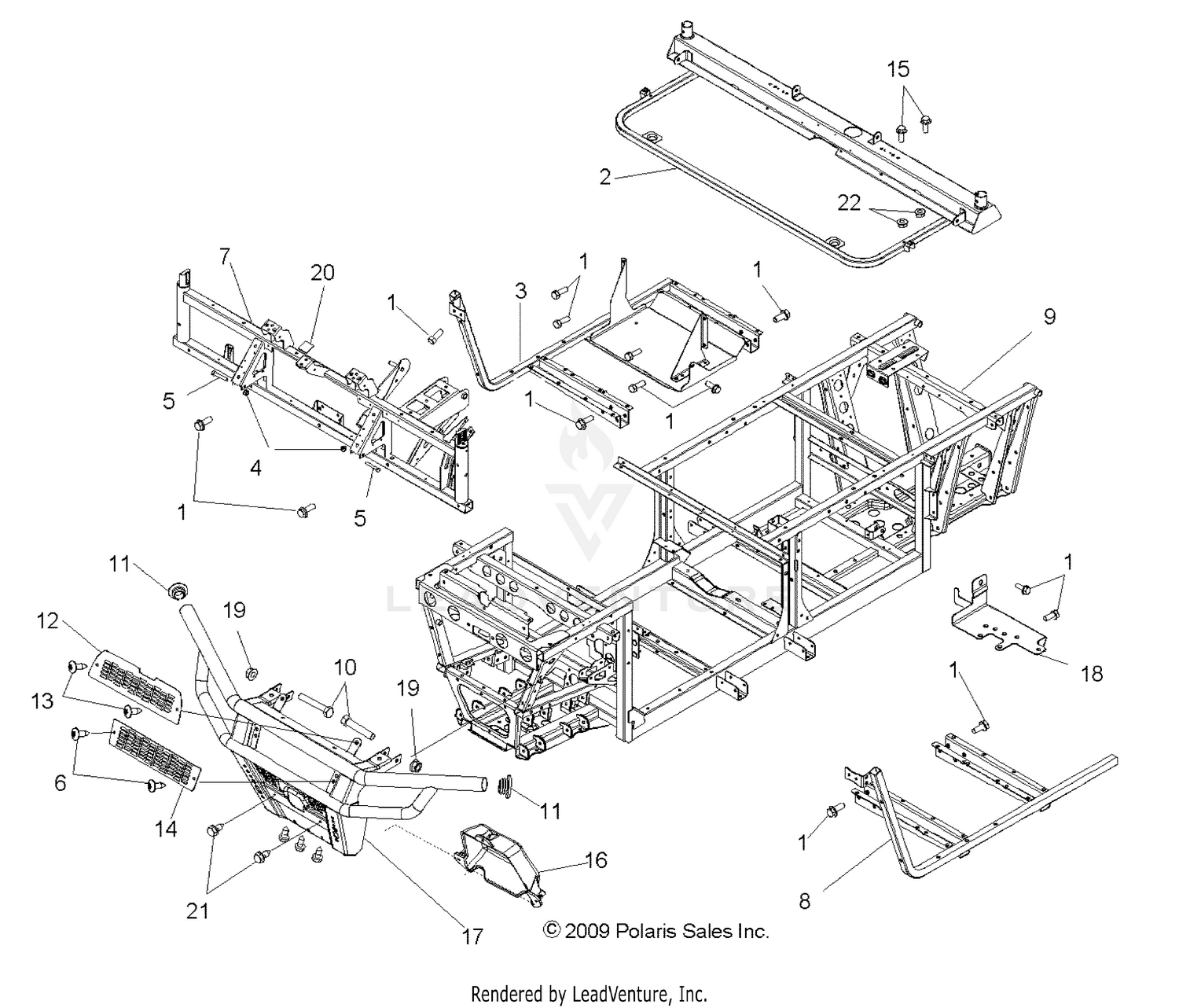

2010 Polaris RANGER 500 H.O. CHASSIS, FRAME and FRONT BUMPER - R10TH50AG/AR (49RGRCHASSIS105004X4) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Base, Cab/Seat, Black
1017380-067
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-FLOOR SUPPORT,RH,BLK
1016255-329
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bolt
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7518981
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Support, Cab, Front, Black
1017325-067
|
$494.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Support, Floor, Black, LH
1016412-329
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Frame, Main, Black
1017345-067
|
$1,949.99 | ||
|
Unavailable |
|||
|
#10
Bolt
7518473
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP-BUMPER
5434191
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screen, Fascia, Black
5438241-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screen, Bumper, Upper, Black
5438240-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bracket, Bumper Guard, Black
5438181-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bumper, Black
1016310-521
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bracket, Oil Tank Support, Black
5253891-329
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Nut, Flange
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Foam, Hood Support
5813421
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut
7517317
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
