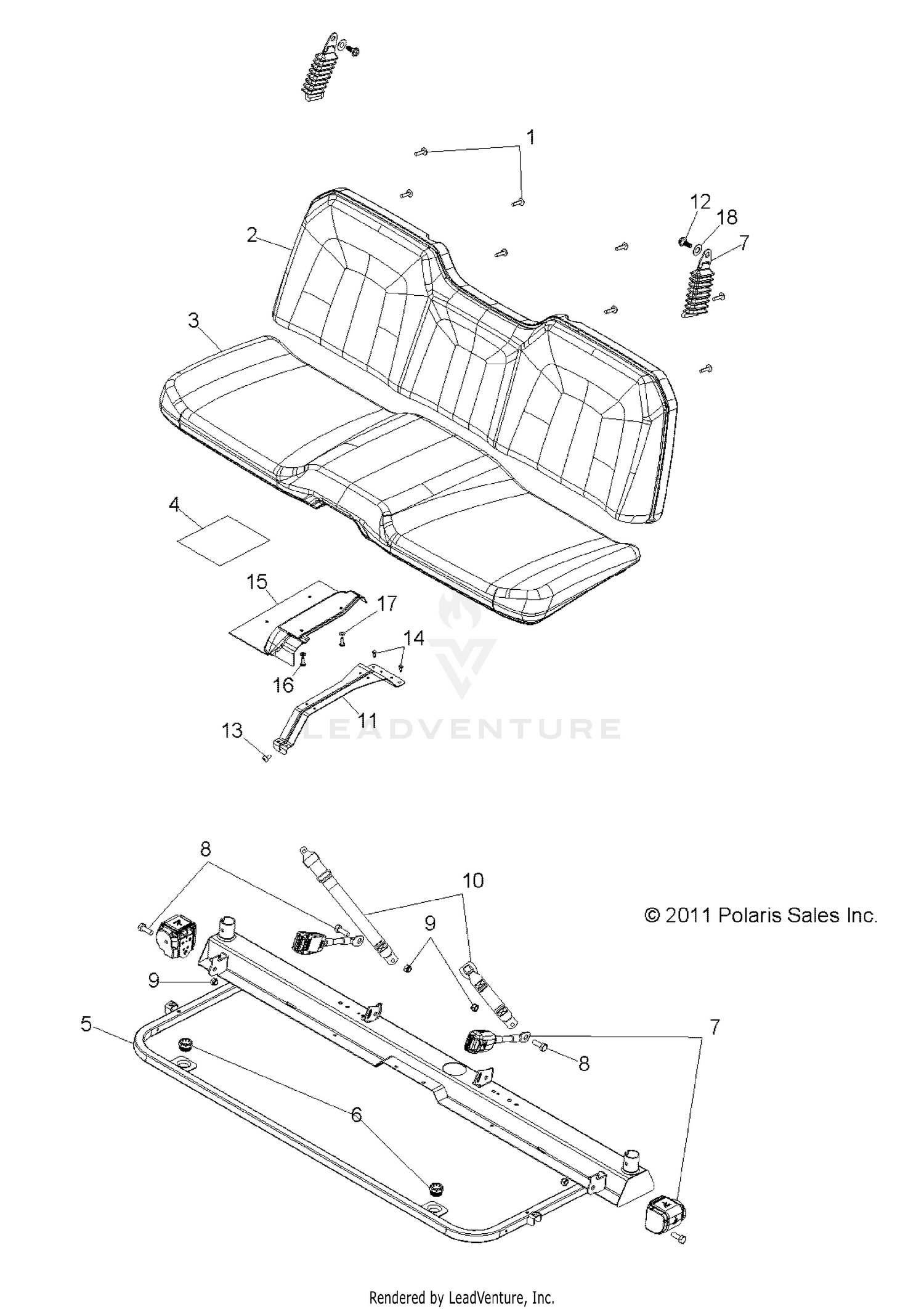

Body, Seat And Base - R12hr76ag/ar (49rgrseat126x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7519274
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Seat, Back, Black
2684885-070
|
$579.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cover, Seat Back, Black
5437641-070
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Seat, Bottom, Black
2684884-070
|
$654.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Kit, Seat Pin Repair
2204383
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAB-MOUNT,SEAT
5437903
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Rivet
7621479
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Foil
5810128
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Base, Cab/Seat, Black
1017809-067
|
$674.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
5412507
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Seat Belt, 3 Point
2634154
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7512520
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Nut, Nylon
7547066
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Asm., Seat Belt, Center
2634093
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bracket, Seat Support Center, Black
5255263-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt, Shoulder
7519255
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7518280
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Rivet
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Shield, Seat Base
5813738
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7519290
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SEATBELT,RUBBER
5813829
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
