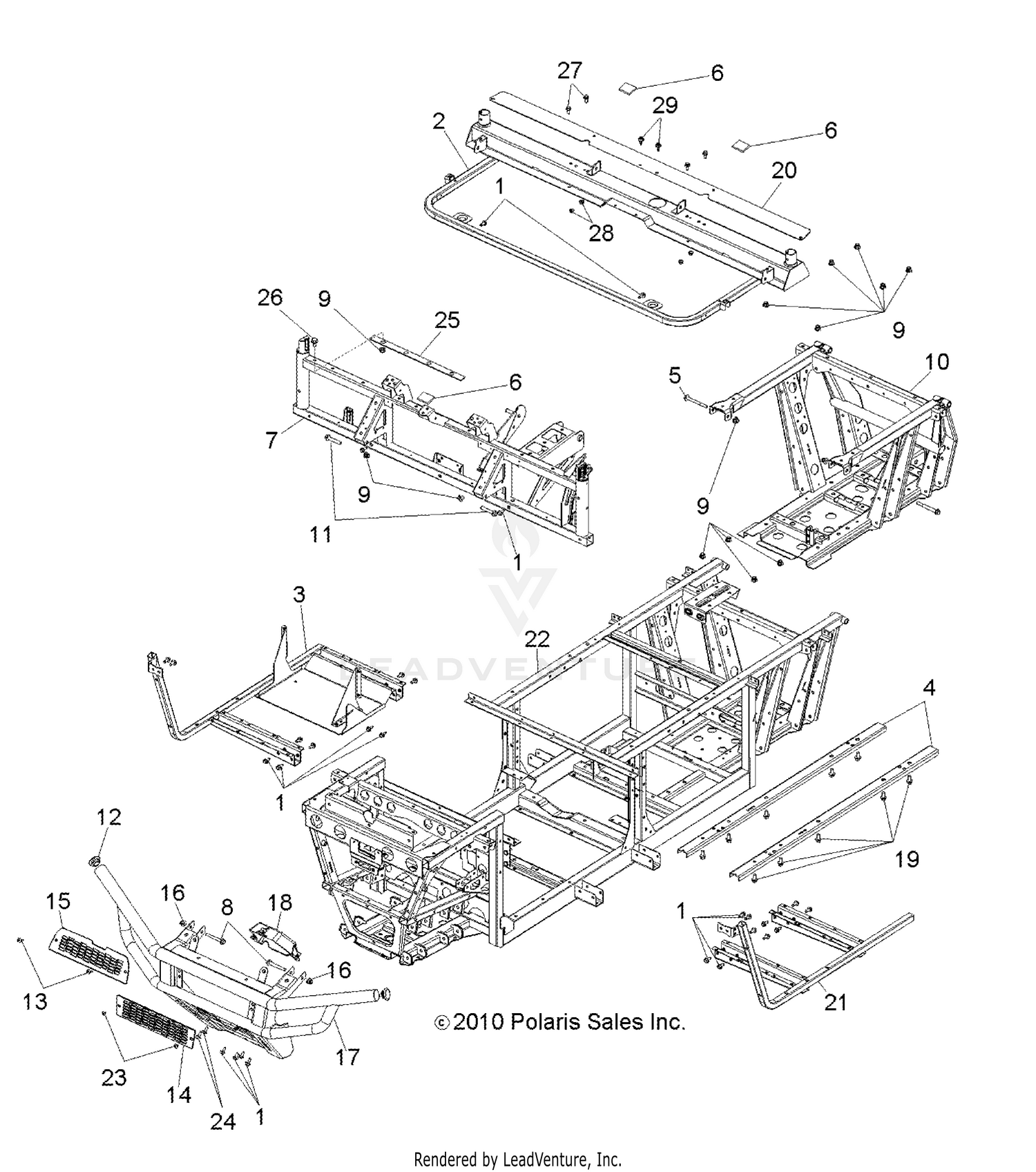

Chassis, Frame And Front Bumper - R12hr76ag/ar (49rgrchassis116x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE, CAB/SEAT
-------
|
|||
|
Unavailable |
|||
|
#3
WELD-FLOOR SUPPORT,RH,BLK
1016255-329
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket, Mount, Frame Extension, Black
5253795-067
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7519043
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Foam, Hood Support
5813421
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Support, Cab, Front, Black Engine Wrinkle
1017325-521
|
$684.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt, Flanged
7518473
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Frame, Rear, Black
1017652-067
|
|||
|
Unavailable |
|||
|
#11
Bolt, Flanged
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP-BUMPER
5434191
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screen, Bumper, Upper, Black
5438240-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screen, Fascia, Black
5438241-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut, Nylok, Flanged
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bumper, Black
1016310-521
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bracket, Bumper, Guard, Black
5438181-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bolt
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Shield, Storage Box, Black
5254049-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WELD-FLOOR SUPPORT,LH,BLK
1016254-329
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Frame, Main, Black
1017651-067
|
|||
|
Unavailable |
|||
|
#22
Bushing, Frame
5336446
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7518981
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Bracket, Dash Support, Black
5253973-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Screw
7519059
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Nut
7547317
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Rivet
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
