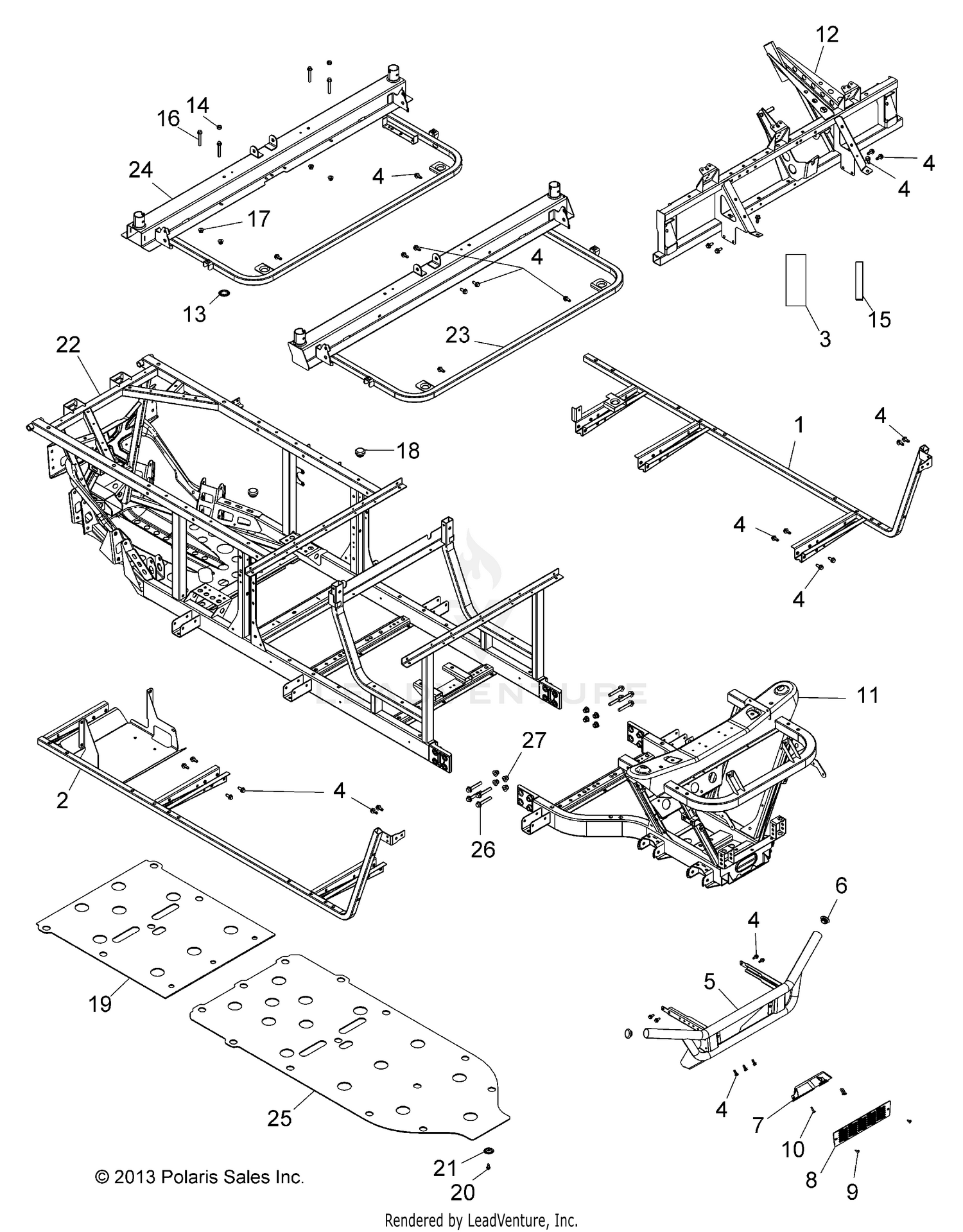

Chassis, Frame And Front Bumper - R15rna57aa/ac/ar/e57as (49rgrchassis14570crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUPPORT, FLOOR, LH, BLACK
1020149-329
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUPPORT, FLOOR, RH, BLACK
1020150-329
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOAM, SEAL
5810947
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUMPER, MATTE BLACK
1020136-458
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP-BUMPER
5434191
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, BUMPER, GUARD, BLACK
5438181-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREEN, BUMPER, UPPER, BLACK
5438240-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
7517916
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRAME, MAIN, FRONT, MATTE BLACK
1020156-458
|
$1,359.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT, CAB, FRONT, BLACK
1020151-329
|
$514.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
5413398
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, SCREW
5414017
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Trim, Edge
8360012-06
Superseded by 5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUMPER-RUBBER,.62 STEALTH
5411435
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE-SKID,REAR
5450137
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRAME, REAR, MATTE BLACK
1020157-458
|
$3,009.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, BASE, CAB SUPPORT, MATTE BLACK
1020161-458
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT, BASE, CAB SUPPORT, MATTE BLACK
1020154-458
|
$504.99 | ||
|
Unavailable |
|||
|
#25
PLATE-SKID
5813381
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
