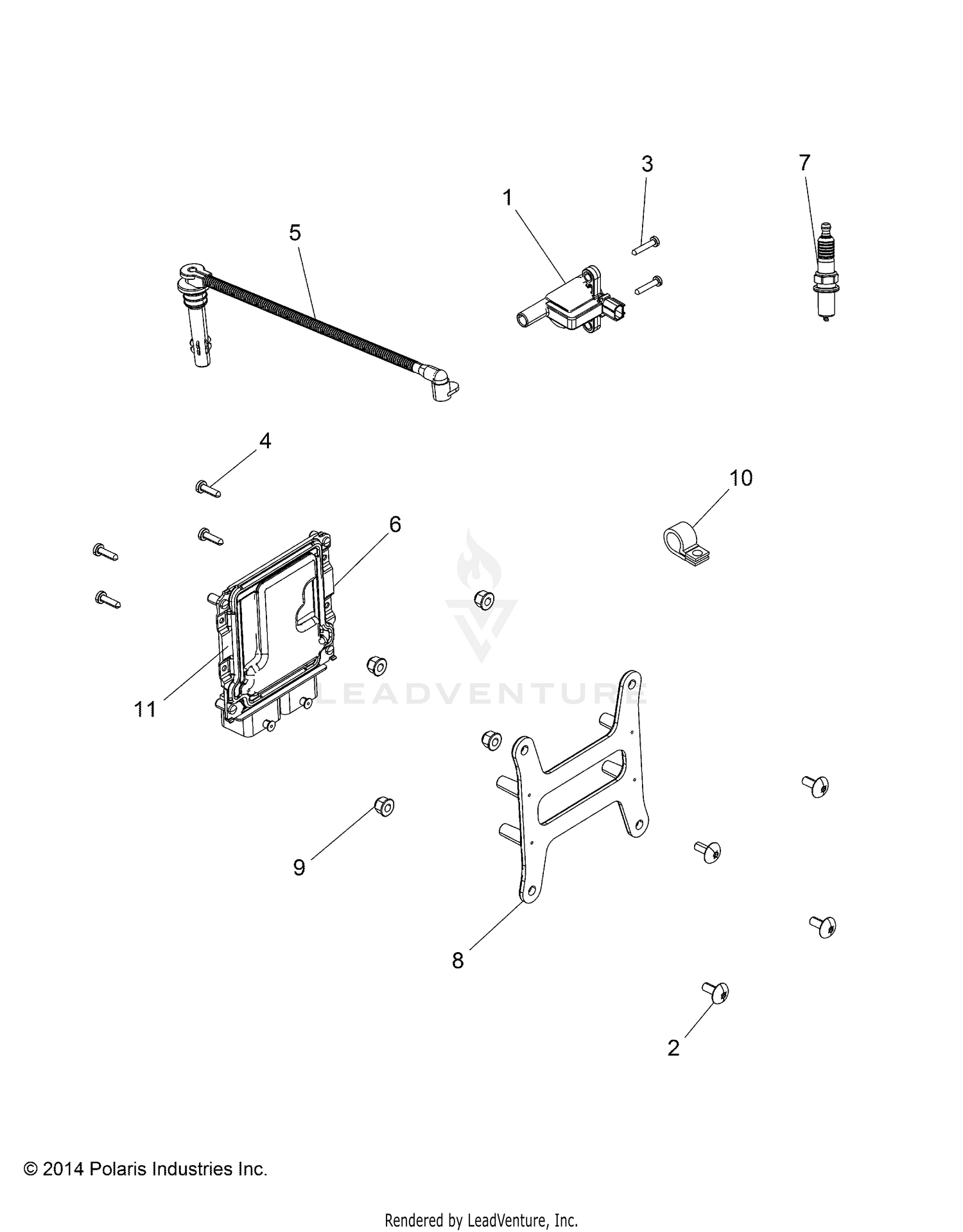

Electrical, Ignition - R15rna57aa/ac/ar/e57as (49rgrignition15570mc) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL-IGNITION,SINGLE,W/DIODE
4011834
Superseded by 4015072
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
7518905
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, SPARK SLUG, PTO
4012991
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ECM, NO START, ME17
4014125
|
$694.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPARK PLUG-10 MM
3022662
|
$9.99 | ||
|
Unavailable |
|||
|
#8
MOUNT, ECM, BLACK
5450605-070
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE, NYLOK
7547494
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP-RUBBER COATED,.75" ID
7081116
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, ECM
5438786
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
