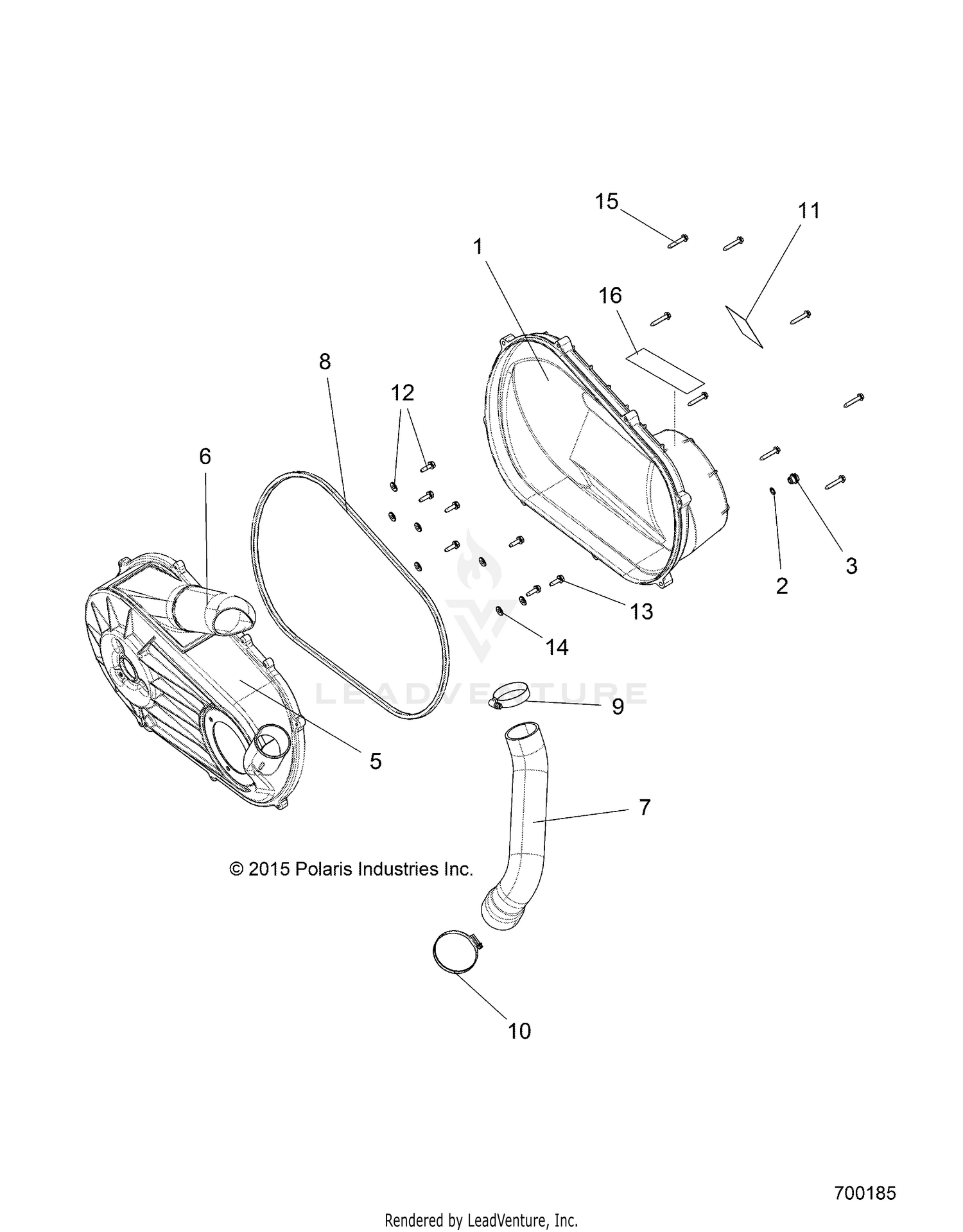

Drive Train, Clutch Cover And Ducting - R16rma32a1/a2 (700185) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., COVER, CLUTCH, OUTER
2634179
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING
5410542
Superseded by 5411432
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG-DRAIN,CLUTCH COVER
5434264
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM., COVER, CLUTCH, INNER
2634864
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CLUTCH, INNER
5450165
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-COVER,CLUTCH,INNER
5450181
Superseded by 2636954
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, INTAKE, CLUTCH
5415010
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL-OUTER CLUTCH COVER
5521831
Superseded by 5526449
|
$54.99 | ||
|
Unavailable |
|||
|
#9
CLAMP, HOSE
7080451
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP-BAND,NARROW 60-80MM
7080707
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DECAL-BELT,WARNING/CHECK
7177469
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
ASM., BOLT/WASHER
7519278
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7519279
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
7519330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DECAL-WARN,CLUTCH COVER
7175488
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
