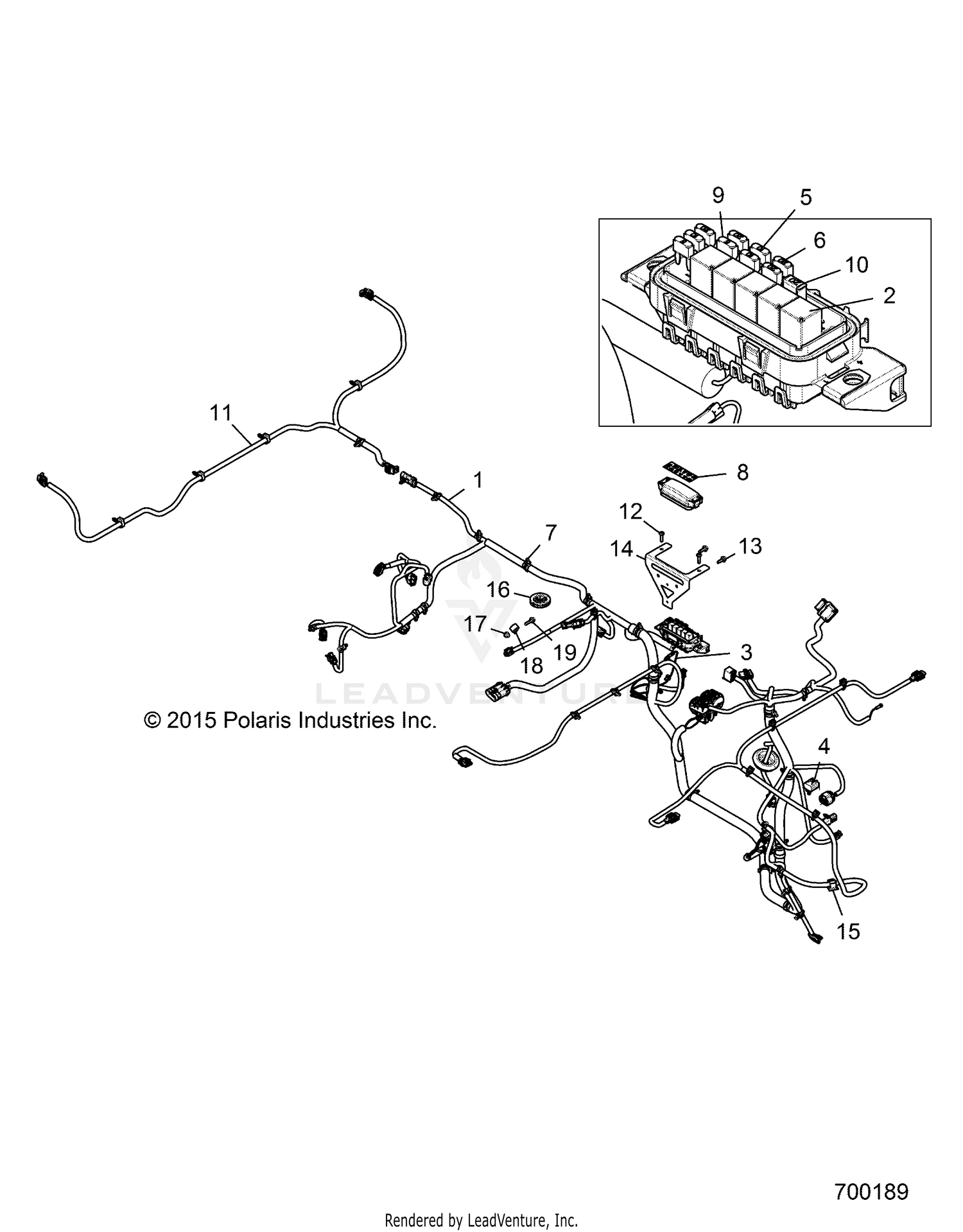

Electrical, Wire Harnesses - R16rma32a1/a2 (700189) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, CHASSIS
2412697
|
$1,039.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT, FUSIBLE LINK, 1MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, DIAGNOSTIC W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL, FUSE/RELAY BLOCK
7180388
|
|||
|
Available to order. Add to View Price |
|||
|
#9
FUSE-5A,MINI BLADE
4011652
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BREAKER-CIRCUIT,20 AMP
4011372
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HARNESS, BOX
2412702
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, MOUNT, FUSE BLOCK, BLACK
5256408-329
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, WIRE
7670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET-ELECTRICAL,CAB
5414440
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP-RUBBER COATED,.75" ID
7081116
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
