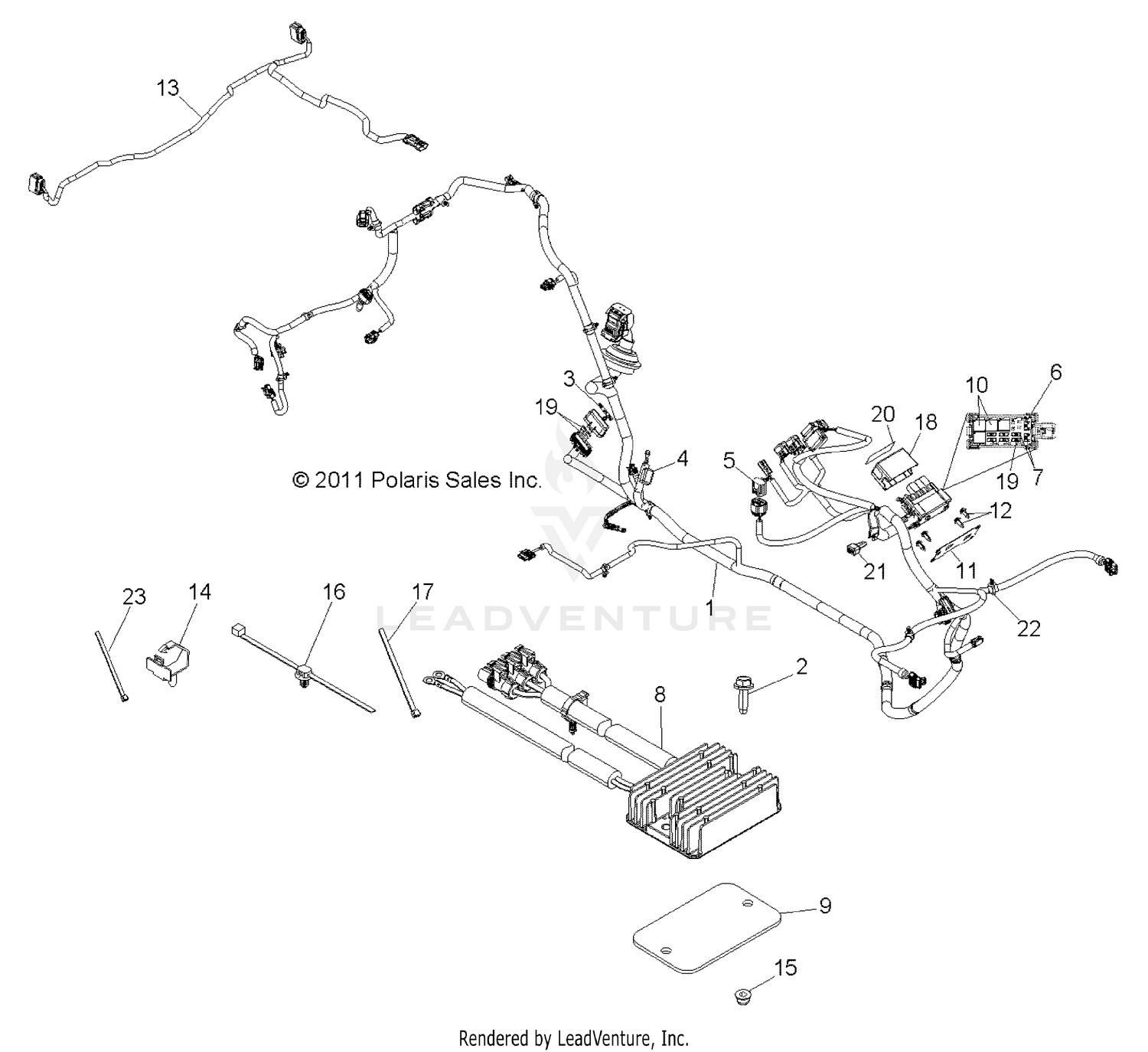

Electrical, Wire Harness - R12jt87ab/ad/as/aw/9eaw (49rgrharness12rzrxp900) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2411817
|
$1,049.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Harness, Chassis
2411749
|
$1,104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bolt
7518530
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Decal, Power Fuse
7177211
|
$0.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cover, Diagnostic w/Clip
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Regulator
4013231
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Regulator
4013904
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Plate, Heat Sink, Regulator
5254610
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plate, Fuse Mount
5253675
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rivet
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Harness, Box
2411805
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clip, Routing
7670109
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cover, Relay/Fuse Center
5438758
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Decal, Relay/Fuse Block
7176911
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
Diode, 6 AMP
2410000
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Unavailable |
|||
|
#23
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
