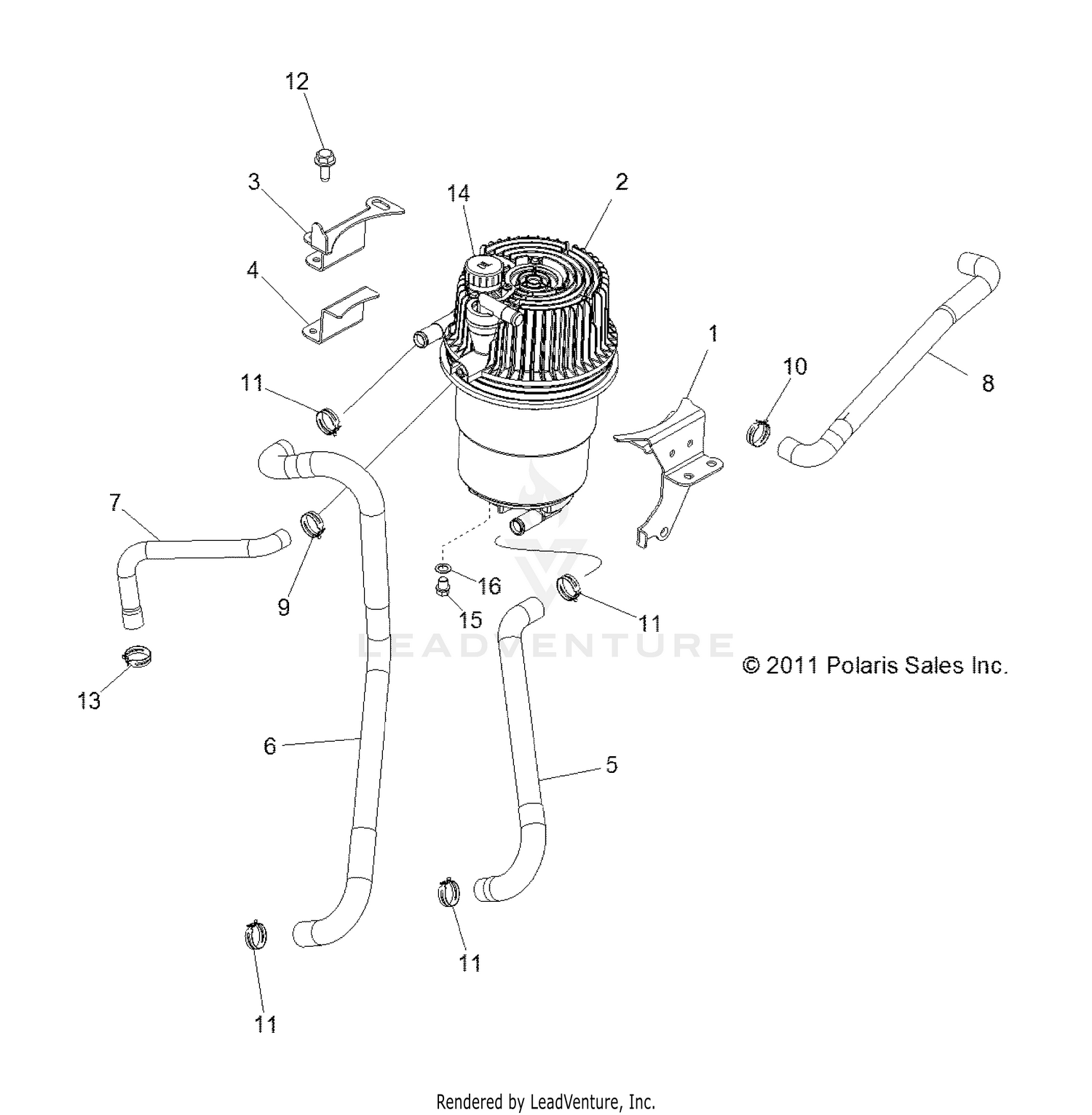

Engine, Oil Tank And Lines - R12jt87ab/ad/as/aw/9eaw (49rgroiltank12rzrxp4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Mount, Oil Bottle, Front
1018059
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Oil Tank
1204213
|
$315.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bracket, Oil Bottle, Upper, Rear
5254062
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket, Oil Bottle, Lower, Rear
5254063
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Line, Main, Oil Supply
5413931
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Line, Main, Oil Return
5413932
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Line, Oil/Air, Top
5413933
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Line, Oil Bottle Vent
5413934
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Clamp, Hose, Spring
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clamp, Springband
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp, Constant Tension
7081415
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Bolt
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clamp, Hose, Spring
7081533
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIPSTICK-(105188)
5439524
Superseded by 5450333
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Plug, Drain
7052548
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Seal
0451514
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
