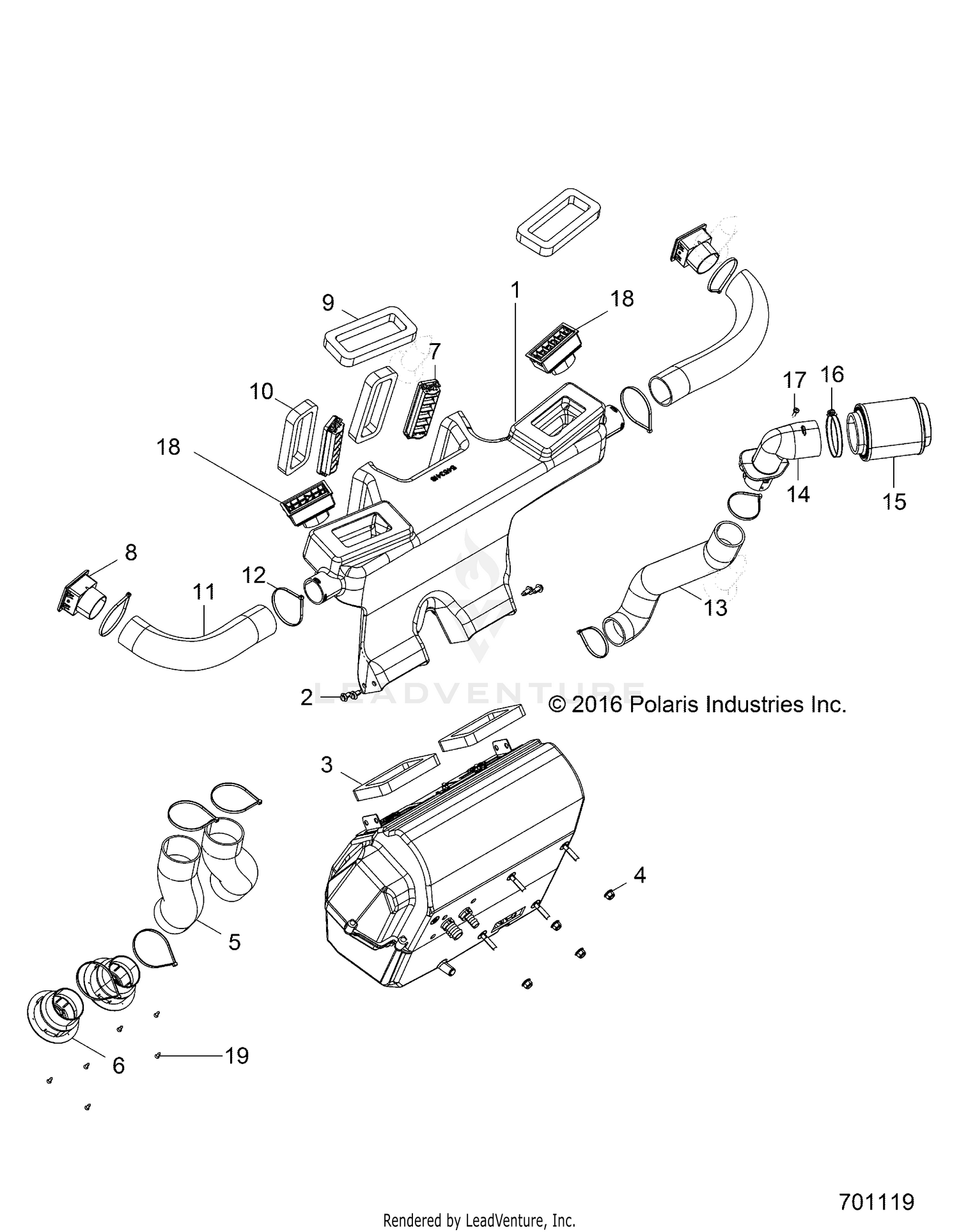

Body, Hvac Ducting - R17rtu99av/bv (701119) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISTRIBUTOR-HVAC
3121059
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
DISTRIBUTOR-HVAC
3120149
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL-HVAC
3120155
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUCT-FOOT
3120154
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VENT-ROUND
3120150
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VENT-RECT
3120156
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VENT-SQ
3120157
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL-DEFROST
3120158
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL-DASH,CENTER
3120159
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUCT-UPPER
3120151
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE-FRESH-AIR
5453419
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUPPORT-FILTER
5453415
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-FILTER,AIR BOX
1262218
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
-------
|
|||
|
Unavailable |
|||
|
#17
SCREW
-------
|
|||
|
Unavailable |
|||
|
#18
VENT-RECTANGLE
5452875
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-FLHD-#6-20X.50 ZP
7519766
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
