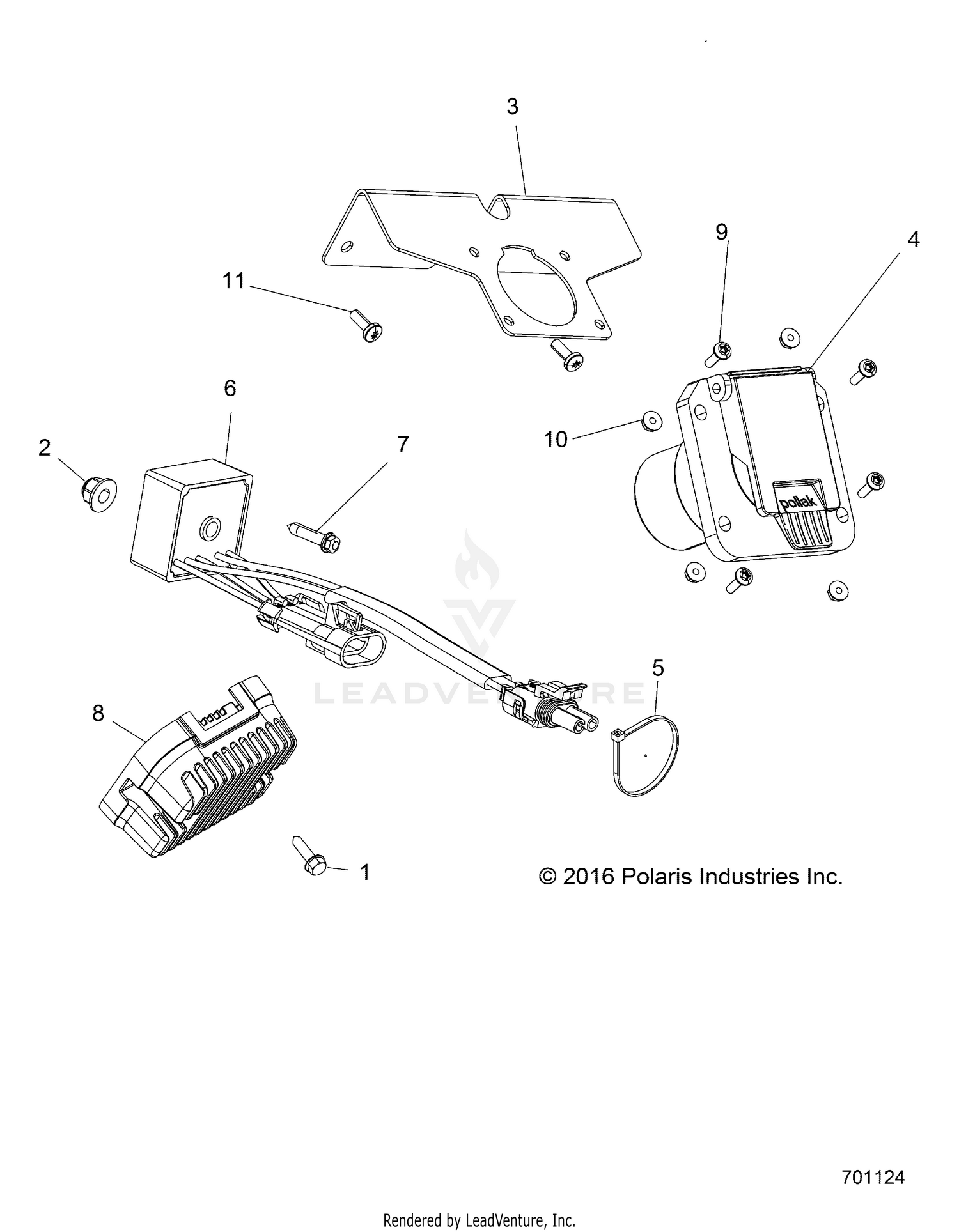

Electrical, Sensors And Modules - R17rt_99 All Options (701124) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW
7519342
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH-SOCKET,AUX,RGR
4016407
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-PLUG,RR,ACCY PWR,M.BLK
5263280-458
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RELAY, SOLID STATE, 9 AMP, LONG
4012829
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
7518612
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
REGULATOR-3PH,50A,SERIES,HISPD
4014856
Superseded by 4016868
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
REGULATOR-3PH,50A,SERIES,HISPD
4016868
|
$154.99 | ||
|
Unavailable |
|||
|
#9
SCR-#10-24-5/8-PN/TORX-M
7512027
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-#10-24 NYLON INSERT FLG Y
7518287
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
