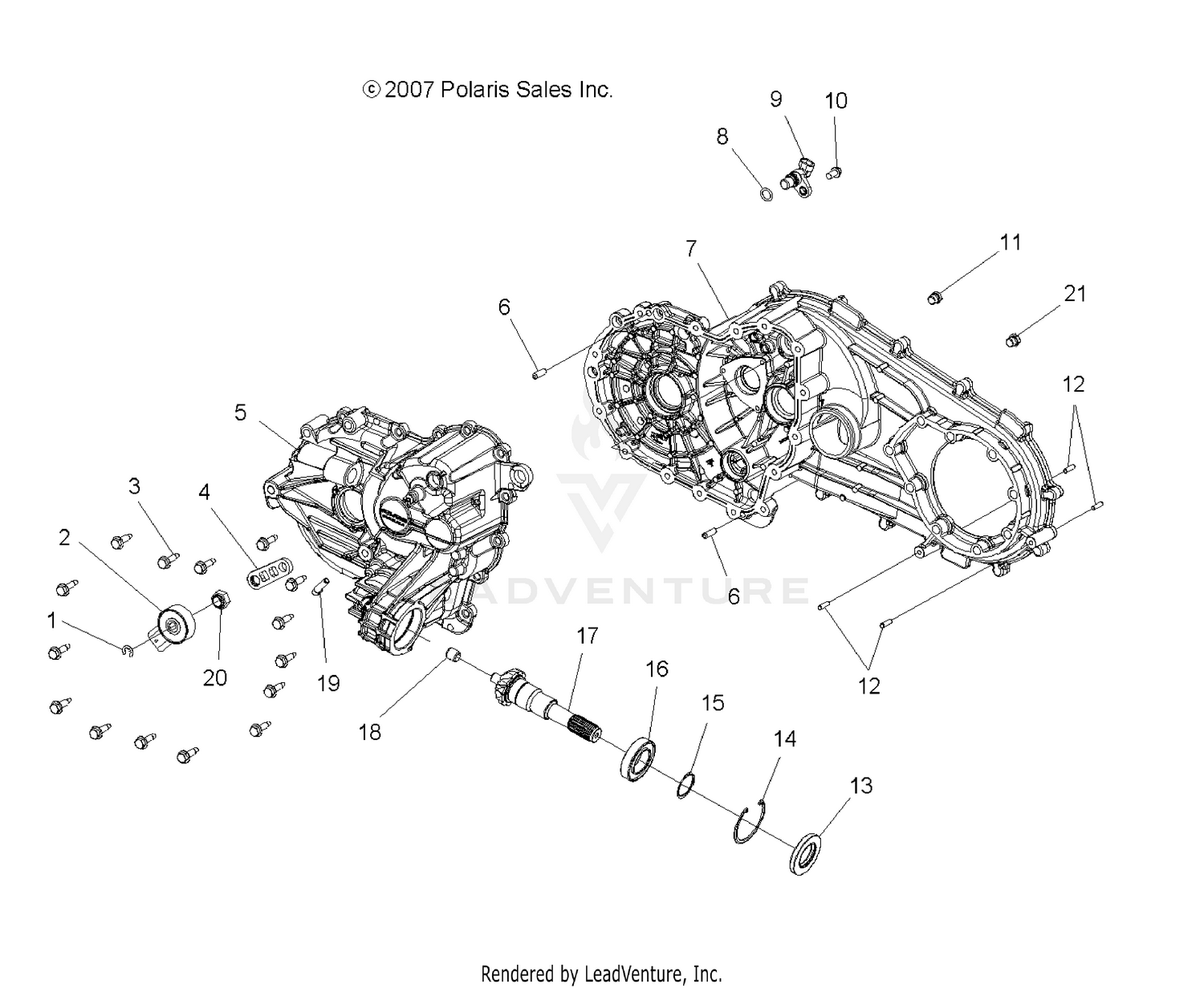

Drive Train, Main Gearcase - A09lh27ax/az (49atvtranscvr08sp300) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Transmission, 4x4
1332699
|
$1,279.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Ring, Retaining
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH-ROTARY,6 PIN
3233835
Superseded by 3236115
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Screw
3234898
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bellcrank
3234587
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
Case, RH
3234450
|
$348.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pin, Dowel
3234244
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Transmission, 4x4
3234611
Superseded by 1332699
|
$1,279.99 | ||
|
Unavailable |
|||
|
#8
O-RING
3234302
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR-SPEED,TRANS
4012167
Superseded by 4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
3234311
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plug
3234333
|
|||
|
Unavailable |
|||
|
#12
Pin, Dowel
3234330
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Seal
3234315
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,RETNING BVLD INTRNL 2.440
3234312
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Ring, Retaining
3234310
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
Bearing, Ball
3233265
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Shaft, 11T
3234630
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bearing
3234313
|
$5.99 | ||
|
Unavailable |
|||
|
#19
Tube, Vent
3234230
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Nut
3234316
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
Plug, Drain w/Magnet
3234610
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
