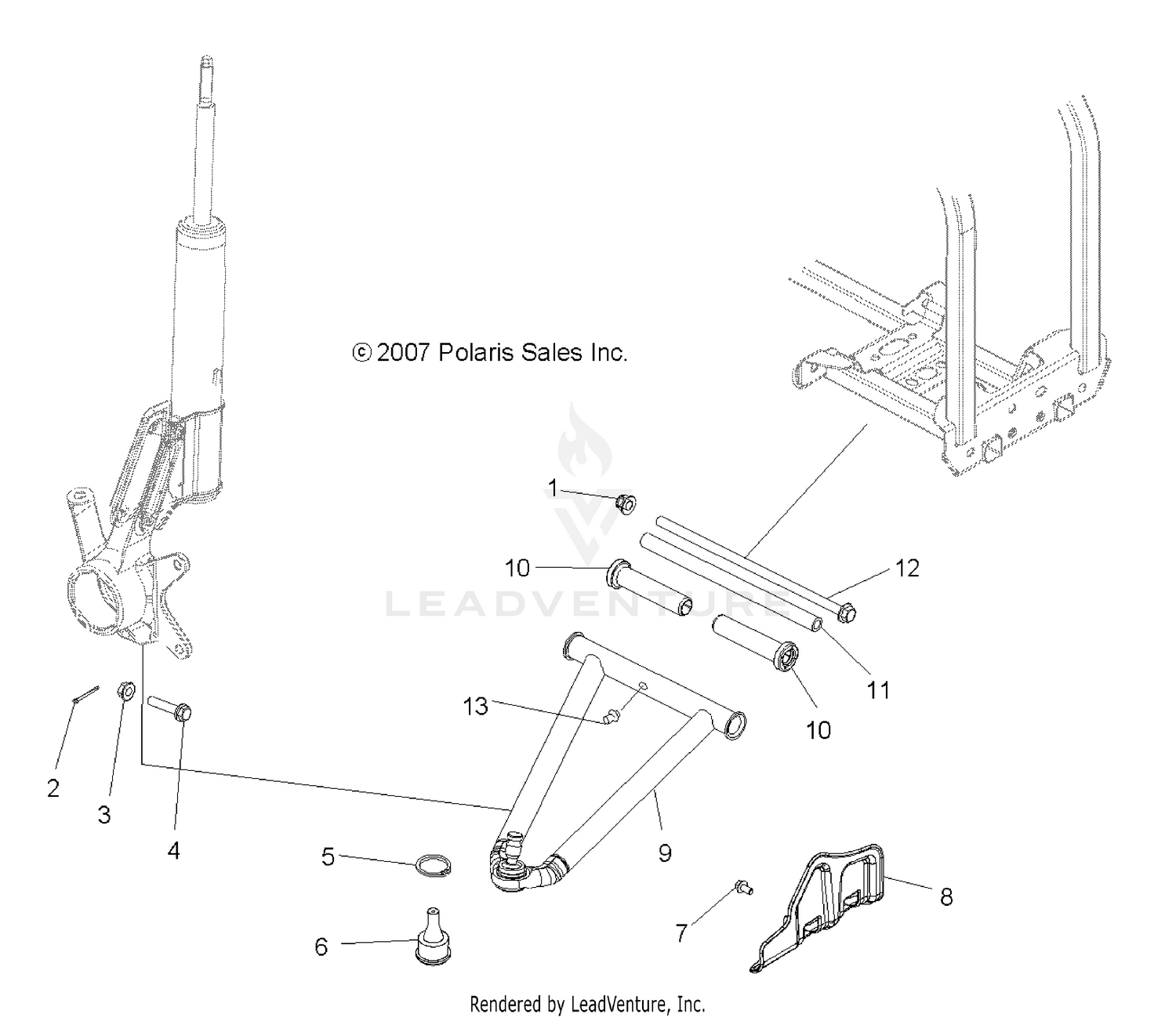

Suspension, A-arm And Strut Mounting - A09lh27ax/az (49atvaarm08sp300) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Nut, Flange
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Pin, Cotter
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Flange
7547317
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7518698
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ring, Retainer, External
7710533
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Joint, Ball
7081263
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Shield, CV, RH, Black
5436412-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Shield, CV, LH, Black
5436411-070
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
A-Arm, 4x4, Black, LH
1542616-067
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
A-Arm, 4x4, Black, RH
1542617-067
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bushing, A-Arm, Long, Grey
5436973
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Tube, Pivot
5134926
Superseded by 5136324
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw, Flange
7518458
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fitting, Lubrication
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
