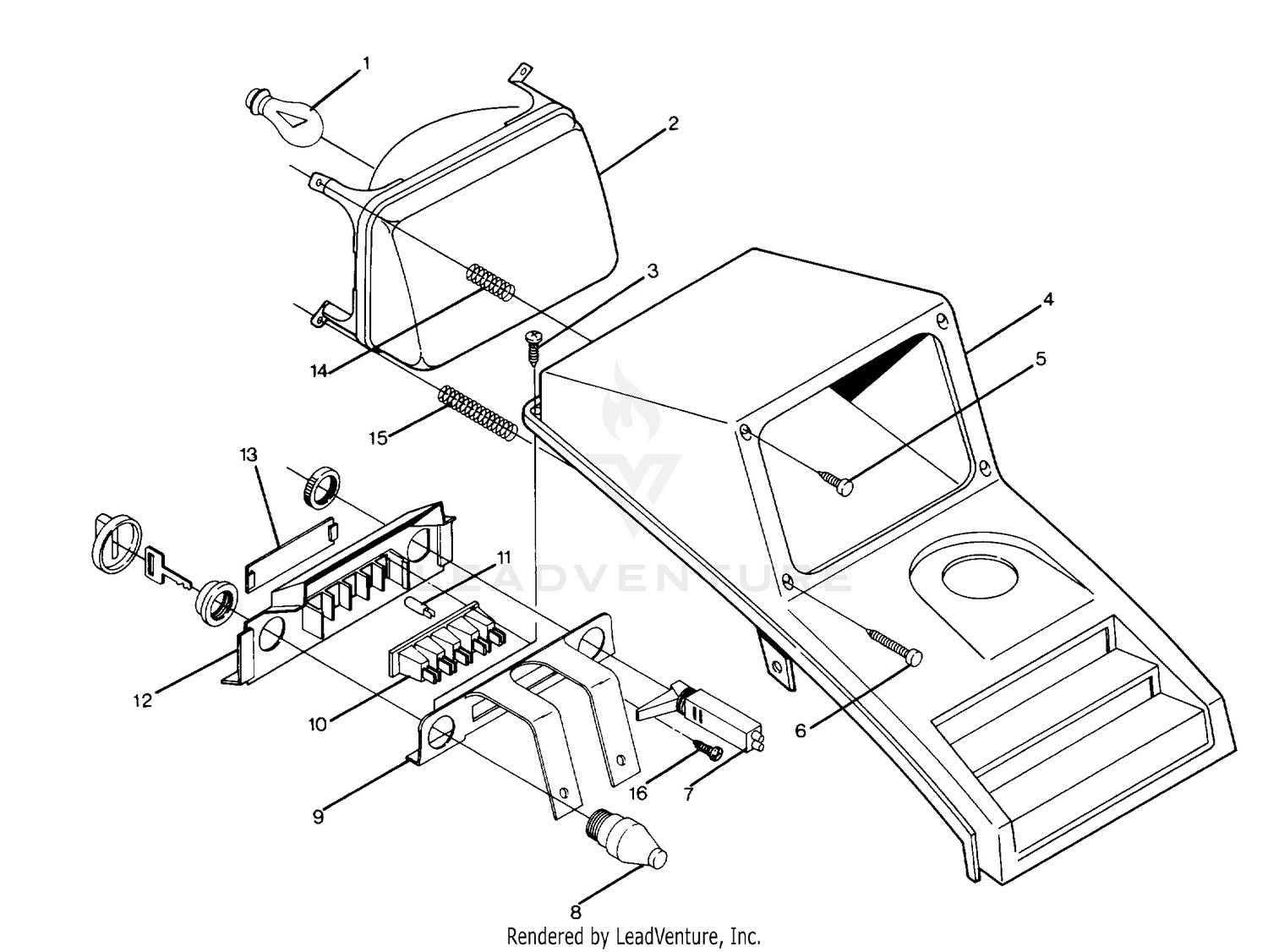

Headlight Assembly (4916351635007a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, H/L
4030028
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT ASM.
4032038
|
|||
|
Unavailable |
|||
|
#3
SCREW(10)
7512017
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, OIL TANK [No Longer Available]
5430973
|
|||
|
Unavailable |
|||
|
#5
Screw
4032003
Superseded by 7518157
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,ADJUST,(ATV)(10)
4032042
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KIT-CHOKE CONTROL
2200188
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, CHOKE
7080371
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH, IGNITION
4110086
Superseded by 4110140
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRKT,IGN.PANEL Substituted by 5220965-067
5220965
|
|||
|
Unavailable |
|||
|
#10
STRIP, SOCKET
4032037
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB
4030042
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PANEL, IGNITION
5430995
|
|||
|
Unavailable |
|||
|
#13
LENS ASM,PILOT LIGHT
2652056
|
|||
|
Unavailable |
|||
|
#14
SPRING-ADJ
4032002
|
$15.49 | ||
|
Unavailable |
|||
|
#15
SPRING,ADJ.
4032041
|
|||
|
Unavailable |
|||
|
#16
SCREW, SEM(10)
7511862
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
