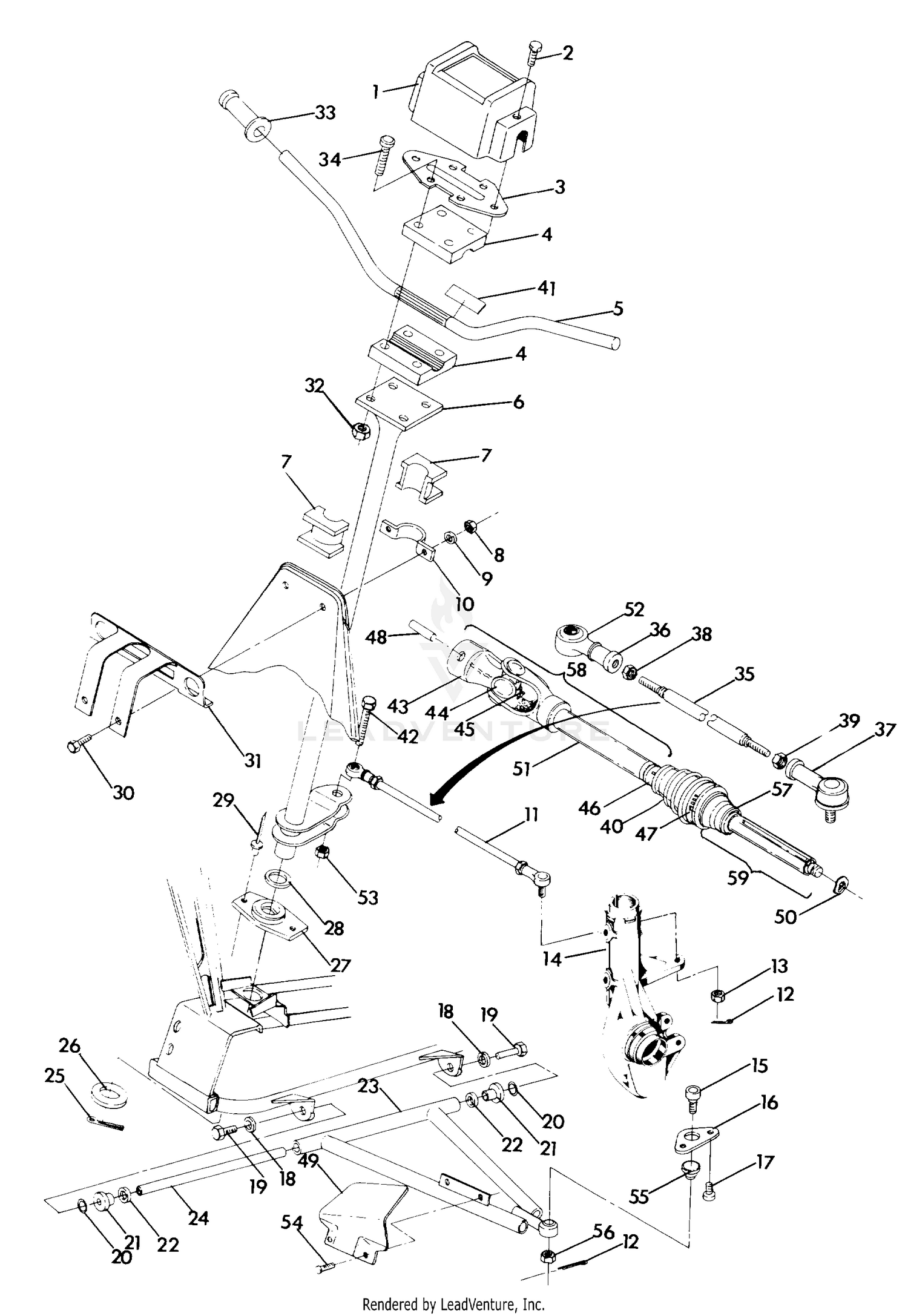

Steering Assembly 4x4 -- Updated 4/89 (49173717370015) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD, HANDLEBAR
5810379
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
7512286
Superseded by 7515197
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Mount, Handlebar Pad
5220946
Superseded by 5245051
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
BLOCK,HANDLEBAR
5630187
Superseded by 5630187-067
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE,HANDLEBAR,BLK
5224316
Superseded by 5242988-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
POST, STEERING Substituted by 1843030-067
1843030
|
|||
|
Unavailable |
|||
|
#7
BUSHING,UPPER,STEERING
5430966
Superseded by 5433416
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, STEERING BUSHING, UPPER
5220887
Superseded by 5257028
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIE ROD ASM. Substituted by 1822310
1822081
|
|||
|
Unavailable |
|||
|
#12
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CASTLE(10)
7546904
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HUB STRUT ASM,LH Substituted by 2200316
1843031
|
|||
|
Unavailable |
|||
|
#14
HUB STRUT ASM,RH Substituted by 2200317
1843032
|
|||
|
Unavailable |
|||
|
#15
BALL-JOINT,GREASELESS,STRUT
7080364
Superseded by 7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING
5410458
|
|||
|
Unavailable |
|||
|
#21
KIT,A-ARM BUSH.(PRE-93,ATV)
3576509
Superseded by 2200474
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER(10)
7555774
|
|||
|
Unavailable |
|||
|
#23
A FRAME, LH Substituted by 1580033-067
1580033
|
|||
|
Unavailable |
|||
|
#23
KIT,A-FRAME,RH
1580034
Superseded by 2200482
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHAFT,'A-ARM'
5020529
|
|||
|
Unavailable |
|||
|
#25
PIN, COTTER(10)
7661404
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSHING(10)
7555781
|
$2.99 | ||
|
Unavailable |
|||
|
#27
BUSHING,LOWER STRG.
5430895
Superseded by 5431570
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSHING(10)
7556401
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET-3/16-.090-.290
7661620
Superseded by 7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT(10)
7512315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRKT,IGN.PANEL Substituted by 5220965-067
5220965
|
|||
|
Unavailable |
|||
|
#32
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Grip, Handlebar
5431030
Superseded by 5433834-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT,(10)
7512265
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
TIE ROD
5020528
|
|||
|
Unavailable |
|||
|
#36
ROD END ASM,/SEAL BOOT
7060149
Superseded by 1822179
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD END
7060147
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT HEX(10)
7542401
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, LH, 10 MM.(10)
7546902
|
$3.29 | ||
|
Unavailable |
|||
|
#40
BOOT, CV JOINT
3260113
|
|||
|
Unavailable |
|||
|
#41
DECAL,O'RIDE SWITCH Substituted by 7076274
7072390
|
|||
|
Unavailable |
|||
|
#42
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
YOKE, FRONT GEARCASE
3260101
Superseded by 3260133
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
KIT,CROSS&BEARING
3260104
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
FITTING, LUBE
7080359
|
|||
|
Unavailable |
|||
|
#46
CLAMP, BAND
3260105
Superseded by 3260123
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP, LARGE
3260107
|
|||
|
Unavailable |
|||
|
#48
CLEANER,CU JOINT [No Longer Available]
2870770
|
|||
|
Unavailable |
|||
|
#48
TUBE,GREASE(CV JOINT)
3260110
|
|||
|
Unavailable |
|||
|
#48
PIN-SPRING,5/16 X 1 5/8-Y
7661913
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Shield, CV Front, Black, RH
5431149
Superseded by 5431149-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Shield, CV Front, Black, LH
5431150
Superseded by 5431150-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER(10)
5211101
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SHAFT,DRIVE,FRONT
1380020
|
|||
|
Unavailable |
|||
|
#52
BOOT, SEAL, ROD END
5410540
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
SCREW(10)
7512017
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOOT-BALLJOINT,GREASELESS,STRT
5410548
Superseded by 5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SLEEVE,DR.SHAFT SEAL
5222227
|
|||
|
Unavailable |
|||
|
#58
CARDAN WELD,(REPLACE.)
1380036
|
|||
|
Unavailable |
|||
|
#59
JOINT,CV,(REPLACE.) Substituted by 1380042
1380035
|
|||
|
Unavailable |
|||
