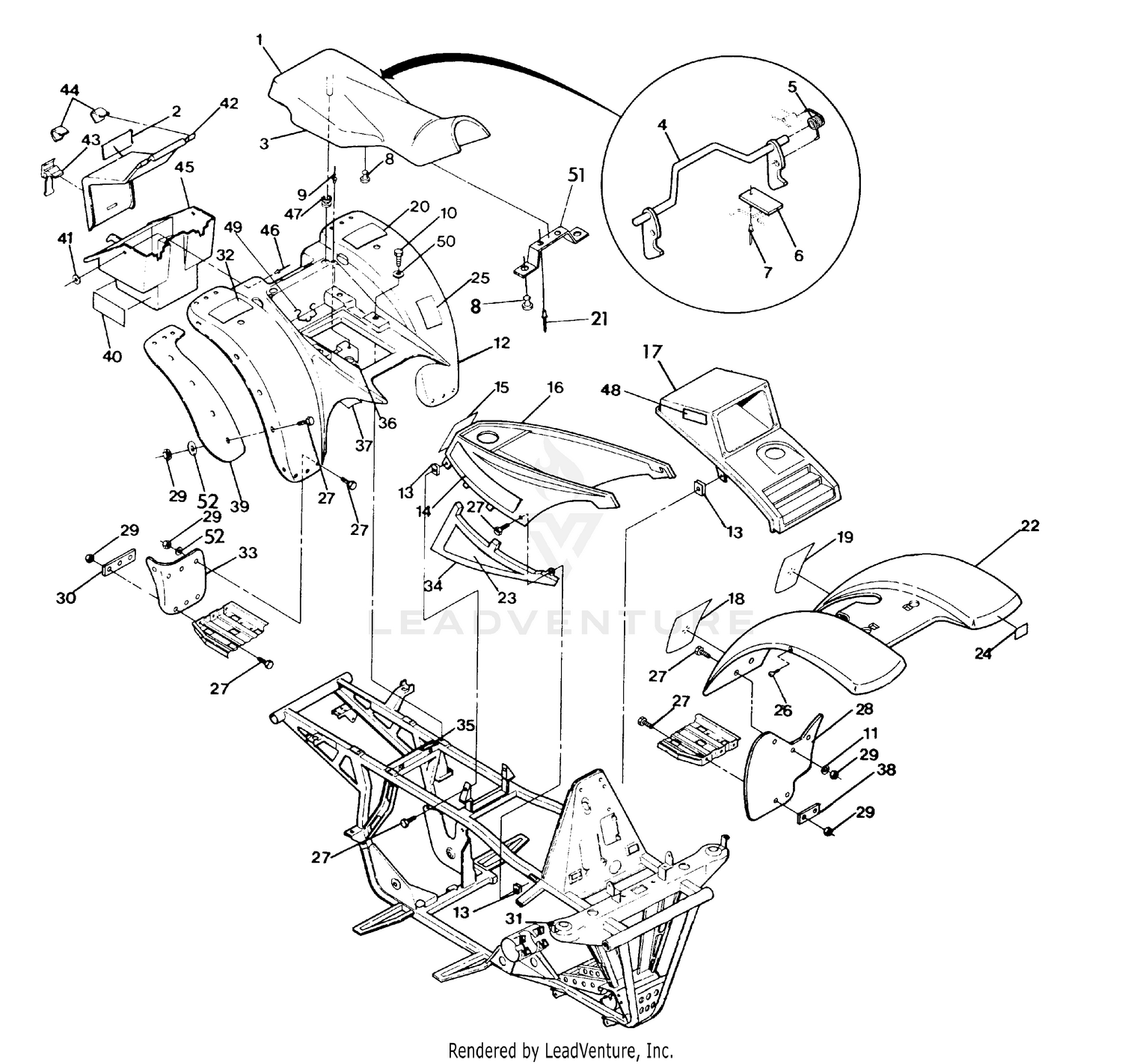

Body Assembly 250 4x4 / W928127 (4922872287a005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SEAT,GEN II,BLK
2681512
Superseded by 2682492-070
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
|
|||
|
Unavailable |
|||
|
#3
COVER,SEAT,(BLUE) Substituted by 2681723-157
2681513
|
|||
|
Unavailable |
|||
|
#4
LATCH,SEAT
1011558
|
|||
|
Unavailable |
|||
|
#5
SPRING, LATCH
7041158
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET,3/16X.402(50)
7621432
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAB,REAR,COOLBLUE
5430991-164
|
|||
|
Unavailable |
|||
|
#13
NUT, SPEED(10)
7670060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DECAL, '4X4'
7073450
|
|||
|
Unavailable |
|||
|
#15
DECAL(CPSC),AGE WARN. Substituted by 7074827
7072933
|
|||
|
Unavailable |
|||
|
#16
COVER,FUELTANK,BON.BLUE
5431197-157
|
|||
|
Unavailable |
|||
|
#17
COVER,OIL-H/L(COOLBLUE)
5430973-164
|
|||
|
Unavailable |
|||
|
#18
DECAL(CPSC),WARNING DISC
7073147
|
|||
|
Unavailable |
|||
|
#19
DECAL,WARNING(CPSC) [No Longer Available]
7072693
|
|||
|
Unavailable |
|||
|
#20
DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]
7072786
|
|||
|
Unavailable |
|||
|
#21
RIVET
7621481
|
|||
|
Unavailable |
|||
|
#22
CAB,FR.,COOLBLUE Substituted by 2631549-164
5430990-164
|
|||
|
Unavailable |
|||
|
#23
DECAL, SIDE PANEL [No Longer Available]
7072884
|
|||
|
Unavailable |
|||
|
#24
LABEL, 'U.S.A.'
7073024
|
|||
|
Unavailable |
|||
|
#25
DECAL(CPSC),TIRE PRESS(4X4) [No Longer Available]
7072810
|
|||
|
Unavailable |
|||
|
#26
CLIP, PUSH-ON(10)
7670052
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
MUDFLAP,LH FRONT
5850086
|
|||
|
Unavailable |
|||
|
#28
MUDFLAP,RH FRONT
5850087
|
|||
|
Unavailable |
|||
|
#29
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRKT, LH MUD FLAP
5211131-067
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
|
|||
|
Unavailable |
|||
|
#33
MUDFLAP,LH,LOW,REAR
5850076
|
|||
|
Unavailable |
|||
|
#33
MUDFLAP,RH,LOW REAR
5850077
|
|||
|
Unavailable |
|||
|
#34
COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157
5430970-157
|
|||
|
Unavailable |
|||
|
#34
COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157
5430971-157
|
|||
|
Unavailable |
|||
|
#35
DECAL,FILTER ELEMENT [No Longer Available]
7072791
|
|||
|
Unavailable |
|||
|
#36
BRKT,R.HOLDDOWN
5220880
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
TAPE,FOIL,R.CAB
5810416
|
|||
|
Unavailable |
|||
|
#38
BRKT,RH MUD FLAP
5211020-067
|
|||
|
Unavailable |
|||
|
#39
FLAP,MUD,LH REAR
5850060
|
|||
|
Unavailable |
|||
|
#39
FLAP,MUD,RH REAR
5850061
|
|||
|
Unavailable |
|||
|
#40
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#41
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
LID,TOOLBOX(92-4X4,250)
5430769-1029
|
|||
|
Unavailable |
|||
|
#43
STRAP,TOOL COMPARTMENT
5410425
|
$9.29 | ||
|
Unavailable |
|||
|
#44
CLIP, LID HINGE(10)
7670050
|
|||
|
Unavailable |
|||
|
#45
BOX,TOOL COMP.
5430882
|
|||
|
Unavailable |
|||
|
#46
RIVET(50)
7621462
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
GROMMET
5410413
|
|||
|
Unavailable |
|||
|
#48
DECAL,'250',ORANGE [No Longer Available]
7073442
|
|||
|
Unavailable |
|||
|
#49
RETAINER,TOOL POUCH
7080385
|
|||
|
Unavailable |
|||
|
#50
WASHER,WROUGHT(10)
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BRKT,SUPPORT SEAT BASE
5222837-067
|
|||
|
Unavailable |
|||
|
#52
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
