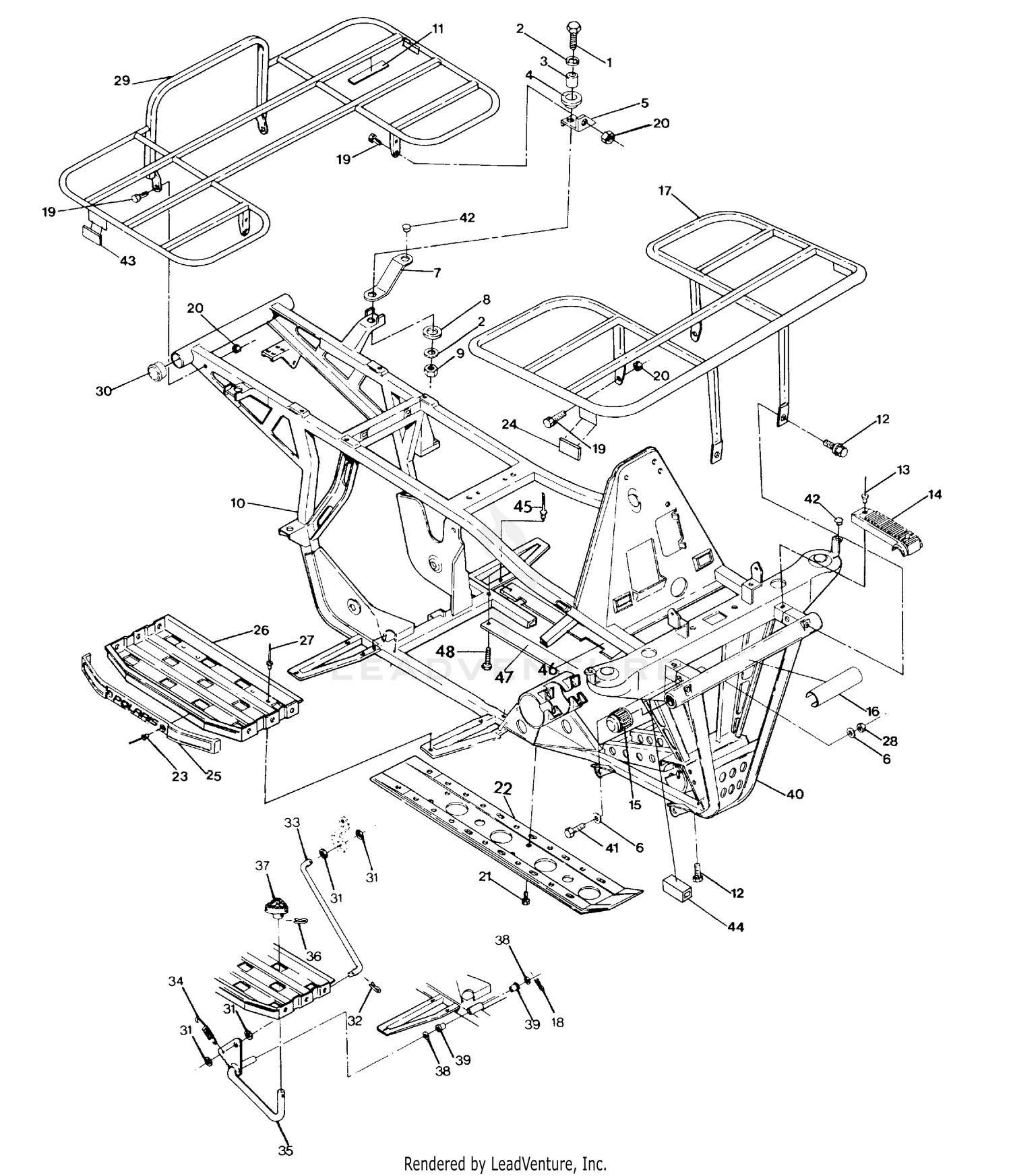

Frame Assembly W/ Racks 250 4x4 / W928127 (4922872287a007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER(10)
7555716
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-RES. MT.
5010192
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Dampener, Vibration
5410241
Superseded by 5412508
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT,LH SUPPORT RACK Substituted by 5243468-067
5220899-067
|
|||
|
Unavailable |
|||
|
#5
BRKT,RH SUPPORT RACK Substituted by 5243469-067
5220901-067
|
|||
|
Unavailable |
|||
|
#6
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT,R.FENDER
5220902-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,RUBBER
5410436
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRAME,SQUARE(91'4X4') [No Longer Available]
1040253-067
|
|||
|
Unavailable |
|||
|
#11
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#13
RIVET(50)
7621229
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,BRKT,BUMPER MT.
5431023
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP,BUMPER,FR,BON.BLUE
5431013-157
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
DECAL, F.SUSP.
7073455
|
|||
|
Unavailable |
|||
|
#17
RACK,FRT.BLK.
2670135-067
|
|||
|
Unavailable |
|||
|
#18
COTTER PIN(10)
7661401
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW(10)
7515355
|
|||
|
Unavailable |
|||
|
#20
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, ROCK, BLK.
5222272-067
|
|||
|
Unavailable |
|||
|
#23
RIVET,(50)
7661825
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
REFLECTOR ASM,AMBER
2670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TRIM, FOOTREST
5431484
|
|||
|
Unavailable |
|||
|
#26
FOOTPAD,LH,SILVER
1040189
Superseded by 1040274-117
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTPAD,RH,(ATV) Substituted by 1040275-117
1040275
|
|||
|
Unavailable |
|||
|
#27
RIVET-3/16-.090-.290
7661620
Superseded by 7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Unavailable |
|||
|
#29
RACK,REAR,BLK.
2670136-067
|
|||
|
Unavailable |
|||
|
#30
CAP, BUMPER, 4 WHL.(10) Substituted by 5410794
5430823
|
|||
|
Unavailable |
|||
|
#31
WASHER(10)
7555827
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, COTTER(10)
7661103
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROD,BRAKE LINKAGE Substituted by 5224447
5224385
|
|||
|
Unavailable |
|||
|
#34
SPRING-EXHAUST(10)
7042029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PEDAL, BRAKE
1910054-067
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, SPIRAL(10)
7661416
|
|||
|
Unavailable |
|||
|
#37
PEDAL,FOOT
5130715-067
|
|||
|
Unavailable |
|||
|
#38
WASHER THRUST(10)
7558702
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BUSHING-PEDAL PIVOT
5431107
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BUMPER,FR,(BLK.)
2670113-067
|
|||
|
Unavailable |
|||
|
#41
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
REFLECTOR ASM,RED
2670133
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLUG, FRAME
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GUARD,CLUTCH,INNER
5211359-067
|
|||
|
Unavailable |
|||
|
#47
GUARD,CLUTCH,OUTER
5222860-067
|
|||
|
Unavailable |
|||
