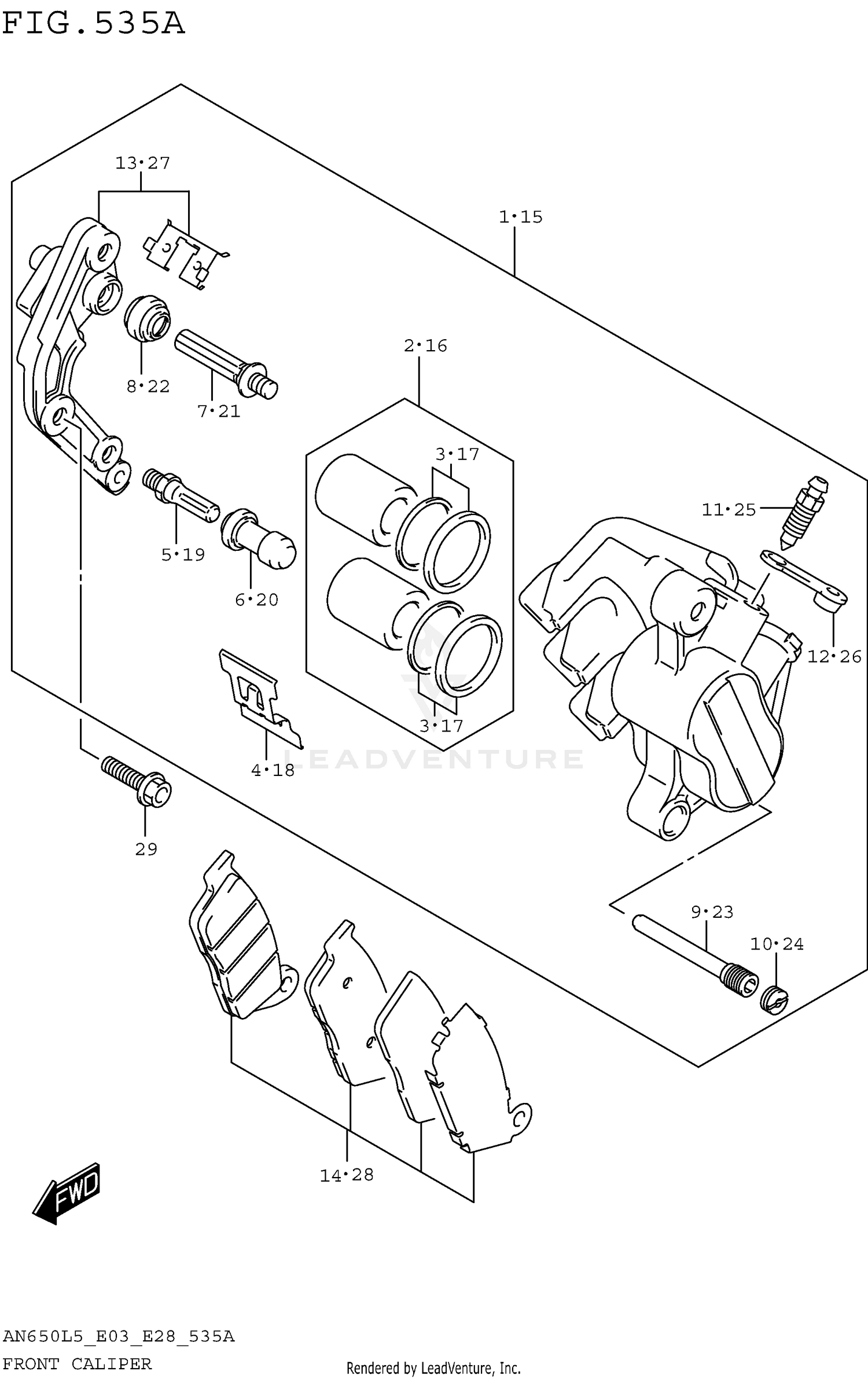

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-26J10-999
|
$502.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59300-26860
|
$44.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
..SEAL SET,PISTON
59300-13820
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING,PAD
59115-21E10
|
$13.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
59382-14500
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT
59386-13A00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
59187-21E10
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT
59303-14500
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
.PIN,HANGER
59145-21E10
|
$20.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PLUG,PIN
59146-21E10
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEEDER
59121-01A00
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CAP,BLEEDER
59122-46H00
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET RH
59151-26J10
|
|||
|
Unavailable |
|||
|
#14
PAD & SHIM SET RH
59101-26810
|
$108.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER ASSY, FRONT LH
59300-26J10-999
|
$527.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON SET
59300-26860
|
$44.57 | ||
|
Unavailable |
|||
|
#17
..SEAL SET,PISTON
59300-13820
|
$17.72 | ||
|
Unavailable |
|||
|
#18
.SPRING,PAD
59115-21E10
|
$13.88 | ||
|
Unavailable |
|||
|
#19
PIN
59382-14500
|
$9.93 | ||
|
Unavailable |
|||
|
#20
BOOT
59386-13A00
|
$8.82 | ||
|
Unavailable |
|||
|
#21
PIN
59187-21E10
|
$25.23 | ||
|
Unavailable |
|||
|
#22
BOOT
59303-14500
|
$6.13 | ||
|
Unavailable |
|||
|
#23
.PIN,HANGER
59145-21E10
|
$20.35 | ||
|
Unavailable |
|||
|
#24
.PLUG,PIN
59146-21E10
|
$6.82 | ||
|
Unavailable |
|||
|
#25
BLEEDER
59121-10G00
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
.CAP,BLEEDER
59122-46H00
|
$4.92 | ||
|
Unavailable |
|||
|
#27
BRACKET LH
59351-26J10
|
|||
|
Unavailable |
|||
|
#28
PAD & SHIM SET LH
59101-26820
|
$108.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (8X28)
09103-08359
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
