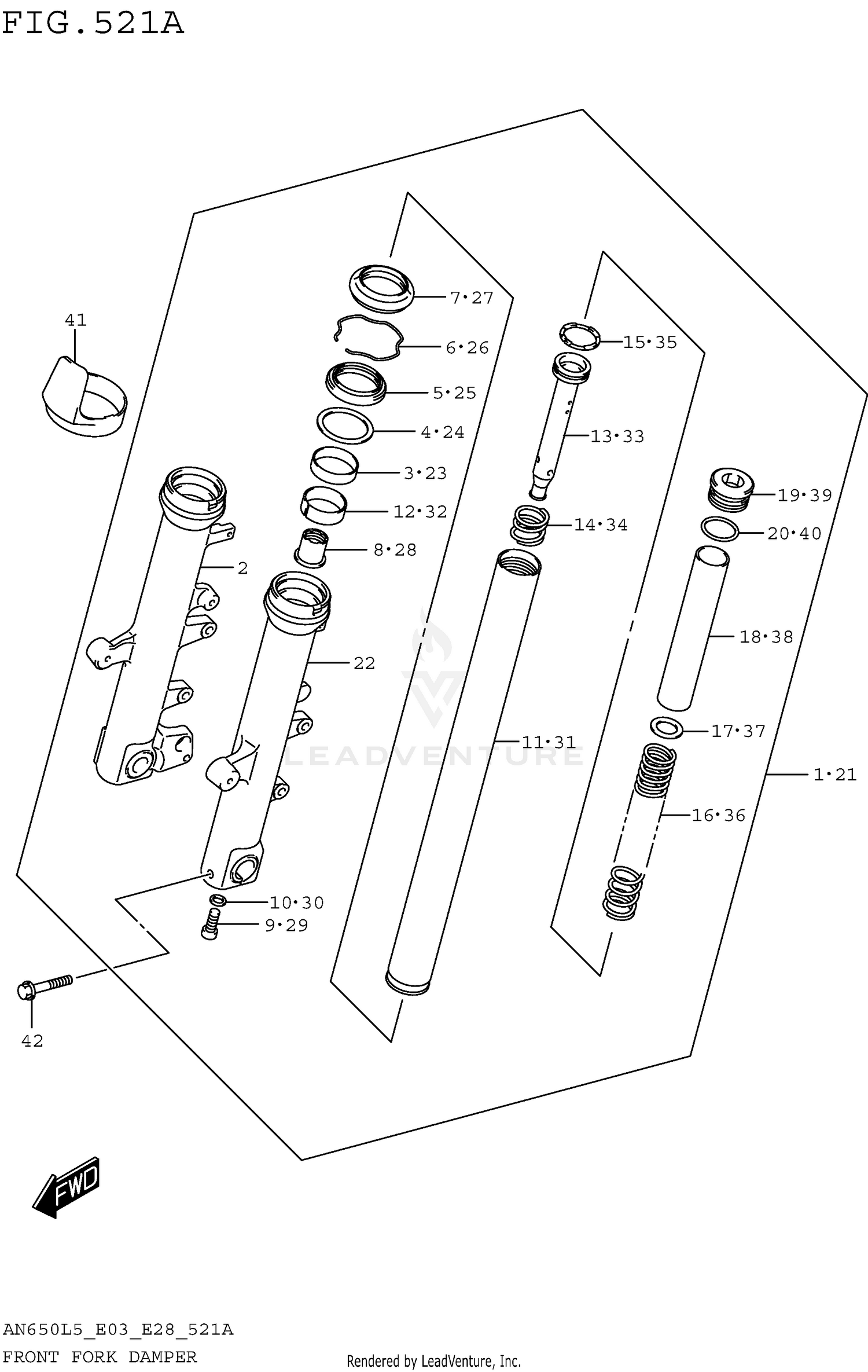

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR
51103-10G90
Superseded by 51103-10G91
|
$671.00 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER RH
51131-10G90
|
$354.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
METAL, SLIDE
51167-26E10
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
51158-05A00
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
51153-10G50
|
$22.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, OIL SEAL STOPPER
51156-49440
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
51173-14F00
|
$25.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIECE, OIL LOCK
51195-33D10
|
$24.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
51148-41310
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
51147-16510
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE, INNER
51110-10G00
|
$370.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON
51121-33D10
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
CYLINDER
51146-10G90
|
$70.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, REBOUND
51177-10G90
|
$10.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, PISTON
51196-31F00
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
51171-10G90
|
$62.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (22.5X35.9X1.6)
51356-10D03
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#19
CAP
51351-10G10
|
$50.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:3.5,ID:31.7)
09280-32001
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY, FRONT FORK LH
51104-10G90
|
$809.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE, OUTER LH
51141-10G90
|
|||
|
Unavailable |
|||
|
#23
METAL, SLIDE
51167-26E10
|
$27.22 | ||
|
Unavailable |
|||
|
#24
WASHER
51158-05A00
|
$6.47 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
51153-10G50
|
$22.97 | ||
|
Unavailable |
|||
|
#26
RING, OIL SEAL STOPPER
51156-49440
|
$5.60 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
51173-14F00
|
$25.60 | ||
|
Unavailable |
|||
|
#28
PIECE, OIL LOCK
51195-33D10
|
$24.72 | ||
|
Unavailable |
|||
|
#29
BOLT
51147-16510
|
$4.82 | ||
|
Unavailable |
|||
|
#30
GASKET
51148-41310
|
$2.15 | ||
|
Unavailable |
|||
|
#31
TUBE, INNER
51110-10G00
|
$370.53 | ||
|
Unavailable |
|||
|
#32
PISTON
51121-33D10
|
$20.97 | ||
|
Unavailable |
|||
|
#33
CYLINDER
51146-10G90
|
$70.90 | ||
|
Unavailable |
|||
|
#34
SPRING, REBOUND
51177-10G90
|
$10.79 | ||
|
Unavailable |
|||
|
#35
RING, PISTON
51196-31F00
|
$7.82 | ||
|
Unavailable |
|||
|
#36
SPRING
51171-10G90
|
$62.83 | ||
|
Unavailable |
|||
|
#37
WASHER (22.5X35.9X1.6)
51356-10D03
|
$7.08 | ||
|
Unavailable |
|||
|
#38
SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#39
CAP
51351-10G10
|
$50.87 | ||
|
Unavailable |
|||
|
#40
O RING (D:3.5,ID:31.7)
09280-32001
|
$2.17 | ||
|
Unavailable |
|||
|
#41
PROTECTOR
51201-31F00
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT,AXLE STOPPER
51166-10G10
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
