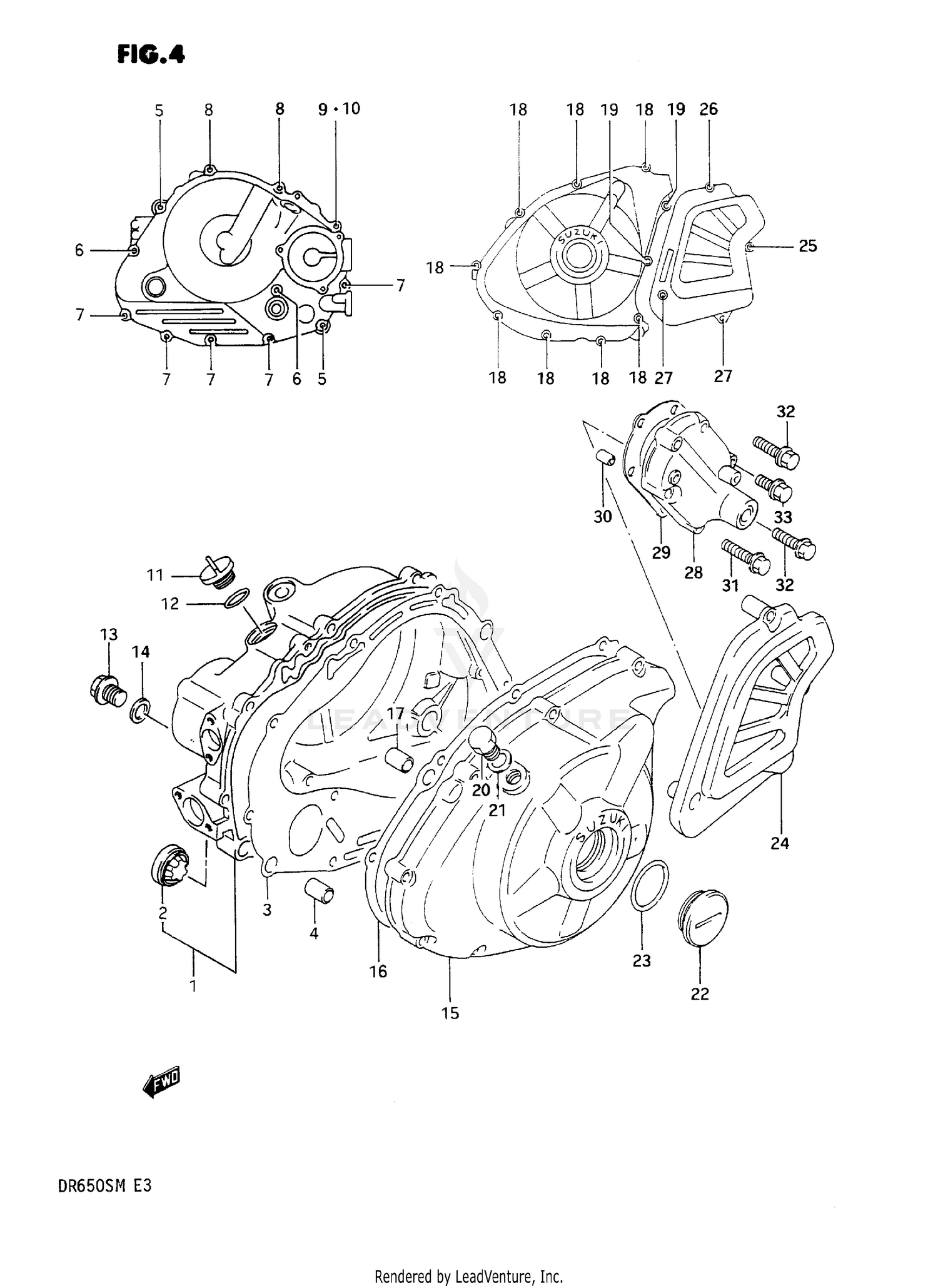

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-12D00
|
$297.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS,OIL LEVEL CHECK
11971-33210
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CLUTCH COVER
11482-12D00
Superseded by 11482-12D01
|
$30.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN (10.4X13X18)
09206-13001
Superseded by 04211-13189
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-06505
Superseded by 01547-0650B
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-06404
Superseded by 01547-0640B
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WATER PUMP
01547-06354
Superseded by 01547-0635B
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FINAL GEAR CASE COVER
01547-06254
Superseded by 01547-0625B
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09103-06141
|
$1.57 | ||
|
Unavailable |
|||
|
#10
WASHER
08322-21064
Superseded by 08322-0106B
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG (20X10)
09259-20016
Superseded by 09259-20019
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (D:3.1,ID:16.8)
09280-17003
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, OIL CHECK
09247-14015
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
09168-14004
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, MAGNETO
11351-12D00
|
$135.26 | ||
|
Unavailable |
|||
|
#16
GASKET, MAGNETO INNER COVER
11483-12D00
Superseded by 11483-12D10
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN (10.4X13X18)
09206-13001
Superseded by 04211-13189
|
$2.32 | ||
|
Unavailable |
|||
|
#18
BOLT
01547-06304
Superseded by 01547-06307
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FINAL GEAR CASE COVER
01547-06254
Superseded by 01547-0625B
|
$2.58 | ||
|
Unavailable |
|||
|
#20
PLUG, T.D.C
09247-12103
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
09168-12002
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG (36X10,SILVER)
09259-36013
Superseded by 09259-36016-20H
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (D:3.1,ID:32.7)
09280-33004
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, ENGINE SPROCKET
11361-12D00
Superseded by 11361-14A01
|
$60.06 | ||
|
Unavailable |
|||
|
#25
BOLT
01547-06454
Superseded by 01547-0645B
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WATER PUMP
01547-06354
Superseded by 01547-0635B
|
$2.88 | ||
|
Unavailable |
|||
|
#27
..BOLT
01547-06205
Superseded by 01547-0620B
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, GEAR SHIFT
11371-12D10
|
$52.92 | ||
|
Unavailable |
|||
|
#29
GASKET, GEAR SHIFT COVER
11485-12D00
Superseded by 11485-12D01
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN
04211-09129
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WATER PUMP
01547-06354
Superseded by 01547-0635B
|
$2.88 | ||
|
Unavailable |
|||
|
#32
BOLT
01547-06304
Superseded by 01547-06307
|
$2.15 | ||
|
Unavailable |
|||
|
#33
..BOLT
01547-06205
Superseded by 01547-0620B
|
$2.58 | ||
|
Unavailable |
|||
