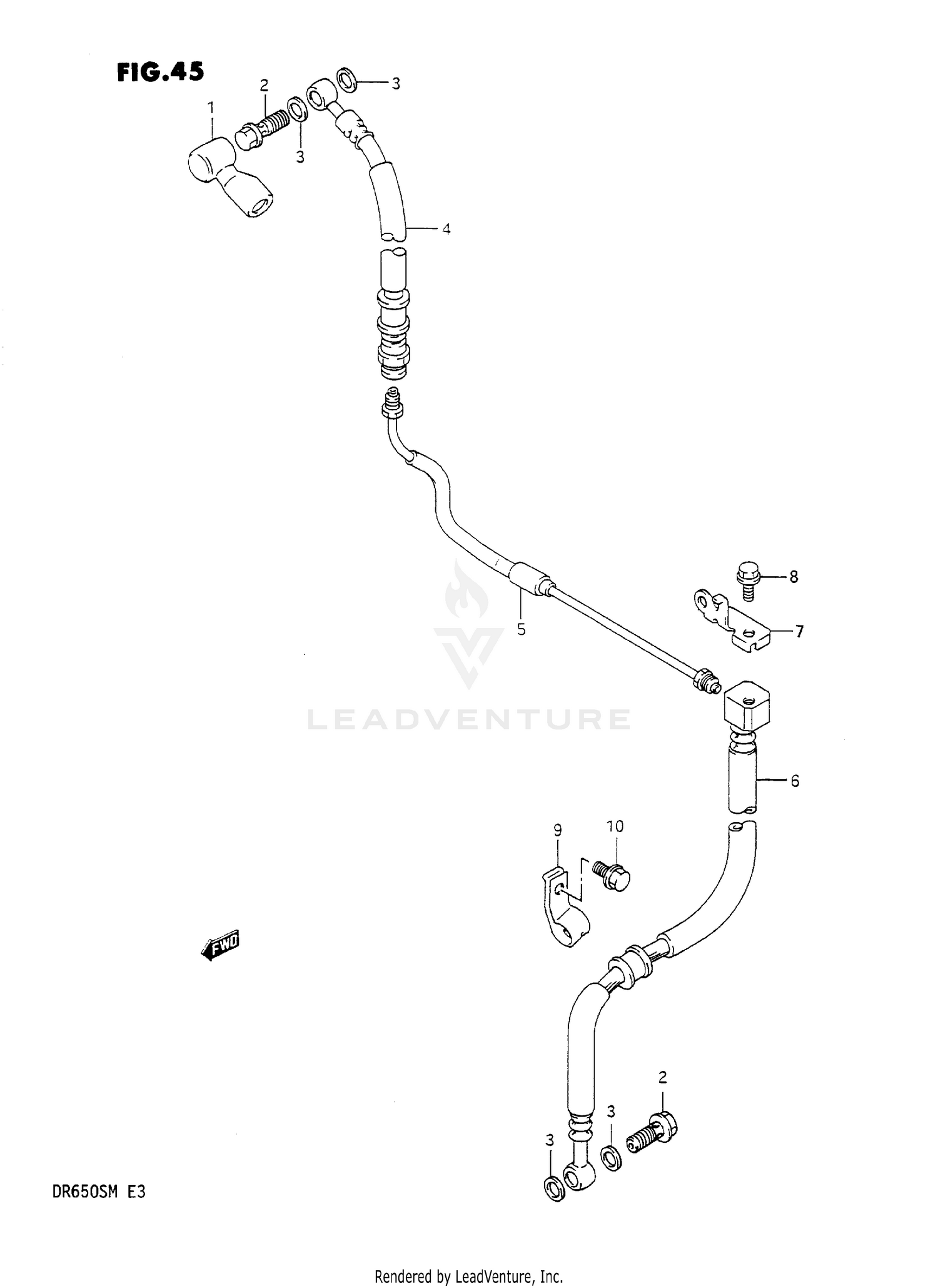

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT,MASTER CYL
59711-04700
Superseded by 59711-04701
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
09360-10017
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
.WASHER (10X15X1.5)
09161-10009
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, FRONT BRAKE NO.1
59480-14A20
|
$27.36 | ||
|
Unavailable |
|||
|
#5
PIPE, FRONT BRAKE
59250-14A20
|
$17.38 | ||
|
Unavailable |
|||
|
#6
HOSE, FRONT BRAKE NO.2
59240-12D00
|
$58.73 | ||
|
Unavailable |
|||
|
#7
BRACKET, BRAKE HOSE NO.2
59243-12D00
|
$5.13 | ||
|
Unavailable |
|||
|
#8
BOLT
01937-06105
|
|||
|
Unavailable |
|||
|
#9
CLAMP, BRAKE HOSE NO.2
59268-12D00
|
$5.01 | ||
|
Unavailable |
|||
|
#10
BOLT
01547-06127
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
