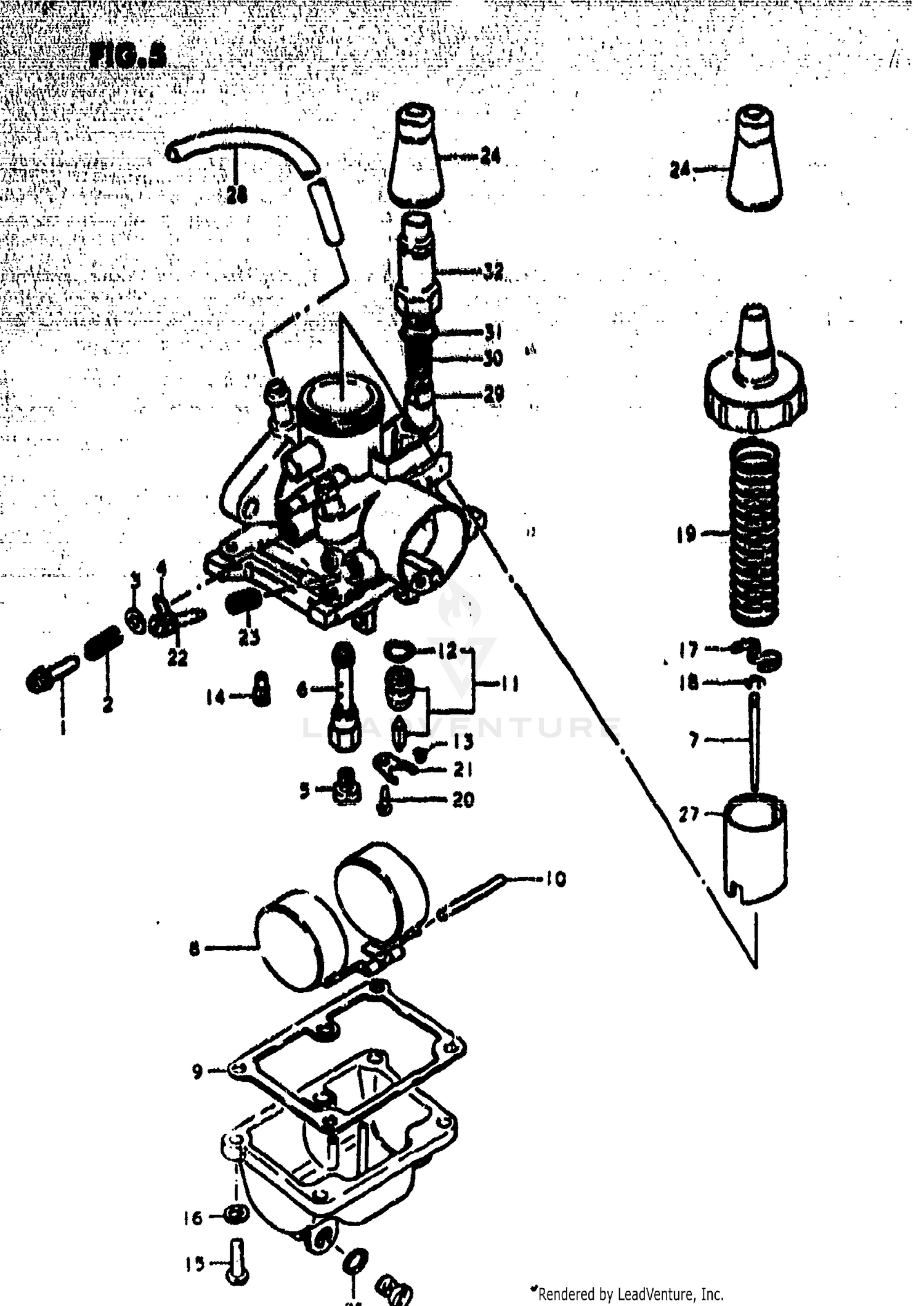

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-02510
Superseded by 13200-02341
|
$190.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
ADJUSTER
13267-35011
Superseded by 13483-16A01
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
13268-35010
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
13291-35010
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O-RING
13295-33010
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, MAIN (75)
09491-77005
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, NEEDLE (E-6)
09494-00266
|
$15.52 | ||
|
Unavailable |
|||
|
#7
NEEDLE, JET (3F13-3)
13383-02330
|
$14.78 | ||
|
Unavailable |
|||
|
#8
FLOAT
13252-02410
Superseded by 13250-02500
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
13251-02410
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
13254-20010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE ASSY, NEEDLE
13370-02421
|
$57.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
.O-RING
13374-47610
Superseded by 13374-46710
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
13377-02410
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, PILOT (15)
09492-15007
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-04168
Superseded by 02112-0416A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, SPRING
13581-04010
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
E RING
13394-12110
Superseded by 13394-40D00
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
13573-02330
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-03088
Superseded by 02112-0308A
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
13373-46710
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, AIR
13269-04010
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
13268-01010
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT
13681-33010
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
13249-05010
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG, DRAIN
13247-05010
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE, THROTTLE (OA:2.0)
13551-02330
|
$36.21 | ||
|
Unavailable |
|||
|
#28
HOSE(4.5X8.5X60
13683-45050
Superseded by 09355-45001-600
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
VALVE, STARTER
13411-01010
|
$17.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
13417-01010
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#31
O RING
13278-02330
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP
13418-02330
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
