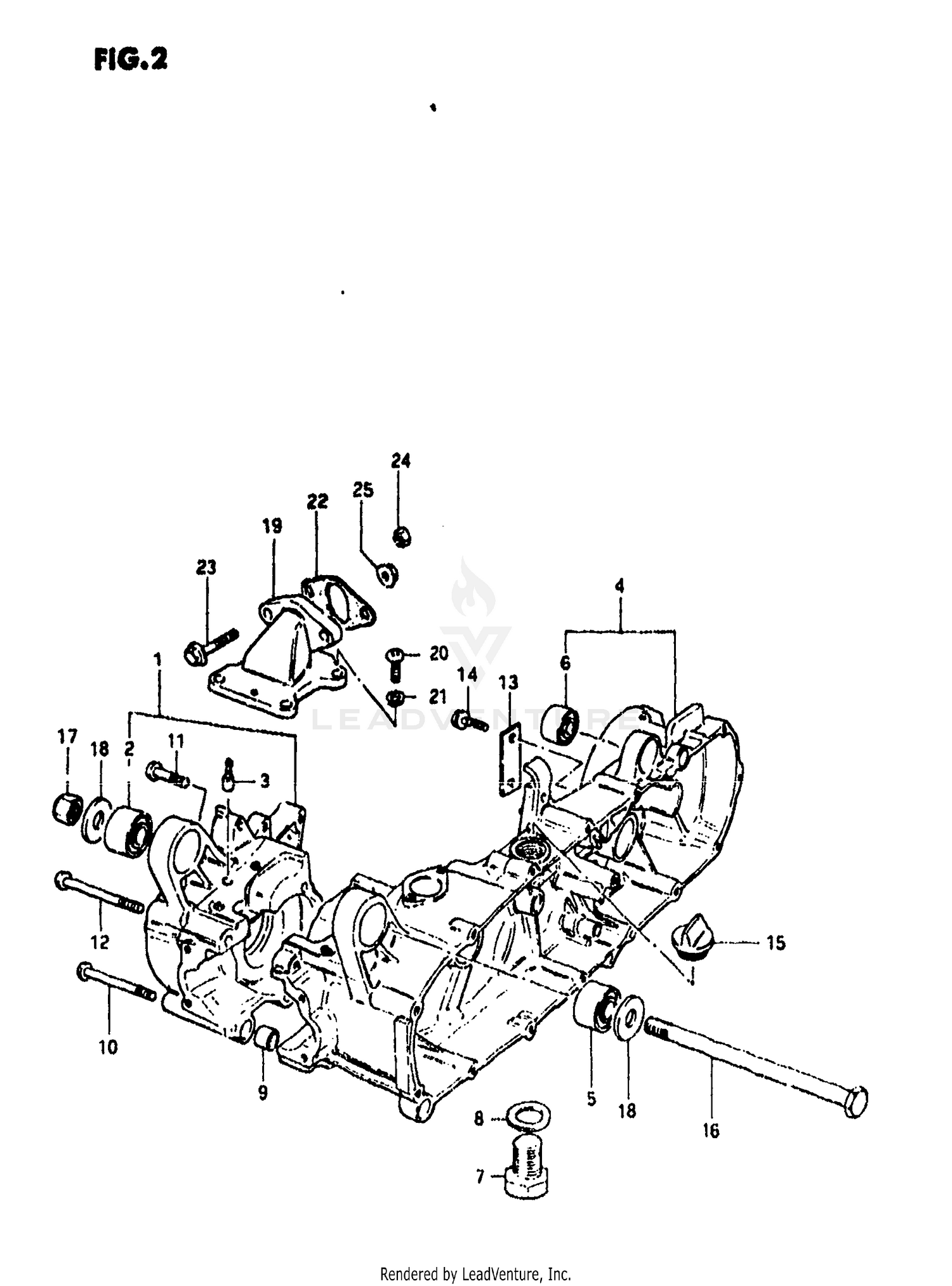

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET,RH
11300-02880
Superseded by 11300-02883
|
$85.67 | ||
|
Unavailable |
|||
|
#2
BUSH,ENGINE MTG
09319-10027
Superseded by 09319-10050
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
UNION, OIL HOSE (OD:5.5)
16824-02300
|
$2.20 | ||
|
Unavailable |
|||
|
#3
UNION, OIL HOSE (OD:6.0)
16824-02301
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEFT CRANKCASE SET
11301-02880
Superseded by 11301-02882
|
$173.27 | ||
|
Unavailable |
|||
|
#4
LEFT CRANKCASE SET
11301-02881
Superseded by 11301-02882
|
$173.27 | ||
|
Unavailable |
|||
|
#4
LEFT CRANKCASE SET
11301-02882
|
$173.27 | ||
|
Unavailable |
|||
|
#5
BUSH,ENGINE MTG
09319-10027
Superseded by 09319-10050
|
$18.07 | ||
|
Unavailable |
|||
|
#6
BUSH, SHOCK ABSORBER
09319-10032
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, OIL DRAIN
09247-10001
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET (10X14X3.6)
09168-10002
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN (10.4X13X18)
09206-13001
Superseded by 04211-13189
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-06758
Superseded by 02112-06757
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-06658
Superseded by 02112-06657
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X40)
02112-06408
Superseded by 02112-06407
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BREATHER
11329-02300
|
$1.26 | ||
|
Unavailable |
|||
|
#14
NO DESCRIPTION AVAILABLE
09360-06011
Superseded by 09360-06012
|
$3.62 | ||
|
Unavailable |
|||
|
#15
PLUG SET
09259-20003
Superseded by 09200-20811
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
NO DESCRIPTION AVAILABLE
61211-43000
Superseded by 61211-43001
|
$11.10 | ||
|
Unavailable |
|||
|
#16
BOLB, ENGINE MOUNT (L:145)
09100-10161
|
$4.42 | ||
|
Unavailable |
|||
|
#17
NUT
09159-10011
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08310-11108
Superseded by 08310-00107
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-11108
Superseded by 08322-01107
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
REED VALVE
13150-02310
|
$66.52 | ||
|
Unavailable |
|||
|
#20
SCREW
02112-06208
Superseded by 02112-06207
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET,CARBURET
13125-02310
Superseded by 13125-02320
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01517-06208
Superseded by 01550-06207
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
.NUT
08310-22068
Superseded by 08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-16068
Superseded by 08319-31067
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
