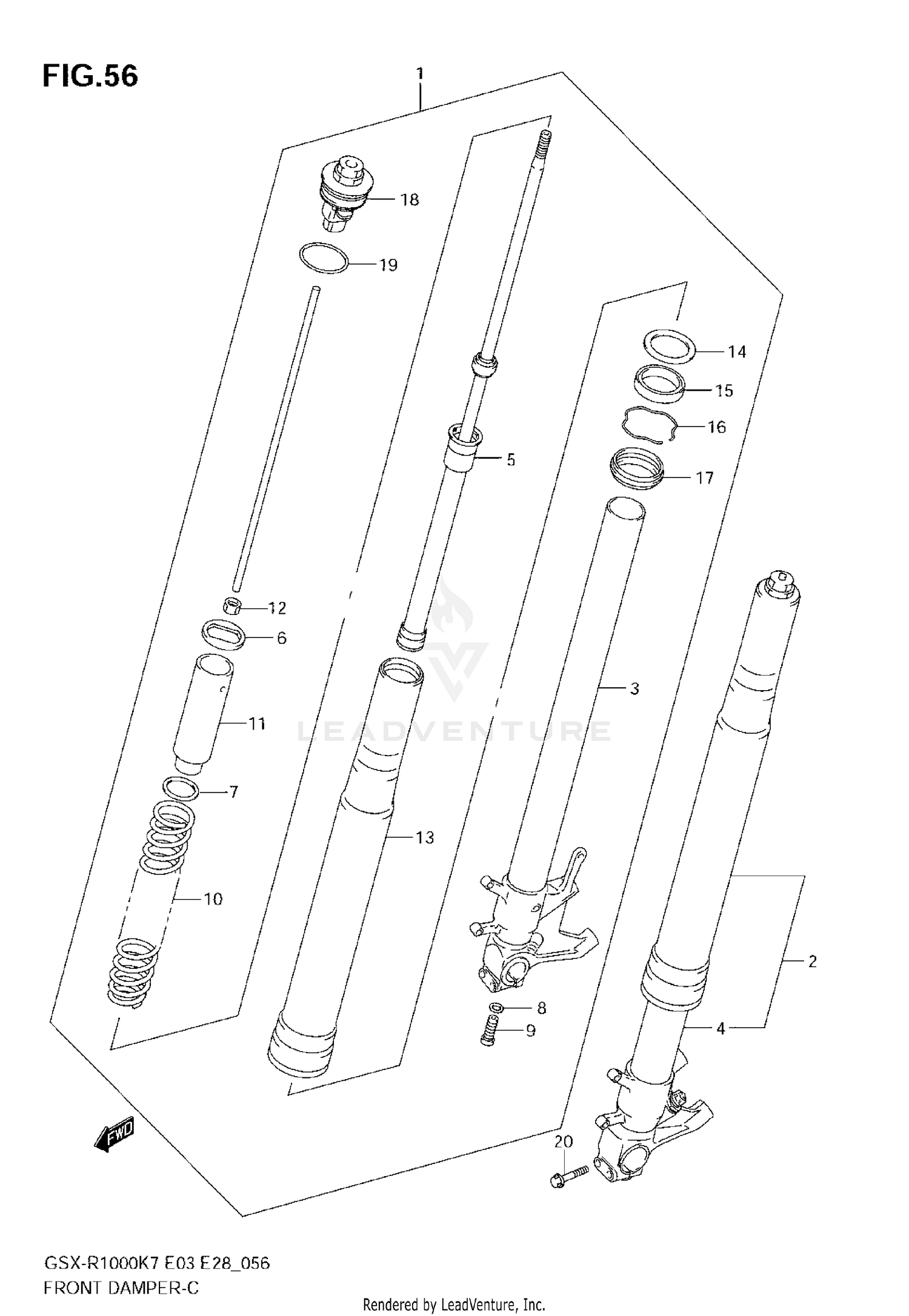

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-21H00
|
$2,645.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-21H00
|
$2,516.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,INNER,R
51110-21H00
Superseded by 51110-21H01
|
$1,097.53 | ||
|
Unavailable |
|||
|
#4
TUBE, INNER LH
51120-21H00
|
$1,361.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER
51146-21H00
|
$580.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPACER
51158-40F30
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
51158-41G00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
51148-41310
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
51147-05H00
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
51171-21H00
|
$136.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, SPRING
51176-21H00
|
$27.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
51129-21H00
|
$18.82 | ||
|
Unavailable |
|||
|
#13
TUBE, OUTER
51130-21H00
|
$693.50 | ||
|
Unavailable |
|||
|
#14
SPACER, SEAL
51158-14200
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, OIL
51153-41G00
|
$29.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER
51156-14200
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, DUST
51173-41G00
|
$31.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FORK
51351-21H00
|
$291.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
..O-RING
62278-14100
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
51166-24F50
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
