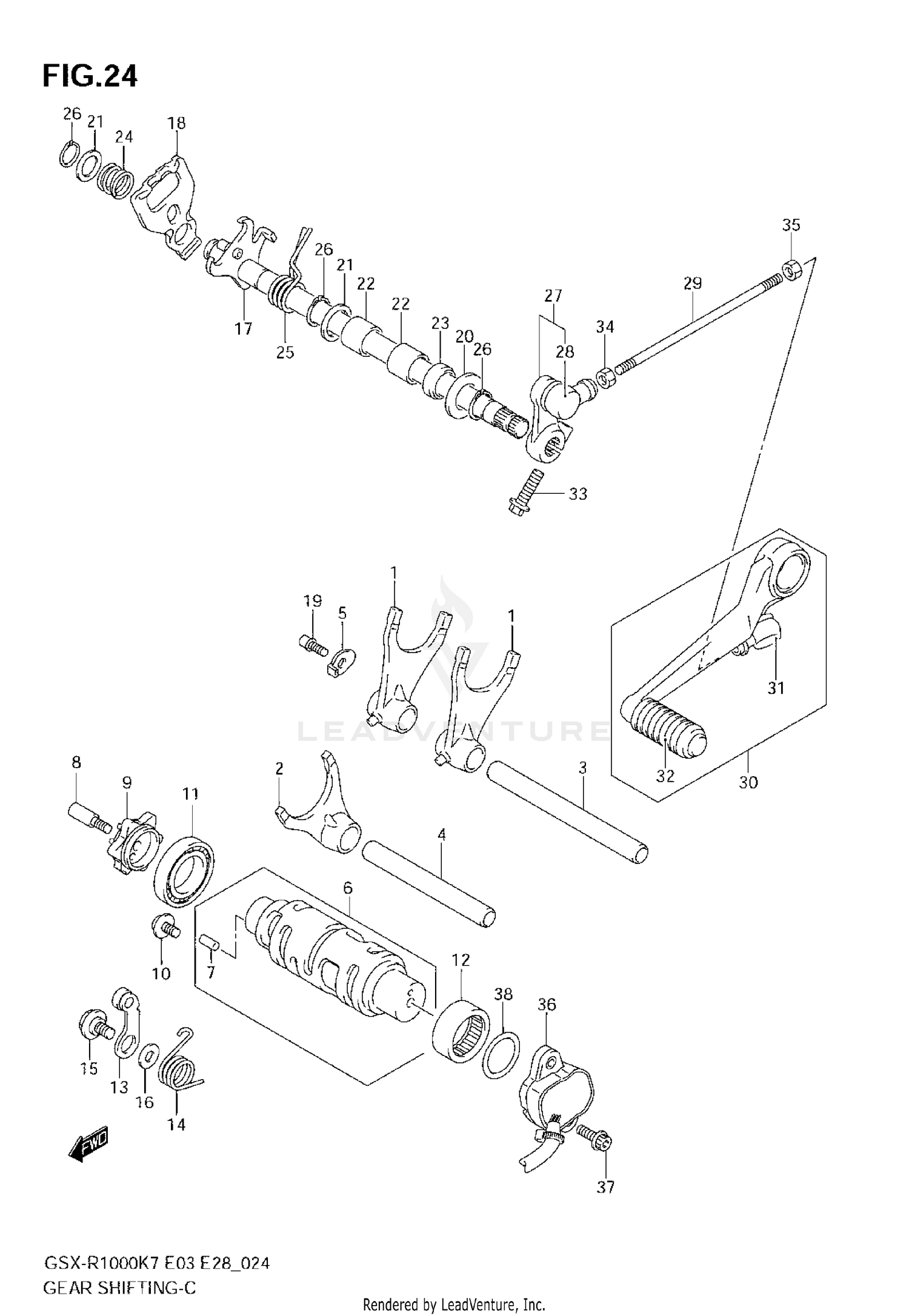

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK,GEAR SHIFT NO.1
25211-35F10
Superseded by 25211-35F11
|
$96.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, GEAR SHIFT NO.3
25231-35F10
Superseded by 25231-35F11
|
$99.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT,SHIFT FORK NO.2 (L:132)
25411-24F00
|
$27.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT,GEAR SHIFT FORK (L:110)
25411-26D01
|
$24.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETAINER, GEAR SHIFT FORK
25451-35F00
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM,GEAR SHIFT
25310-40F00
|
$242.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PIN (4X13.8)
04221-04089
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,GEAR SHIFT CAM PLATE
25312-42F00
Superseded by 25312-42F01
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, GEAR SHIFT CAM
25381-13E30
|
$53.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, GEAR SHIFT CAM RETAINER
09136-06147
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, GEAR SHIFT CAM
09262-25006
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, GEAR SHIFT CAM, L
09263-25018
|
$22.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER, SHIFT CAM
25350-35F00
|
$32.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, GEAR SHIFT CAM
25355-03G00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SHIFT CAM STOPPER ARM
09111-06041
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, CAM STOPPER THRUST
08211-06141
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT,GEAR SHIFT
25510-40F00
|
$108.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE,GEAR SHIFT CAM DRIVE
25512-06G10
Superseded by 25512-06G20
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, GEAR SHIFT ARM
25671-35F00
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, GEAR SHIFT SHAFT, L
09160-14016
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (14X22X1.0)
09181-14167
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, GEAR SHIFT SHAFT
09263-14027
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, GEAR SHIFT SHAFT OIL
09283-14006
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, GEAR SHIFT PLATE
09440-17009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, SHIFT SHAFT RETURN
09444-20001
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP, SHIFT SHAFT
08331-31146
Superseded by 08331-3114A
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM, GEAR SHIFT LINK
25520-16G20
|
$59.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, GEAR SHIFT LINK
25525-07A10
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, GEAR SHIFT LINK
25525-19D20
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER ASSY,GEAR
25600-41G00
Superseded by 25600-41G01
|
$127.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$6.03 | ||
|
Unavailable |
|||
|
#32
.RUBBER,GEAR SHIFT PEDAL
25652-20C00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, GEAR SHIFT LINK ARM
09103-06212
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
09140-06025
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, GEAR SHIFT LINK ROD
08310-0006A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
SENSOR ASSY,GEA
37730-41G01
Superseded by 37730-41G03
|
$86.33 | ||
|
Unavailable |
|||
|
#37
BOLT, GEAR SHIFT SW
09106-05023
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#38
.O-RING (ID:25.7,DD:2.4)
09280-26007
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
