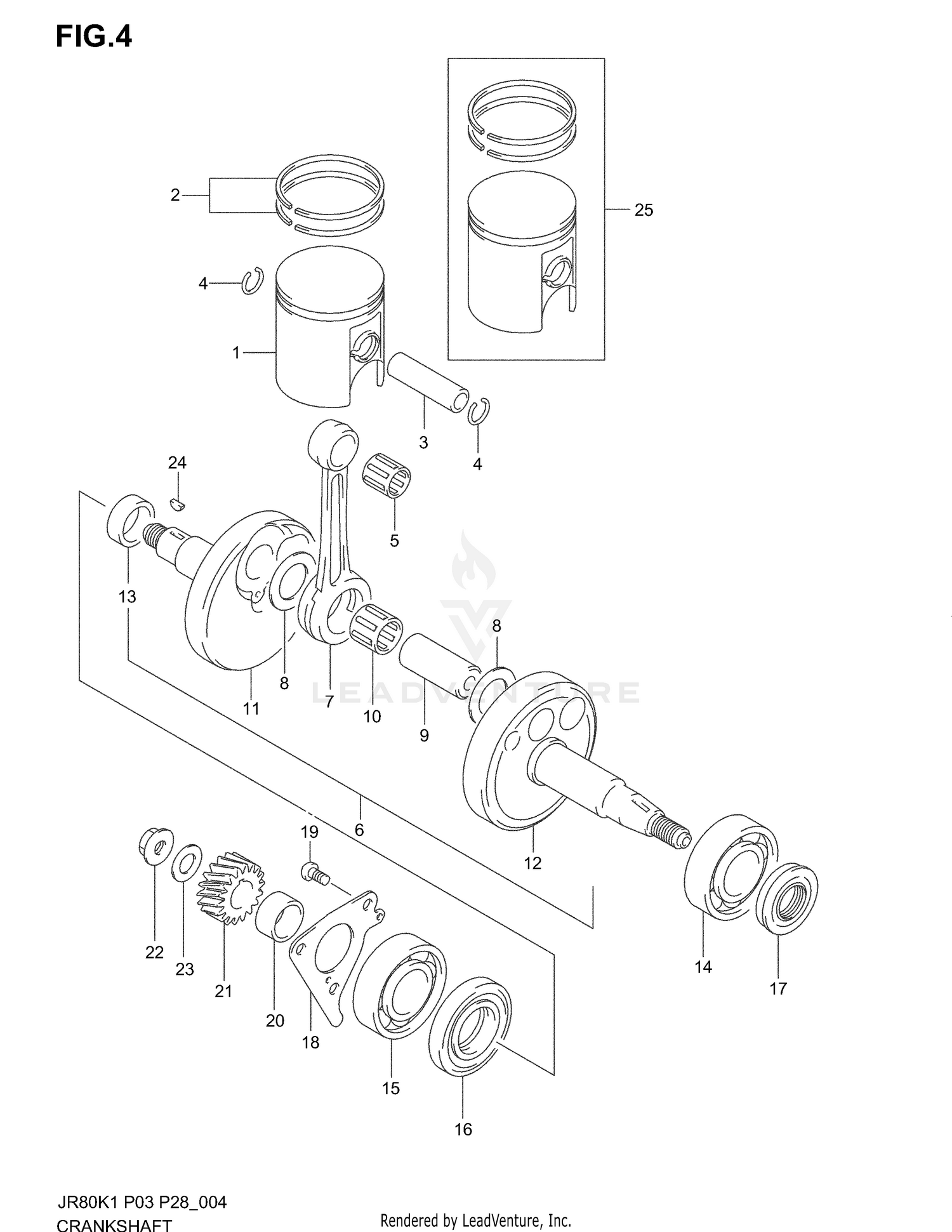

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
12110-46410
Superseded by 12110-46411
|
$60.62 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON (STD)
12110-46411
|
$60.62 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD)
12140-25631
|
$37.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (OS:0.5)
12140-25631-050
|
$41.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (OS:1.0)
12140-28630
|
$40.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
12151-35400
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING,SNAP
09381-12001
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (12X16X15.8)
09263-12023
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT ASSY
12200-46412
|
$639.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, CONNECTING
12161-14001
|
$85.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-17022
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CRANK
12211-46000
|
$30.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (17.7X22.9X14)
09263-17016
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
CRANKSHAFT, RH
12220-46810
|
$124.61 | ||
|
Unavailable |
|||
|
#12
CRANKSHAFT, LH
12261-46411
|
$97.31 | ||
|
Unavailable |
|||
|
#13
SPACER, RH
09180-20021
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, DRIVE SHAFT LH
09262-20019
Superseded by 09262-20069
|
$27.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, LH (20X47X14)
09262-20048
|
$25.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RH (20X47X14)
09262-20141
|
$32.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL, RH (26X47X7.3)
09283-26015
|
$7.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL, LH (20X37X8)
09283-20034
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, BEARING RH
12541-46001
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-06123
Superseded by 02112-0612A
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER
09180-20059
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, PRIMARY DRIVE (NT:19)
21111-46000
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09159-12005
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
09164-12020
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY
08341-31039
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON SET (OS:0.5)
12100-46410-050
Superseded by 12100-46411-050
|
$109.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON SET (OS:0.5)
12100-46411-050
|
$109.48 | ||
|
Unavailable |
|||
|
#25
PISTON SET (OS:1.0)
12100-46410-100
Superseded by 12100-46411-100
|
$113.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON SET (OS:1.0)
12100-46411-100
|
$113.19 | ||
|
Unavailable |
|||
