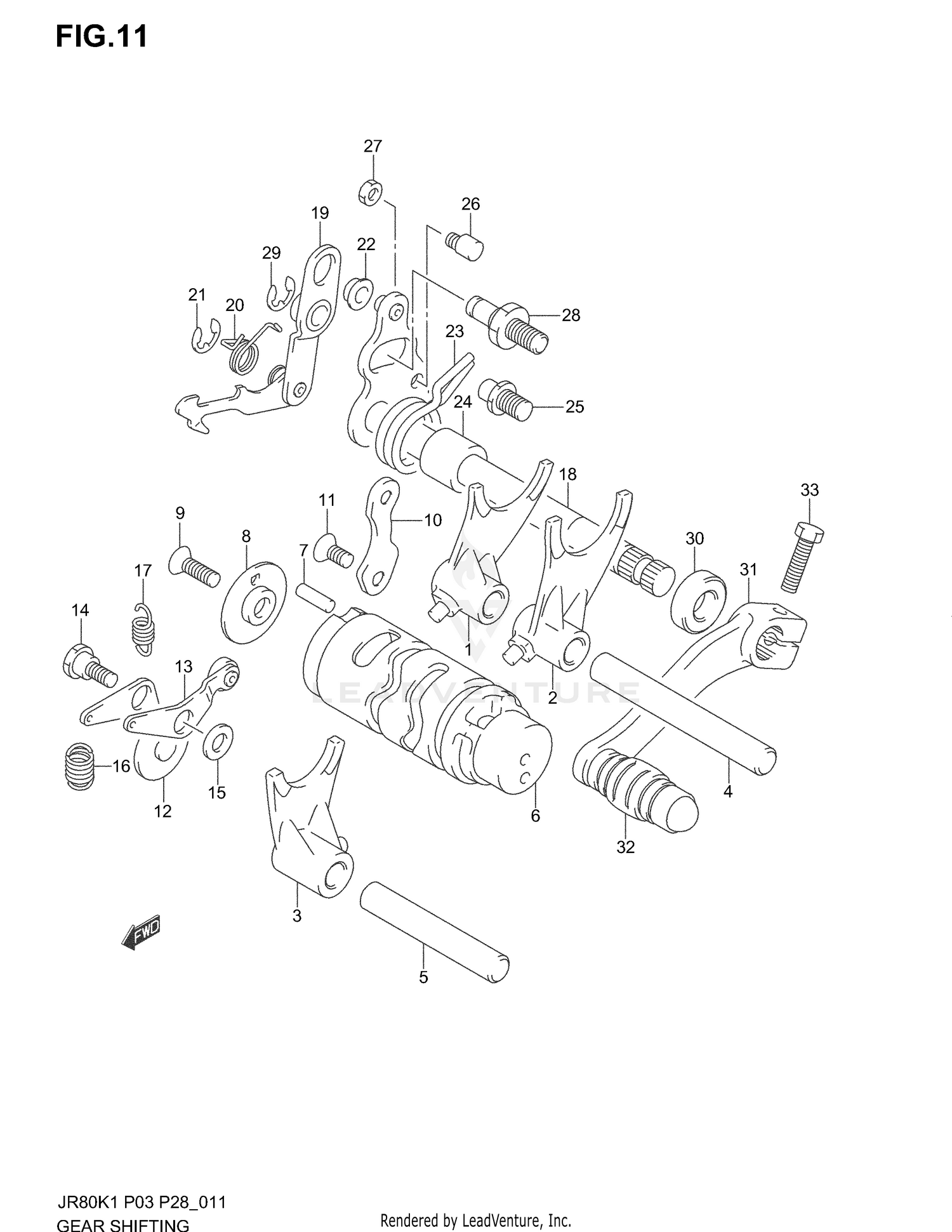

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFTING NO.1
25211-46003
|
$36.95 | ||
|
Unavailable |
|||
|
#2
FORK, GEAR SHIFTING NO.2
25221-46000
|
$57.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, GEAR SHIFTING NO.3
25231-46001
|
$50.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEAR SHIFTING NO.1
25411-14331
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, GEAR SHIFTING NO.2
25421-35410
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM, GEAR SHIFTING
25311-46001
|
$89.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
09261-04009
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
09209-04015
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER, PIN
25322-46000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02122-06203
Superseded by 02122-0620A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, 6X20
09126-06012
|
$1.25 | ||
|
Unavailable |
|||
|
#10
GUIDE, CAM
25341-46000
|
$4.75 | ||
|
Unavailable |
|||
|
#11
SCREW
02122-06123
Superseded by 02122-0612A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, 6X12
09126-06011
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER, CAM
25350-46000
|
$5.57 | ||
|
Unavailable |
|||
|
#13
STOPPER, CAM NEUTRAL
25390-46001
|
$7.00 | ||
|
Unavailable |
|||
|
#14
BOLT
09111-06020
|
$0.97 | ||
|
Unavailable |
|||
|
#15
WASHER
08322-01063
Superseded by 08322-0106B
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-08017
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
09443-10017
|
$1.57 | ||
|
Unavailable |
|||
|
#18
SHAFT, GEAR SHIFTING
25510-46002
|
$41.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
PAWL
25540-46004
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09448-13006
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
E RING
08332-11073
Superseded by 08332-1107A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROLLER
09180-07014
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09444-26015
|
$2.59 | ||
|
Unavailable |
|||
|
#24
SPACER (12X20X15.3)
09180-12083
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
STOPPER,GEAR SHIFT ARM
25671-01011
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
25673-46000
|
$2.54 | ||
|
Unavailable |
|||
|
#27
NUT
09140-06023
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOPPER, ARM
25672-46001
Superseded by 25672-46002
|
$4.36 | ||
|
Unavailable |
|||
|
#28
STOPPER, ARM
25672-46002
|
$4.36 | ||
|
Unavailable |
|||
|
#29
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER ASSY,GEAR
25600-16520
Superseded by 25600-16521
|
$55.03 | ||
|
Available to order. Add to View Price |
|||
|
#32
.RUBBER,GEAR SHIFT PEDAL
25652-16500
Superseded by 25652-16510
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, GEAR SHIFT LINK
01500-06203
Superseded by 01500-0620A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
