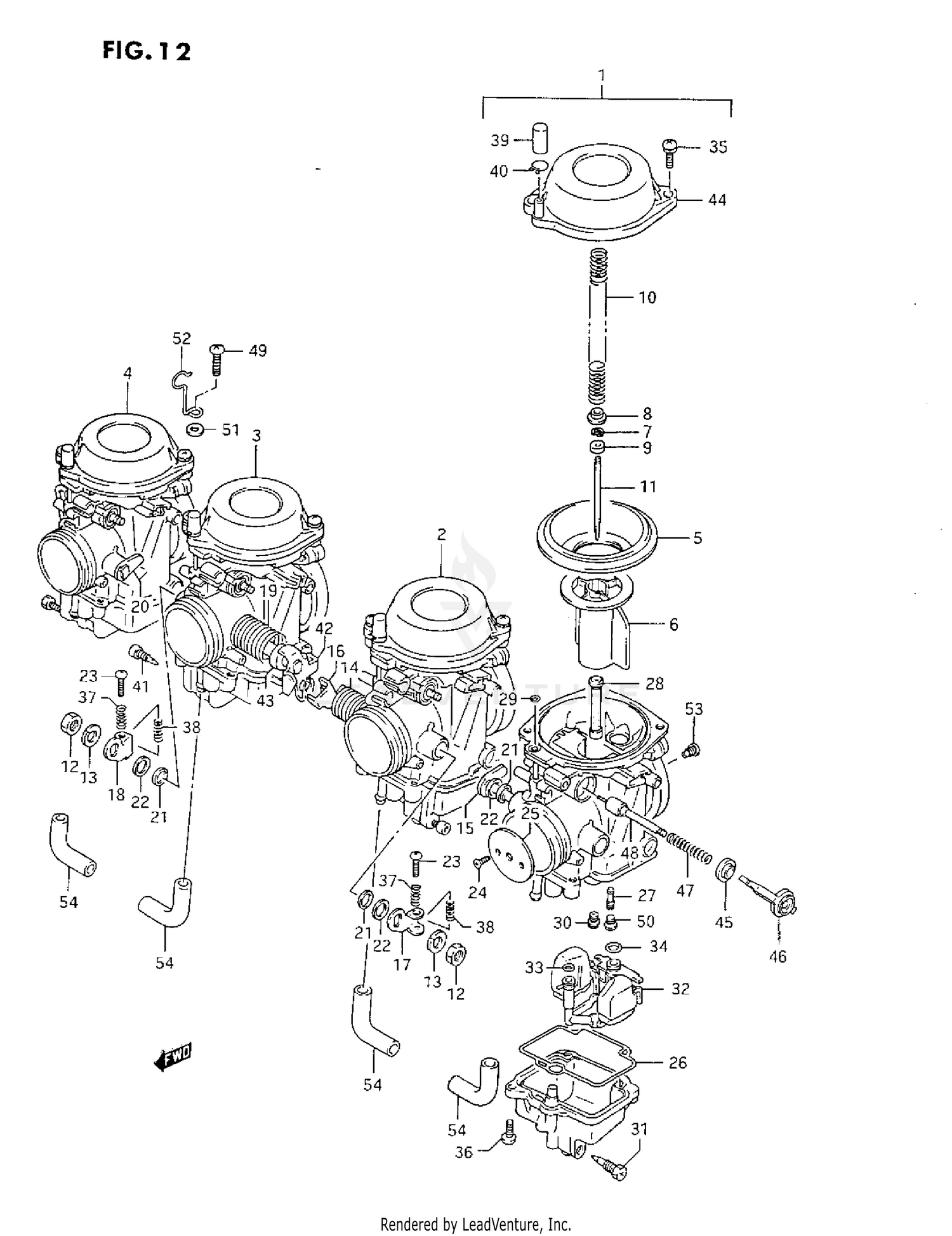

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY, LH
13201-20C30
Superseded by 13201-20C31
|
$514.17 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
13201-20C40
Superseded by 13201-20C41
|
$354.25 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, ML
13202-20C30
Superseded by 13202-20C31
|
$329.20 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
13202-20C40
Superseded by 13202-20C41
|
$354.25 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY, MR
13203-20C30
Superseded by 13203-20C31
|
$514.17 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
13203-20C40
Superseded by 13203-20C41
|
$354.25 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY, RH
13204-20C30
Superseded by 13204-20C31
|
$393.46 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
13204-20C40
Superseded by 13204-20C41
|
$354.25 | ||
|
Unavailable |
|||
|
#5
.DIAPHRAGM
13507-17C00
Superseded by 13507-17C02
|
$32.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, PISTON
13501-17C00
|
$84.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
E RING
13394-31210
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
13382-42A00
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
13387-44030
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
13417-42A00
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE, JET (5EZ62-1)
13383-20C10
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE, JET (5EZ63-1)
13383-20C20
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08310-00087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER,LOCK
08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
13573-17C00
|
$6.54 | ||
|
Unavailable |
|||
|
#15
SHAFT ASSY
13550-17C00
|
$30.94 | ||
|
Unavailable |
|||
|
#16
SHAFT ASSY
13550-17C10
|
$31.50 | ||
|
Unavailable |
|||
|
#17
LEVER
13553-17C00
|
$6.40 | ||
|
Unavailable |
|||
|
#18
LEVER
13553-44B00
|
$6.40 | ||
|
Unavailable |
|||
|
#19
SPRING
13573-17C10
|
$5.24 | ||
|
Unavailable |
|||
|
#20
SHAF1 ASSY
13550-17C30
|
$38.23 | ||
|
Unavailable |
|||
|
#21
SEAL
13556-41B00
|
|||
|
Unavailable |
|||
|
#22
WASHER
13557-47070
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
13267-44B00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, THROTTLE VALVE
13604-42A00
Superseded by 13604-44080
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#25
VALVE, THROTTLE (120)
13551-20C00
|
$24.31 | ||
|
Unavailable |
|||
|
#25
VALVE, THROTTLE (115)
13551-17C10
|
$26.75 | ||
|
Unavailable |
|||
|
#26
GASKET, FLOAT CHAMBER
13258-44B00
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, PILOT (32.5)
09492-32006
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, NEEDLE (Y-1M)
09494-00633
Superseded by 09494-00875
|
$45.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
13509-17C00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, MAIN (105)
09491-21016
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET, MAIN (110)
09491-22016
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, DRAIN
13247-24500
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
FLOAT/NEEDLE VA
13250-20C00
Superseded by 13250-20C10
|
$114.77 | ||
|
Available to order. Add to View Price |
|||
|
#33
.O-RING
13374-46710
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#34
O RING
13374-44080
Superseded by 13374-35C00
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
13602-34390
Superseded by 02112-7516A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
13602-05128
Superseded by 02112-05127
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING
13271-44B00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING
13268-17C10
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#39
CAP
13508-17C00
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
13671-33600
Superseded by 13671-05A40
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#42
SHAFT ASSY
13550-17C20
|
$34.62 | ||
|
Unavailable |
|||
|
#43
RING
13574-28A00
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, DIAPHRAGM
13502-17C00
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#45
CAP,STARTER
13418-17C00
Superseded by 13418-17C01
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOLDER
13418-17C10
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING
13417-09110
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLUNGER ASSY
13411-20C00
|
$18.50 | ||
|
Unavailable |
|||
|
#49
SCREW
02112-05164
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLUG
13357-34C00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, FRONT
13606-00A10
Superseded by 08322-0105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLIP
13671-20C20
|
$4.41 | ||
|
Unavailable |
|||
|
#53
JET, PILOT AIR (1.4)
09493-28007
Superseded by 09493-28006
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#53
JET, PILOT AIR (1.2)
09493-24007
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOSE
13684-48B00
Superseded by 13684-48B11
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
