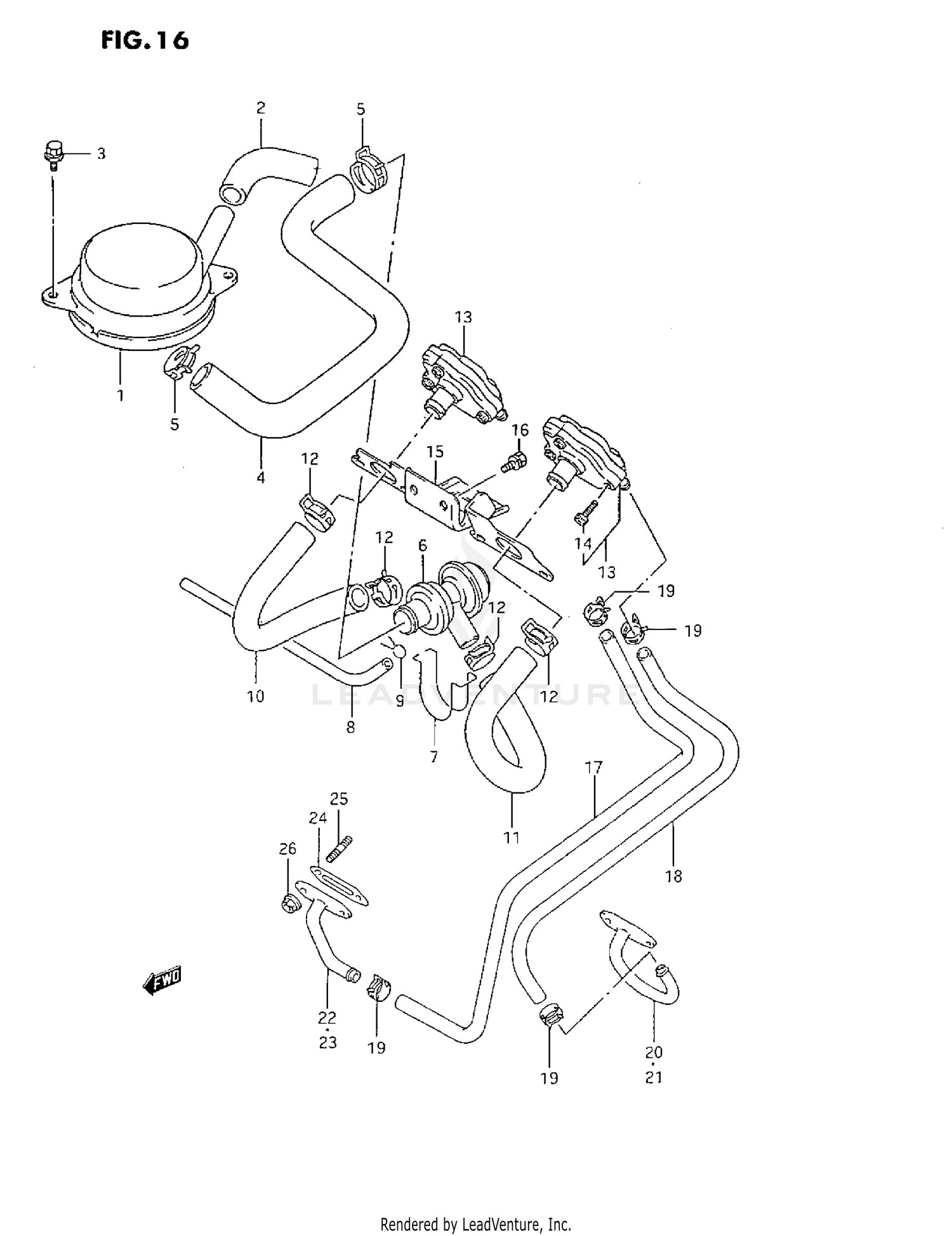

Second Air (california Only) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, 2ND AIR
18700-48B02
Superseded by 18700-17C03
|
$40.72 | ||
|
Unavailable |
|||
|
#1
CLEANER ASSY, 2ND AIR
18700-48B03
Superseded by 18700-17C03
|
$40.72 | ||
|
Unavailable |
|||
|
#2
HOSE, INLET
18481-48B00
|
$6.40 | ||
|
Unavailable |
|||
|
#3
BOLT
01177-06128
Superseded by 01580-06127
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, SEAT CTR BRACKET
01177-06168
Superseded by 01580-06167
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, 2ND AIR, NO.3
18551-19C00
|
$18.53 | ||
|
Unavailable |
|||
|
#5
CLIP
09401-25402
|
$1.62 | ||
|
Unavailable |
|||
|
#6
VALVE ASSY, AIR SWITCHING
18510-20C00
|
$155.83 | ||
|
Unavailable |
|||
|
#7
CLAMP, SWITCHING VALVE
18522-17C00
|
$5.85 | ||
|
Unavailable |
|||
|
#8
HOSE, 2ND AIR VALVE VACUUM
09359-45852-300
Superseded by 09359-45852-600
|
$7.34 | ||
|
Unavailable |
|||
|
#9
CLIP
09401-07401
|
$0.76 | ||
|
Unavailable |
|||
|
#10
HOSE, 2ND AIR NO.2, RH
18481-19C00
|
$12.25 | ||
|
Unavailable |
|||
|
#11
HOSE, 2ND AIR NO.2, LH
18482-19C00
|
$12.25 | ||
|
Unavailable |
|||
|
#12
CLIP
09401-21401
|
$0.89 | ||
|
Unavailable |
|||
|
#13
VALVE ASSY, 2ND AIR REED
18450-48B00
|
$110.86 | ||
|
Unavailable |
|||
|
#14
BOLT
07110-05167
Superseded by 07130-05167
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, REED VALVE
18470-19C01
|
$15.30 | ||
|
Unavailable |
|||
|
#16
BOLT
01137-06167
Superseded by 01570-06167
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, 2ND AIR NO.1 INSIDE
18445-20C00
|
$19.67 | ||
|
Unavailable |
|||
|
#18
HOSE, 2ND AIR NO.1
18446-20C00
Superseded by 18446-20810
|
$24.80 | ||
|
Unavailable |
|||
|
#19
CLAMP
09401-13408
Superseded by 09401-13417
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, 2ND AIR, NO.1
18410-20C00
|
$29.37 | ||
|
Unavailable |
|||
|
#21
PIPE, 2ND AIR, NO.4
18440-20C00
|
$29.37 | ||
|
Unavailable |
|||
|
#22
PIPE, 2ND AIR, NO.2
18420-20C00
|
$28.44 | ||
|
Unavailable |
|||
|
#23
PIPE, 2ND AIR, NO.3
18430-20C00
|
$28.44 | ||
|
Unavailable |
|||
|
#24
GASKET, 2ND AIR PIPE
18441-17C00
Superseded by 18441-17C11
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, 2ND AIR PIPE
18441-17C10
Superseded by 18441-17C11
|
$8.05 | ||
|
Unavailable |
|||
|
#25
BOLT,STUD
01421-06125
Superseded by 01421-0612A
|
$1.57 | ||
|
Unavailable |
|||
|
#26
NUT
08316-16064
Superseded by 08316-1006B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08316-10063
Superseded by 08316-1006B
|
$2.65 | ||
|
Unavailable |
|||
|
#27
HOLDER, 2ND AIR CLEANER
18761-41C00
|
$7.72 | ||
|
Unavailable |
|||
