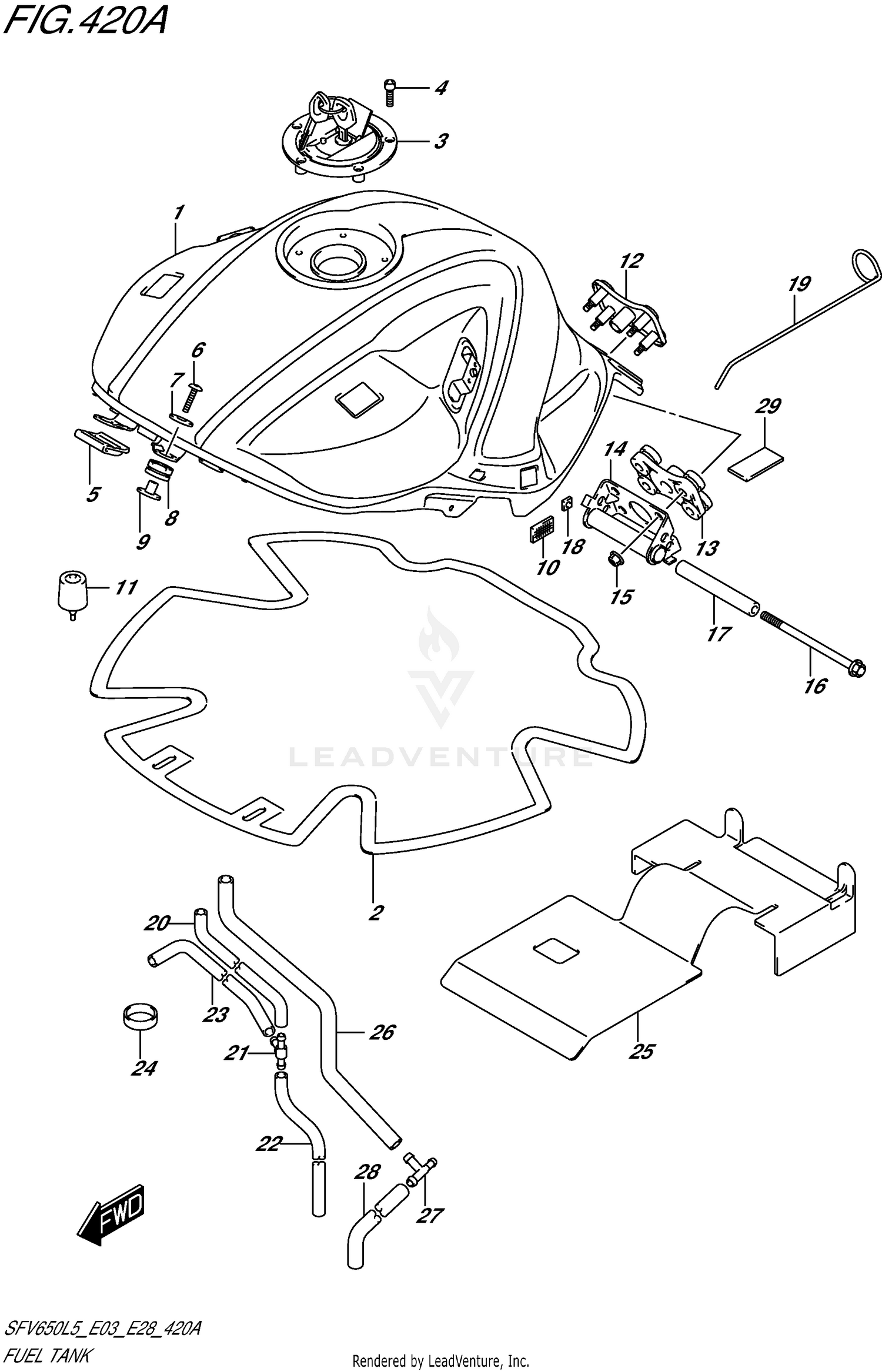

Fuel Tank (sfv650l5 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
44100-44H31-YVB
|
$1,030.78 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-44H31-YKY
|
$844.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIELD, TANK HEAT
44191-44H00
|
$82.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$131.20 | ||
|
Unavailable |
|||
|
#4
BOLT (5X20)
09106-05017
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, FRONT
44546-44H00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X25)
09139-06029
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09160-06012
Superseded by 09160-06054
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER,FUEL TANK FR
44512-16G00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
FASTENER, FRAME COVER (15X25)
47912-37H00
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK RR
44542-29G00
Superseded by 44542-29G01
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,FUEL TANK RR UP
44570-16G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, LOWER
44542-16G00
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,FUEL TANK REAR
44530-44H00
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
.NUT
08319-3106A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X100)
09103-06060
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,FUEL TANK
44561-35F00
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08318-1106A
|
|||
|
Unavailable |
|||
|
#19
STAY,FUEL TANK
44574-16G00
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, BREATHER NO.1
44424-44H00
|
$8.07 | ||
|
Unavailable |
|||
|
#21
3 WAY
09367-06007
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE,VACUUM
44425-09E00
Superseded by 44425-09E01
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (12X16X600)
09352-12163-600
|
$8.81 | ||
|
Unavailable |
|||
|
#25
SHEET, SHIELD RUBBER
44271-44H00
|
$57.34 | ||
|
Unavailable |
|||
|
#26
HOSE, TANK WATER DRAIN
44423-44H00
|
$13.50 | ||
|
Unavailable |
|||
|
#27
3 WAY
09367-08005
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, WATER DRAIN
44423-44H10
|
$6.89 | ||
|
Unavailable |
|||
|
#29
CUSHION
36920-08D10
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
