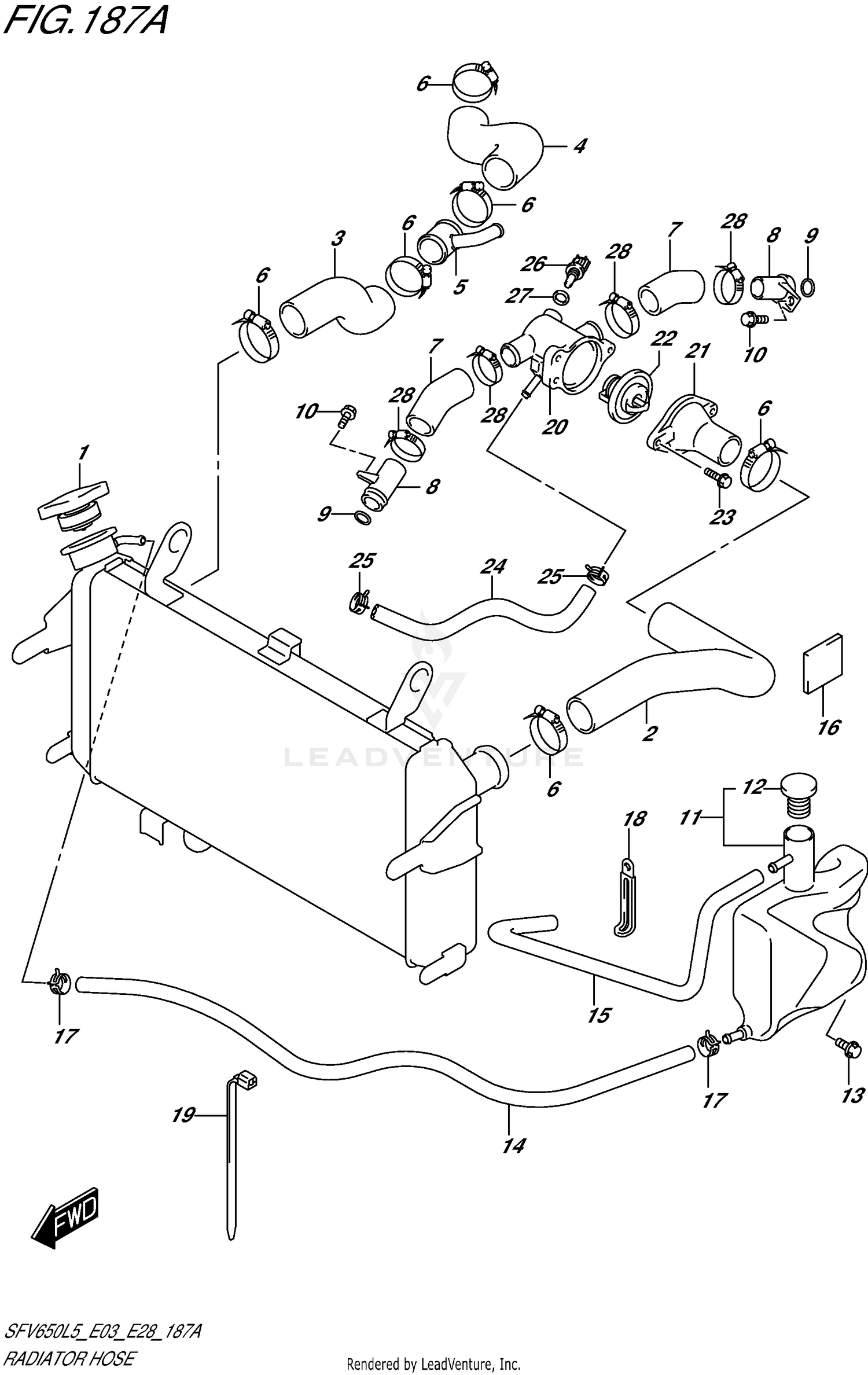

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, RADIATOR 1.1
17730-12C30
|
$49.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE,RADIATOR INLET
17851-44H00
|
$55.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE,RADIATOR OUTLET NO.1
17852-44H00
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,RADIATOR OUTLET NO.2
17854-44H00
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
UNION,WATER HOSE THREE WAY
17880-44H00
|
$38.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09402-38512
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE,CONNECTOR INLET
17853-19F00
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNION,CONNECTOR HOSE
17890-06G20
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07130-0612A
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY, RESERVOIR
17910-44H00
|
$34.71 | ||
|
Unavailable |
|||
|
#12
.CAP, RESERVOIR TANK
17931-02FA0
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X12)
09111-06085
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE,RSVR TANK INLET
17981-44H00
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, RESERVOIR TANK OVERFLOW
17982-44H00
|
|||
|
Unavailable |
|||
|
#16
CUSHION, RESERVOIR TANK
63191-25C00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
09401-08411
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:45)
09404-06429
|
$1.93 | ||
|
Unavailable |
|||
|
#19
CLAMP (L:190)
09407-19401
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
CONNECTOR,THERMOSTAT INLET
17662-02F11
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP,THERMOSTAT CONNECTOR
17663-17G00
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
THERMOSTAT,WATE
17670-06G70
Superseded by 17670-06G71
|
$38.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01547-0616A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,CONNECTOR TO WTR PMP
17856-44H00
|
$19.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
09401-12414
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#26
SENSOR,TEMP
13650-49X00
|
$100.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET (12X17X1)
09168-12017
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
09402-28513
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
