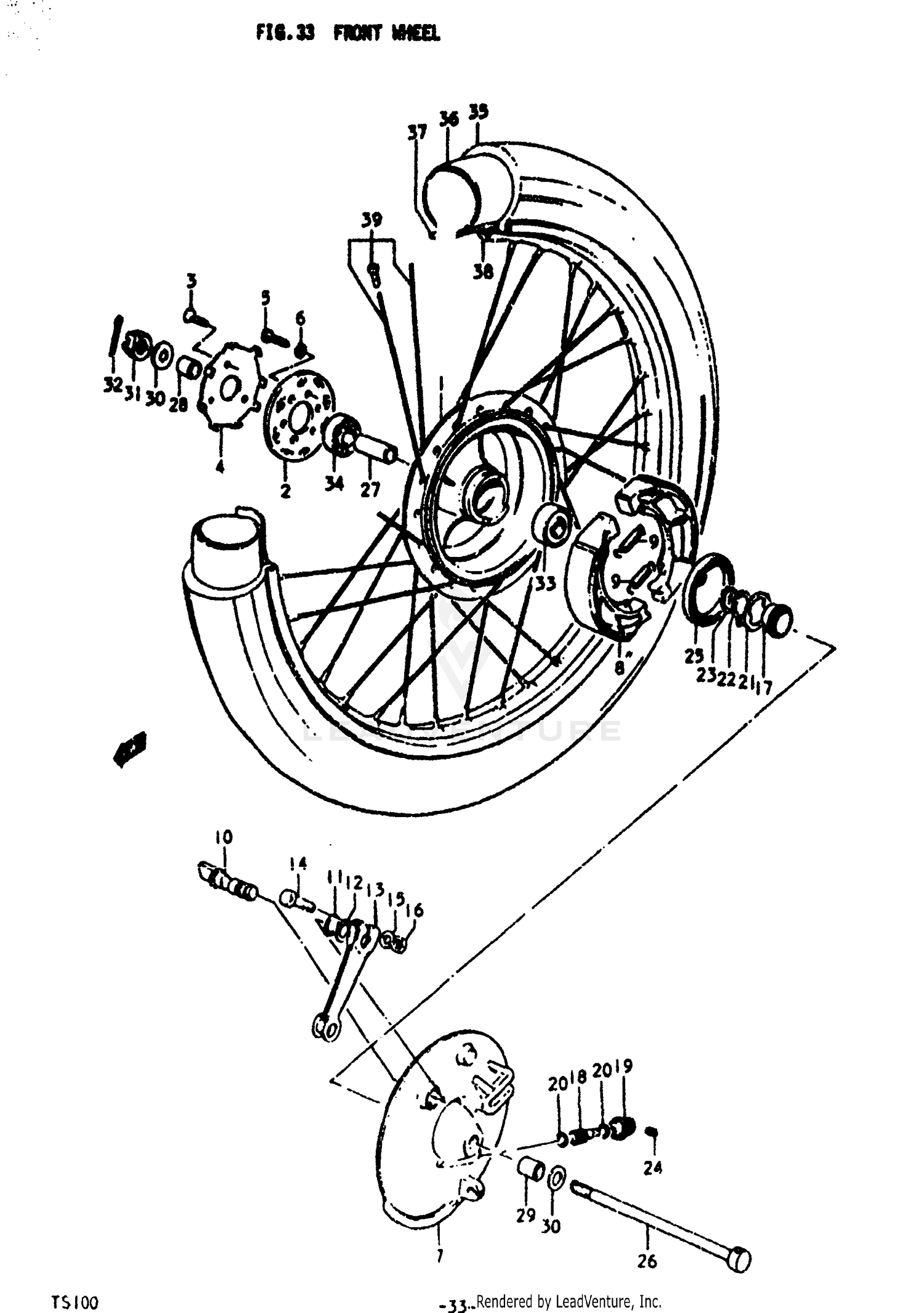

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, WHEEL
54110-29300
|
$101.28 | ||
|
Unavailable |
|||
|
#2
HUB FLANGE, FRONT RH
54112-30500
|
$19.14 | ||
|
Unavailable |
|||
|
#3
SCREW
02122-06168
Superseded by 02122-06167
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, HUB BEARING RH
54151-30500
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL
54210-29300
|
$131.00 | ||
|
Unavailable |
|||
|
#8
SHOE SET, BRAKE
54410-07002
Superseded by 54401-07810
|
$19.14 | ||
|
Unavailable |
|||
|
#9
SPRING
09443-07001
Superseded by 09443-07025
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, BRAKE
54441-29300
Superseded by 54441-29305
|
$18.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, BRAKE
54441-29301
Superseded by 54441-29305
|
$18.88 | ||
|
Unavailable |
|||
|
#11
O RING (D:2.5,ID:13.8)
09280-14003
Superseded by 09280-14011
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09160-14001
Superseded by 09160-14055
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, BRAKE CAM
54451-29300
|
$13.11 | ||
|
Unavailable |
|||
|
#14
BOLT
09100-06078
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
.NUT
08310-11068
Superseded by 08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
NO DESCRIPTION AVAILABLE
54611-28001
Superseded by 54611-28002
|
$19.04 | ||
|
Unavailable |
|||
|
#18
NO DESCRIPTION AVAILABLE
54611-28000
Superseded by 54611-28002
|
$19.04 | ||
|
Unavailable |
|||
|
#19
BUSH
54632-01001
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,5.1X9X0.
09160-05001
Superseded by 09160-05001-A05
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
DRIVER
54661-29300
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
THRUST WASHER
09160-18002
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-11189
|
$0.79 | ||
|
Unavailable |
|||
|
#24
SCREW,3X4.3
09134-03101
Superseded by 09134-03101-A05
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
09285-43001
Superseded by 09283-43004
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE,FRONT
64711-43000
Superseded by 64711-43001
|
$39.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER (12.5X19X52)
09180-12041
Superseded by 09180-12144
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
NO DESCRIPTION AVAILABLE
09180-12076
Superseded by 09180-12141
|
$5.57 | ||
|
Unavailable |
|||
|
#29
SPACER,
09180-12063
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
08322-21128
Superseded by 08322-01127
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
08314-31128
Superseded by 08314-3112A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN
04111-30308
Superseded by 04111-3030A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING
08143-62017
Superseded by 08143-6201B
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
08123-62017
Superseded by 08133-62017
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
TIRE, FRONT
55100-25600
|
$88.10 | ||
|
Unavailable |
|||
|
#36
TUBE, INNER
55200-29010
|
$21.56 | ||
|
Unavailable |
|||
|
#37
PROTECTOR, WHEEL INNER TUBE FRONT
55261-29010
Superseded by 55261-15020
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
RIM, WHELL
55311-48120
|
$94.79 | ||
|
Unavailable |
|||
