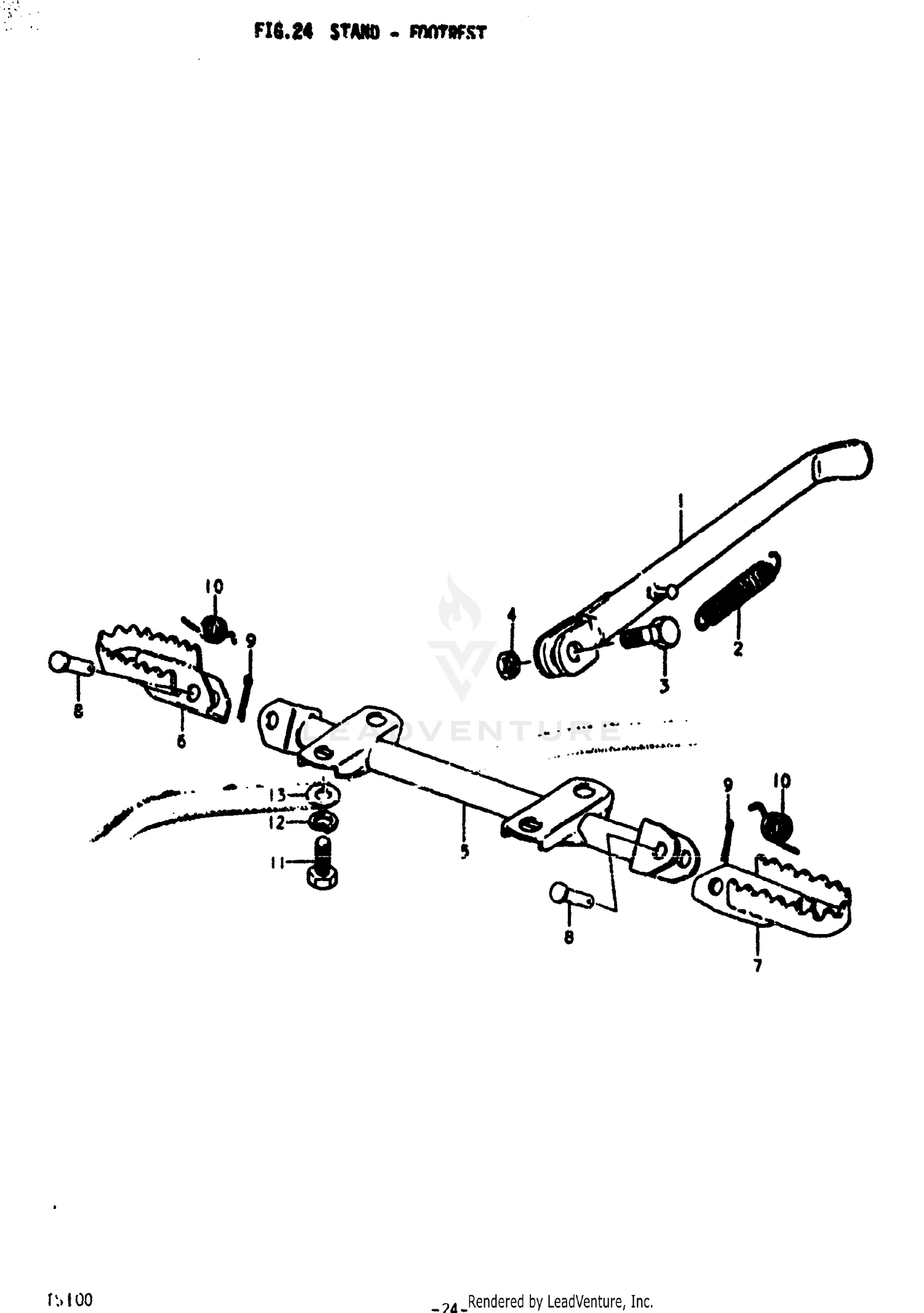

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
42310-48100
Superseded by 42310-48410
|
$24.62 | ||
|
Unavailable |
|||
|
#2
SPRING
09443-14005
Superseded by 09443-14017
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09100-10067
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08310-22108
Superseded by 08310-00107
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, FRONT FOOTREST
43510-48001
|
$87.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOOTREST, RH
43550-29300
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST, LH
43560-29300
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09200-10008
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
COTTER PIN
04111-20208
Superseded by 04111-2020A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-15004
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, REAR
01107-08208
Superseded by 01500-08207
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
