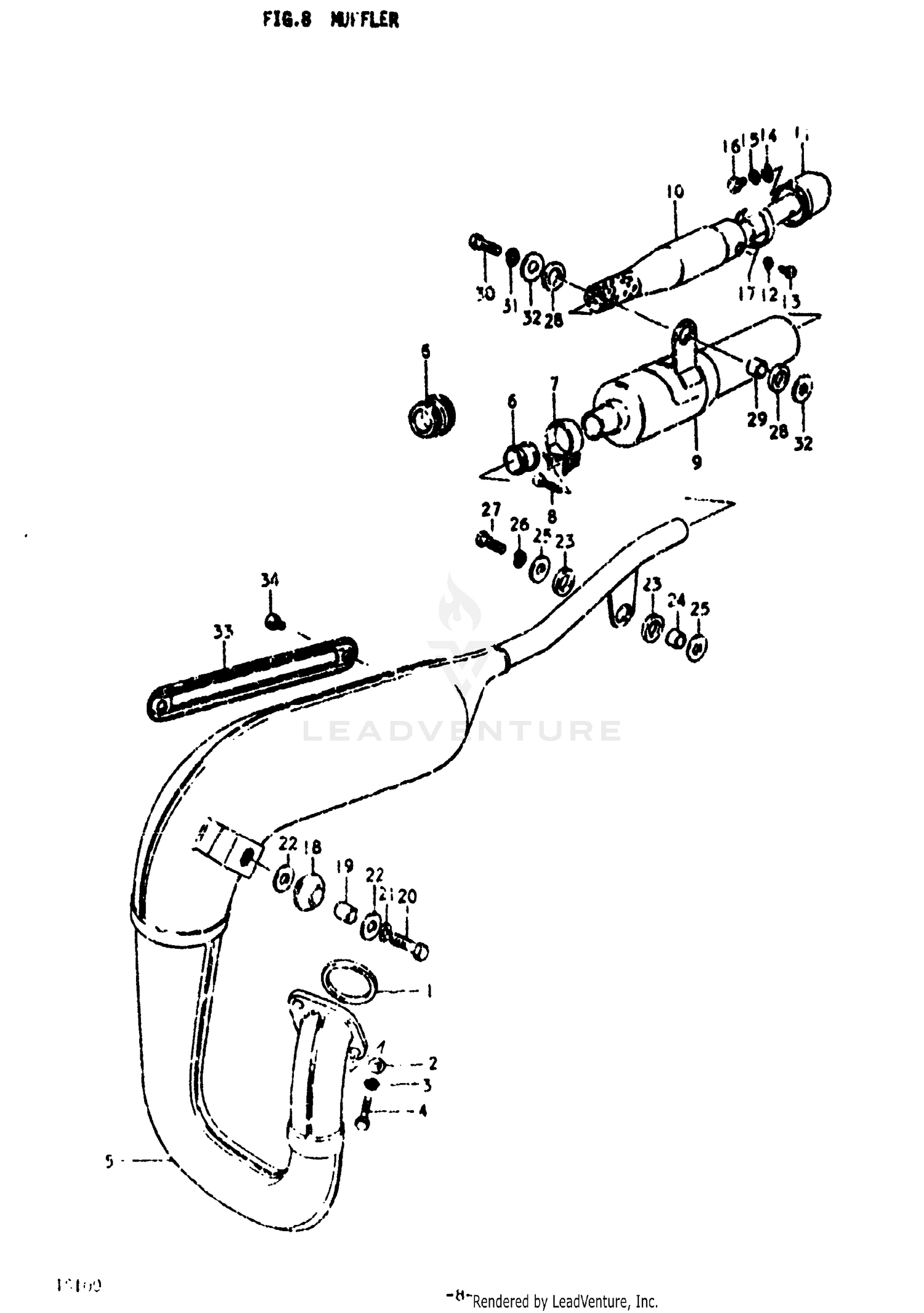

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EXHAUST PIPE
14181-11010
Superseded by 14181-01D00
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
09128-06072
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY
14310-48000
Superseded by 14310-48520-H01
|
$500.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR
14771-48000
Superseded by 14771-48002
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR
14771-48001
Superseded by 14771-48002
|
$14.47 | ||
|
Unavailable |
|||
|
#7
CLAMP
09402-31602
|
$2.74 | ||
|
Unavailable |
|||
|
#8
SCREW
02112-06208
Superseded by 02112-06207
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
14303-48601
Superseded by 14303-48601-H01
|
$68.45 | ||
|
Unavailable |
|||
|
#10
BODY, ARRESTOR
14810-38601
|
$69.93 | ||
|
Unavailable |
|||
|
#11
TUBE, CLEAN OUT
14850-48000
|
$39.46 | ||
|
Unavailable |
|||
|
#12
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-05088
Superseded by 02112-05087
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Unavailable |
|||
|
#15
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Unavailable |
|||
|
#16
SCREW
09128-06013
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, ARROSTOR
14843-38600
|
$3.95 | ||
|
Unavailable |
|||
|
#18
DAMPER,MUFFLER,
14772-30500
Superseded by 14772-30501
|
$2.87 | ||
|
Unavailable |
|||
|
#19
SPACER,8.5X12X1
09180-08048
Superseded by 09180-08302
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (8.5X22X2)
09160-08007
Superseded by 09160-08127
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION
09320-14006
Superseded by 14761-03450
|
$1.82 | ||
|
Unavailable |
|||
|
#24
SPACER,8.5X14X9
09180-08075
Superseded by 09180-08200
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (8.5X26X1.6)
09160-08005
Superseded by 09160-08134
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#27
BOLT
01107-08258
Superseded by 01500-08257
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION
09320-14006
Superseded by 14761-03450
|
$1.82 | ||
|
Unavailable |
|||
|
#29
SPACER, TAIL COVER RR RR
09180-08050
Superseded by 09180-08199
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01107-08258
Superseded by 01500-08257
|
$2.65 | ||
|
Unavailable |
|||
|
#31
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#32
WASHER (8.5X26X1.6)
09160-08005
Superseded by 09160-08134
|
$2.15 | ||
|
Unavailable |
|||
|
#33
COVER, MUFFLER
14781-48000
|
$22.83 | ||
|
Available to order. Add to View Price |
|||
