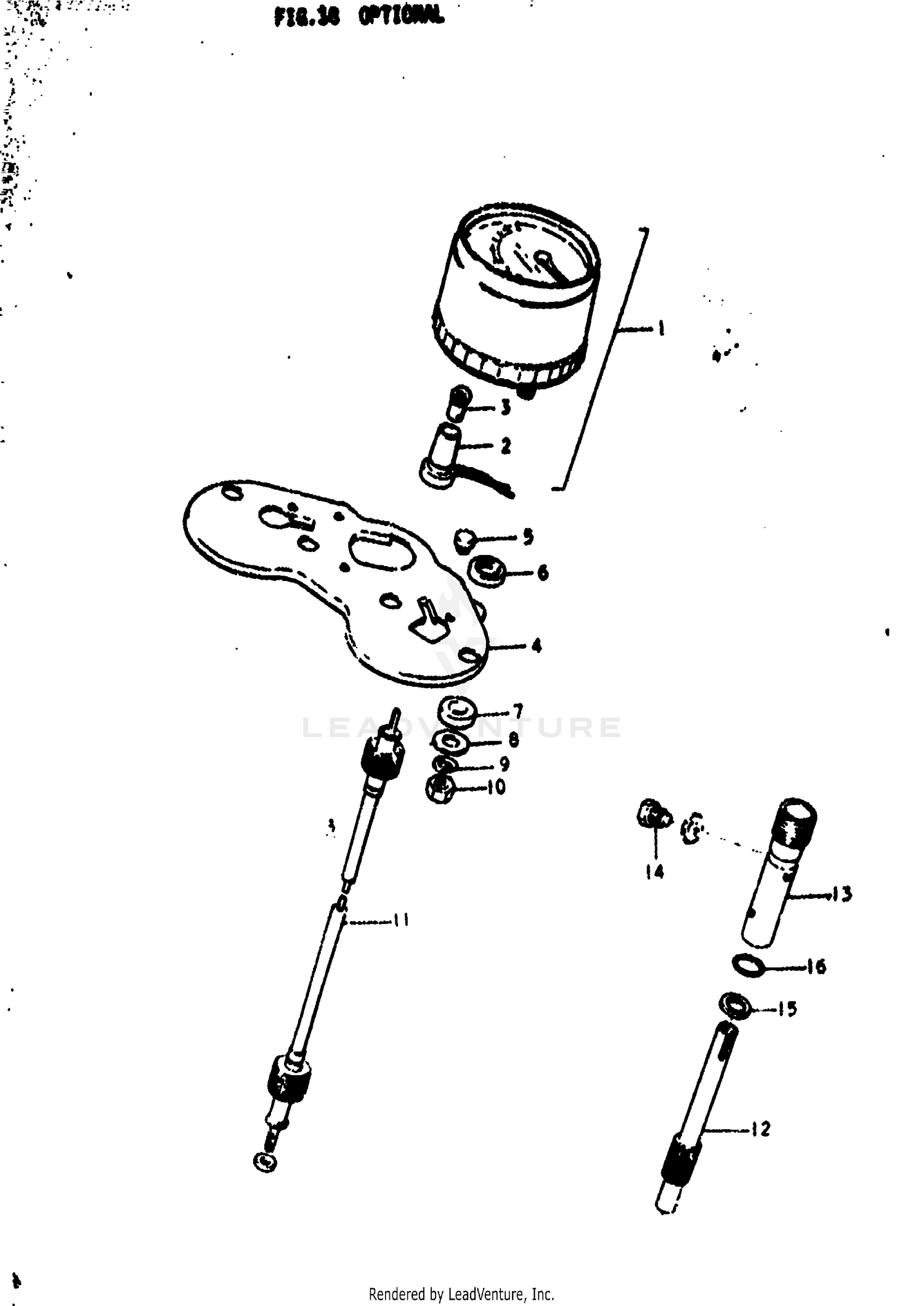

Optional Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TACHOMETER ASSY
34200-25012-999
|
|||
|
Unavailable |
|||
|
#2
SOCKET ASSY
34270-25012
|
|||
|
Unavailable |
|||
|
#3
BULB
09471-06002
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, METER
34950-25310
|
|||
|
Unavailable |
|||
|
#5
CUSHION, TACHOMETER REAR
34957-05100
|
|||
|
Unavailable |
|||
|
#6
CUSHION, TEACHOMETER UPPER
34955-20000
|
$2.42 | ||
|
Unavailable |
|||
|
#7
CUSHION
09320-08004
Superseded by 09320-08010
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-05024
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NUT
08311-11058
Superseded by 08310-00057
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE, TACHOMETER
34940-25030
|
|||
|
Unavailable |
|||
|
#12
GEAR, TACHOMETER DRIVEN
26431-25000
|
$9.46 | ||
|
Unavailable |
|||
|
#13
SLEEVE, DRIVEN GEAR
26441-25000
|
$8.36 | ||
|
Unavailable |
|||
|
#14
BOLT
09135-06009
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-08003
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING
09280-10001
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
